L250AETO (2005)
CYLINDER & CRANKCASE 2

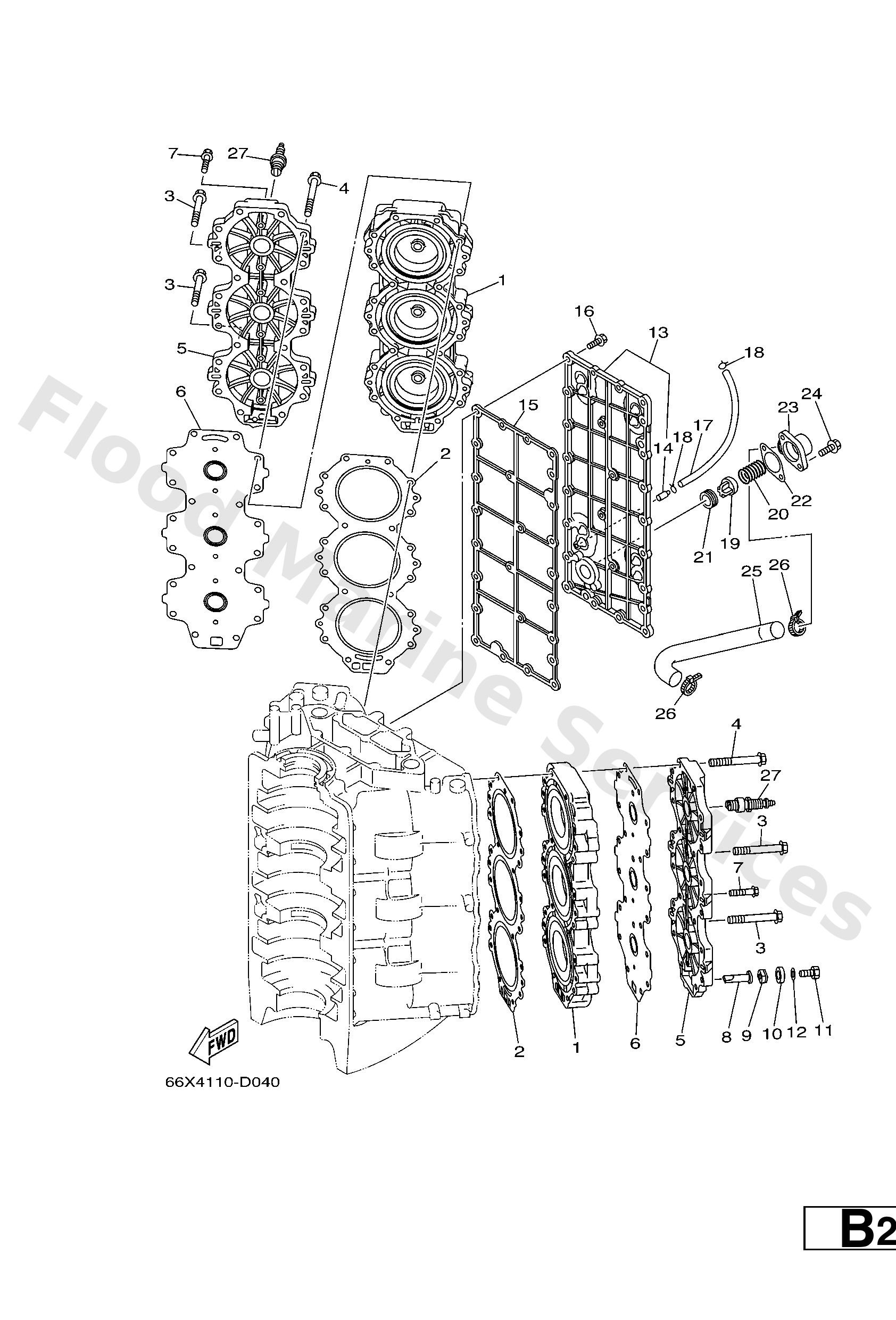

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
62J11111011S
Head, cylinder 1
Loading…
↗
2
69L1118100
Gasket, cylinder head 1
Loading…
↗
3
9011908MA5
Bolt, with washer
Loading…
↗
4
9011908M99
Bolt, with washer
Loading…
↗
5
61A11191001S
Cover, cylinder head 1
Loading…
↗
6
61A11193A1
Gasket, head cover 1
Loading…
↗
7
9011906MA5
Bolt, with washer
Loading…
↗
8
6J81132500
Anode
Loading…
↗
9
6H31132800
Grommet, anode
Loading…
↗
10
6H311327001S
Cover, anode
Loading…
↗
11
9701306016
Bolt, hexagon deep recess
Loading…
↗
12
9290306600
Washer, plain (646)
Loading…
↗
13
61A41113001S
Outer cover, exhaust
Loading…
↗
14
6502437800
Pipe, joint 2
Loading…
↗
15
61A41112A1
Gasket, exhaust inner cover
Loading…
↗
16
9011906MA3
Bolt, with washer
Loading…
↗
17
61A2431200
Pipe 2
Loading…
↗
18
9046708004
Clip, pipe 6162435600
Loading…
↗
19
60H1241600
Valve, pressure control
Loading…
↗
20
9050116M11
Spring, compression (688)
Loading…
↗
21
9048020M05
Grommet (688)
Loading…
↗
22
6G511382A1
Gasket 2
Loading…
↗
23
6G511372001S
Cover, bypass 2
Loading…
↗
24
9011906MA2
Bolt, with washer
Loading…
↗
25
61A1257600
Hose 1
Loading…
↗
26
9046513M18
Clamp
Loading…
↗
27
9470200247
Plug, spark (br8hs-10)
Loading…
↗
