F150CC (2025)
CYLINDER & CRANKCASE 3

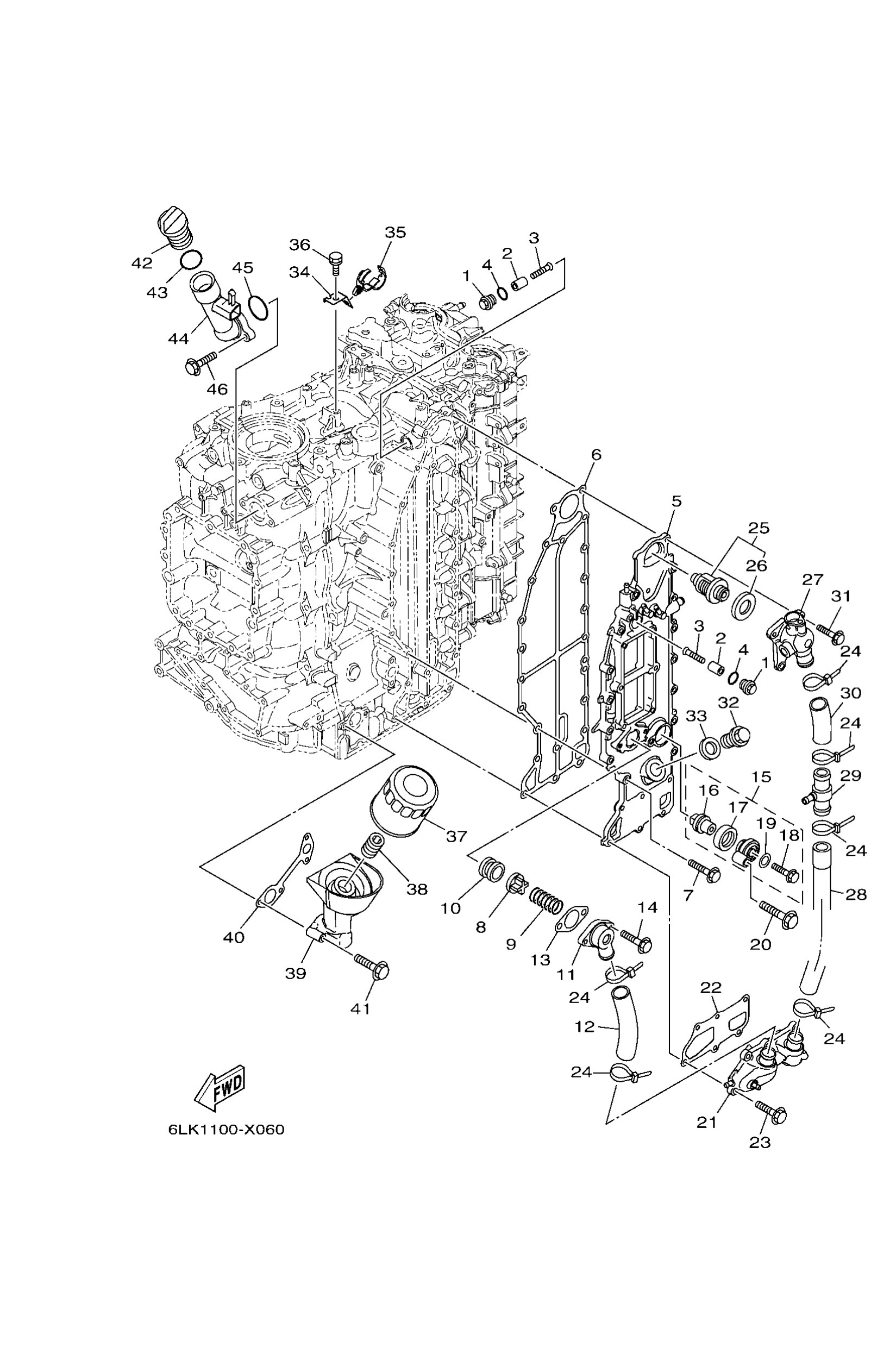

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
6G811197B0
Plug, blind
Loading…
↗
2
68T1132500
Anode
Loading…
↗
3
9015105M05
Screw, countersunk
Loading…
↗
4
9321013M63
O-ring (6g8)
Loading…
↗
5
6DA41113009S
Outer cover, exhaust
Loading…
↗
6
6DA4111401
Gasket, exhaust outer cover
Loading…
↗
7
9010506028
Bolt, washer based
Loading…
↗
8
60H1241600
Valve, pressure control
Loading…
↗
9
9050116M11
Spring, compression (688)
Loading…
↗
10
9048020M05
Grommet (688)
Loading…
↗
11
6G51137200
Cover, bypass 2
Loading…
↗
12
6DA1243A00
Hose 1
Loading…
↗
13
60V11382A0
Gasket 2
Loading…
↗
14
9011906MA3
Bolt, with washer
Loading…
↗
15
69J1130102
Anode cover assembly
Loading…
↗
16
6ML1132500
Anode
Loading…
↗
17
67F1132801
Grommet, anode
Loading…
↗
18
9010506M07
Bolt (689)
Loading…
↗
19
9043006M03
Gasket (6f5)
Loading…
↗
20
97E7508540
Bolt, hexagon w/w deep recess
Loading…
↗
21
6DA12527009S
Cover, water by-pass
Loading…
↗
22
6DA1138101
Gasket 1
Loading…
↗
24
9046511M59
Clamp(63m)
Loading…
↗
25
6DA1241101
Thermostat
Loading…
↗
26
6AW1241200
Seal, thermostat
Loading…
↗
27
6DA12413B09S
Cover, Thermostat
Loading…
↗
28
6DA1243E00
Hose 2
Loading…
↗
29
6CE2437800
Pipe, joint 3
Loading…
↗
30
6DA1244H00
Hose 5
Loading…
↗
32
9034018M09
Plug, straight screw
Loading…
↗
33
90201186F1
Washer, plate (22f)
Loading…
↗
34
6DA1249100
Clamp 1
Loading…
↗
35
9046420181
Clamp(4ap)
Loading…
↗
36
9011906078
Bolt, with washer
Loading…
↗
37
69J1344005
Element assembly, oil cleaner
Loading…
↗
38
6S51285800
Bolt, union
Loading…
↗
39
6DA1344601
Connector
Loading…
↗
40
6DA1347500
Gasket
Loading…
↗
41
9010506151
Bolt, flange
Loading…
↗
42
6G81536300
Plug, oil
Loading…
↗
43
9321024M79
O-ring
Loading…
↗
44
6DA1531900
Joint
Loading…
↗
45
93210357A3
O-ring
Loading…
↗
46
9010506037
Bolt, flange
Loading…
↗
