F150FET (2023)
CYLINDER & CRANKCASE 3

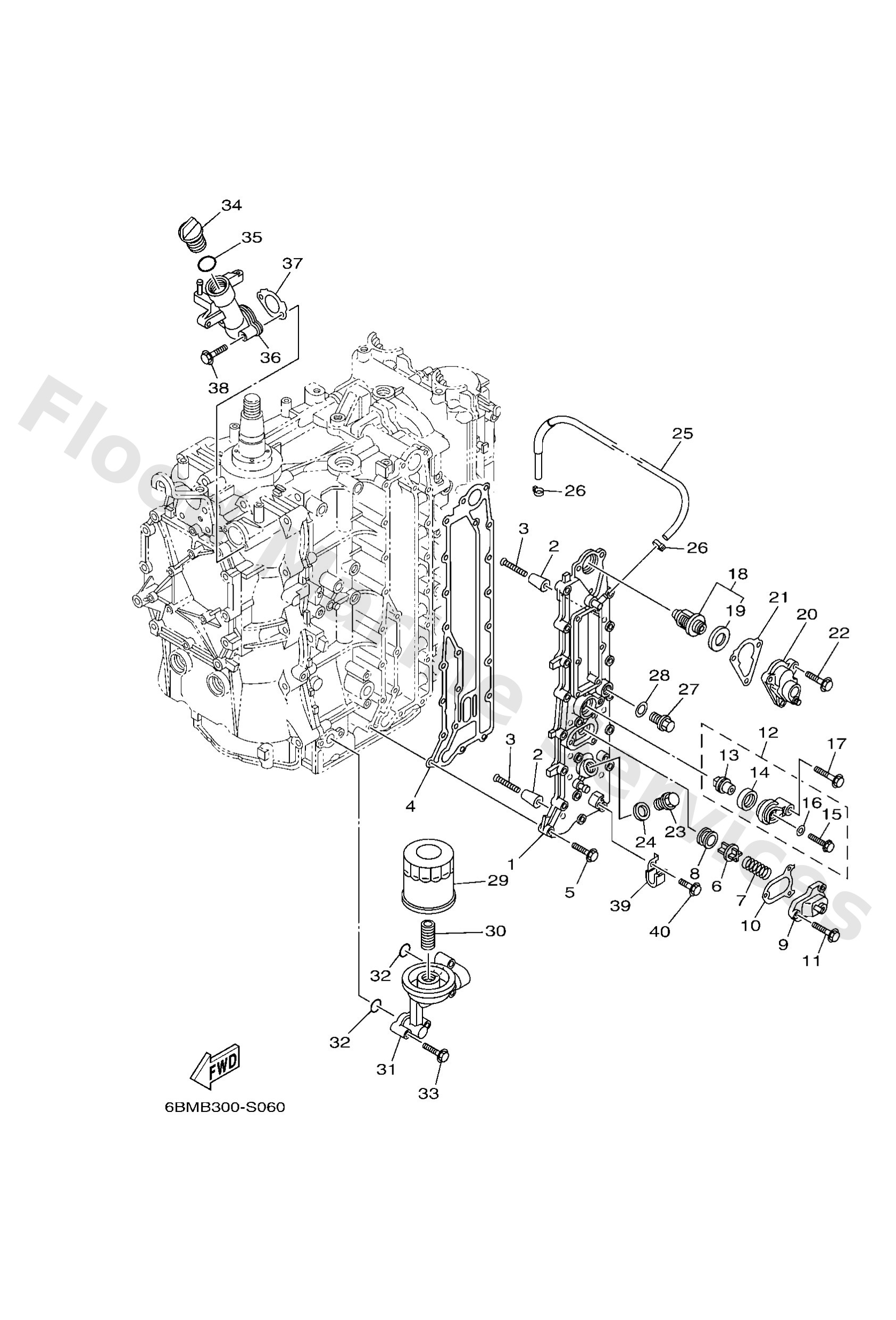

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
63P41113049S
Outer cover, exhaust
Loading…
↗
2
68T1132500
Anode
Loading…
↗
3
9015105M05
Screw, countersunk
Loading…
↗
4
63P41114A3
Gasket, exhaust outer cover
Loading…
↗
5
9011906MA4
Bolt, with washer
Loading…
↗
6
6G51241600
Valve, pressure control
Loading…
↗
7
9050116M11
Spring, compression (688)
Loading…
↗
8
9048020M05
Grommet (688)
Loading…
↗
9
67F1246AA09S
Cover 1
Loading…
↗
10
67F12435A0
Gasket
Loading…
↗
11
9011906MA2
Bolt, with washer
Loading…
↗
12
69J1130101
Anode cover assembly
Loading…
↗
13
67F1132501
Anode
Loading…
↗
14
67F1132801
Grommet, anode
Loading…
↗
15
9010506M07
Bolt (689)
Loading…
↗
16
9043006M03
Gasket (6f5)
Loading…
↗
17
97E7508540
Bolt, hexagon w/w deep recess
Loading…
↗
18
67F1241101
Thermostat
Loading…
↗
19
67F1241200
Seal, thermostat
Loading…
↗
20
63P1240H019S
Cover assembly
Loading…
↗
21
63P1241400
Gasket, cover
Loading…
↗
23
9034018M09
Plug, straight screw
Loading…
↗
24
90201186F1
Washer, plate (22f)
Loading…
↗
25
63P1243A00
Hose 1
Loading…
↗
26
9046511M10
Clamp
Loading…
↗
27
9034014M06
Plug, straight screw(62y)
Loading…
↗
28
9043014115
Gasket (663)
Loading…
↗
29
69J1344004
Element assembly, oil cleaner
Loading…
↗
30
6S51285800
Bolt, union
Loading…
↗
31
63P1344601
Connector
Loading…
↗
32
9321019MJ1
O-ring
Loading…
↗
33
97E7506540
Bolt, hexagon w/w deep recess
Loading…
↗
34
6G81536300
Plug, oil
Loading…
↗
35
9321024M79
O-ring
Loading…
↗
36
63P15319009S
Joint
Loading…
↗
37
63P15364A0
Gasket, oil plug
Loading…
↗
38
97E9506545
Bolt, hexagon w/w deep recess
Loading…
↗
39
9046206013
Clamp
Loading…
↗
40
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
