F200FET (2013)
CYLINDER & CRANKCASE 3

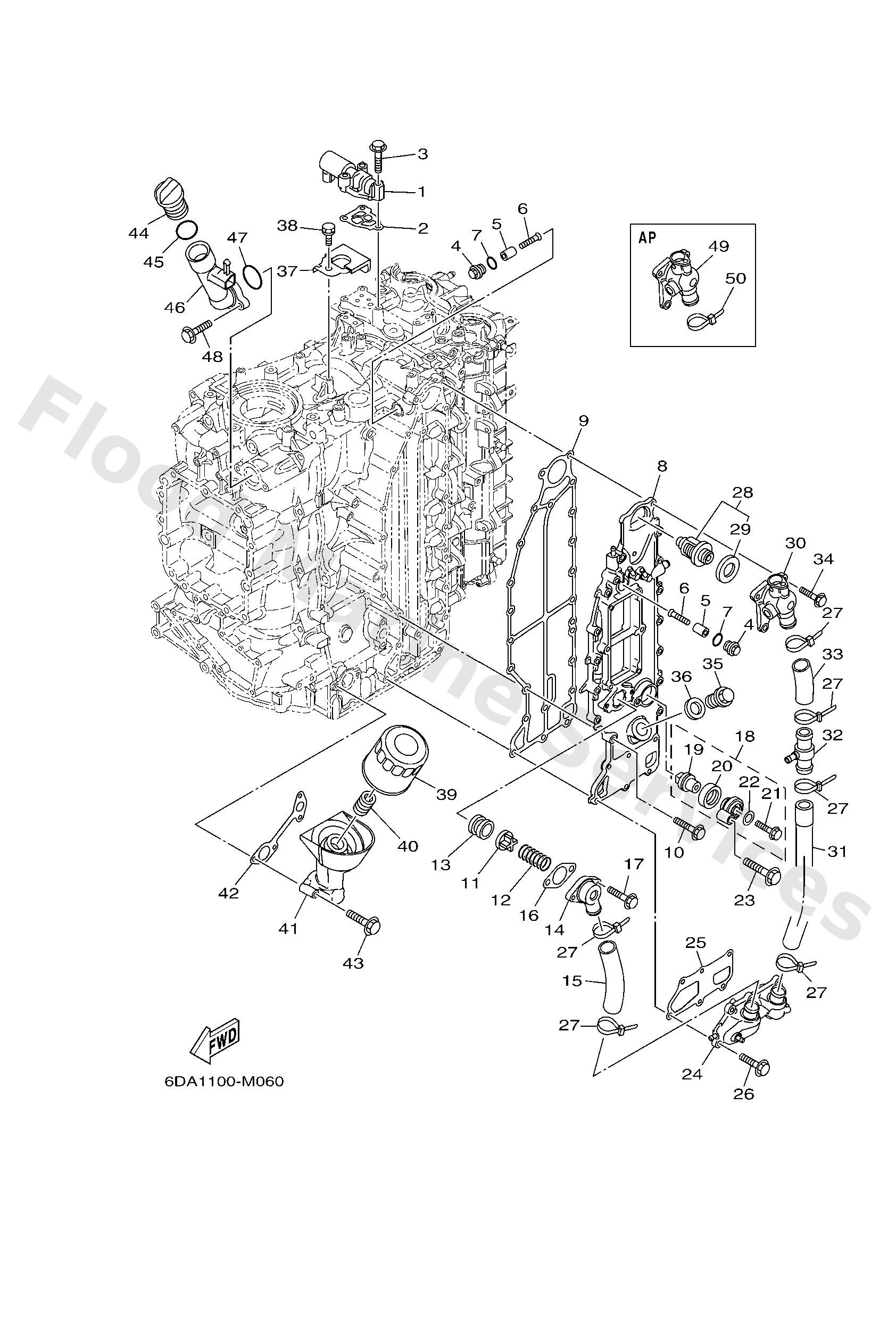

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
6CB8612000
Solenoid valve assembly
Loading…
↗
2
6CB1242F00
Gasket, filter
Loading…
↗
3
9010506035
Bolt, flange
Loading…
↗
4
6G81119701
Plug, blind
Loading…
↗
5
68T1132500
Anode
Loading…
↗
6
9015105M05
Screw, countersunk
Loading…
↗
7
9321013M63
O-ring (6g8)
Loading…
↗
8
6DA41113009S
Outer cover, exhaust
Loading…
↗
9
6DA4111400
Gasket, exhaust outer cover
Loading…
↗
10
9010506028
Bolt, washer based
Loading…
↗
11
60H1241600
Valve, pressure control
Loading…
↗
12
9050116M11
Spring, compression (688)
Loading…
↗
13
9048020M05
Grommet (688)
Loading…
↗
14
6G51137200
Cover, bypass 2
Loading…
↗
15
6DA1243A00
Hose 1
Loading…
↗
16
60V11382A0
Gasket 2
Loading…
↗
17
9011906MA3
Bolt, with washer
Loading…
↗
18
69J1130100
Anode cover assembly
Loading…
↗
19
67F1132501
Anode
Loading…
↗
20
67F1132800
Grommet, anode
Loading…
↗
21
9010506M07
Bolt (689)
Loading…
↗
22
9043006M03
Gasket (6f5)
Loading…
↗
23
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
24
6DA12527009S
Cover, water by-pass
Loading…
↗
25
6DA1138100
Gasket 1
Loading…
↗
50
9046511M59
AP
Clamp(63m)
Loading…
↗
28
6DA1241100
Thermostat
Loading…
↗
29
6AW1241200
Seal, thermostat
Loading…
↗
30
6DA12413009S
Cover, thermostat
Loading…
↗
31
6DA1243E00
Hose 2
Loading…
↗
32
6CE2437800
Pipe, joint 3
Loading…
↗
33
6DA1244H00
Hose 5
Loading…
↗
35
9034018M09
Plug, straight screw
Loading…
↗
36
9043018130
Gasket (1j7)
Loading…
↗
37
6P21249100
Clamp 1
Loading…
↗
38
9011906078
Bolt, with washer
Loading…
↗
39
69J1344001
Element assembly, oil cleaner
Loading…
↗
40
6S51285800
Bolt, union
Loading…
↗
41
6DA1344600
Connector
Loading…
↗
42
6DA1347500
Gasket
Loading…
↗
43
9010506151
Bolt, flange
Loading…
↗
44
6G81536300
Plug, oil
Loading…
↗
45
9321024M79
O-ring
Loading…
↗
46
6DA1531900
Joint
Loading…
↗
47
93210357A3
O-ring
Loading…
↗
48
9010506037
Bolt, flange
Loading…
↗
49
6DA1241B009S
AP
Cover, thermostat 2
Loading…
↗
