F250AET (2013)
CYLINDER & CRANKCASE 3

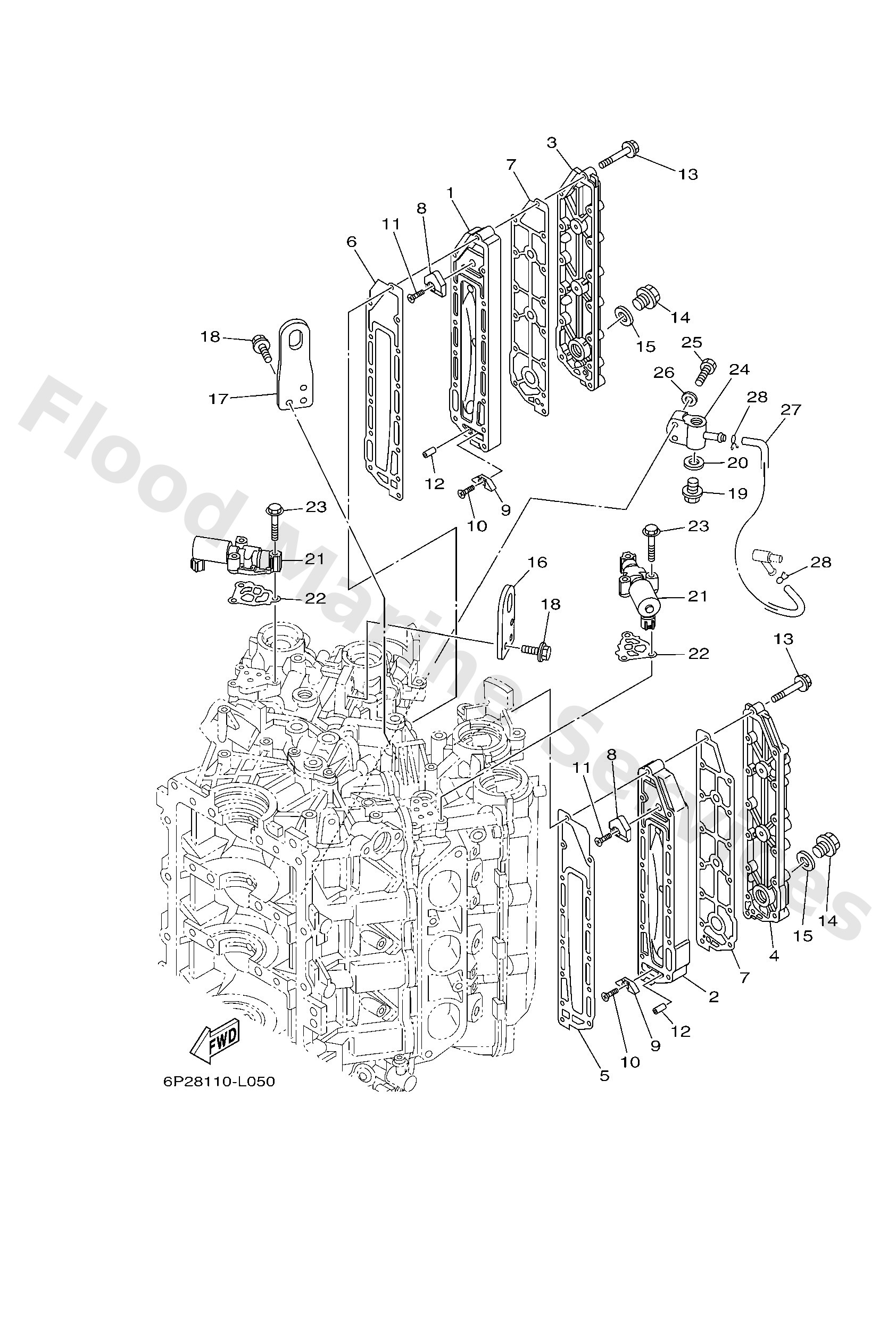

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
69J41111019S
Inner cover, exhaust
Loading…
↗
2
69J41121019S
Inner cover,exhaust
Loading…
↗
3
69J41113029S
Outer cover, exhaust
Loading…
↗
4
69J41123029S
Outer cover, exhaust
Loading…
↗
5
6P24111200
Gasket, exhaust inner cover
Loading…
↗
6
6P24112200
Gasket, exhaust inner cover
Loading…
↗
7
6P24111400
Gasket, exhaust outer cover
Loading…
↗
8
6P21132500
Anode
Loading…
↗
9
6E51132500
Anode
Loading…
↗
10
9878004015
Screw, flat head(ga5)
Loading…
↗
11
9015106M02
Screw, countersunk
Loading…
↗
12
9169040010
Pin, spring
Loading…
↗
13
9011906027
Bolt, with washer
Loading…
↗
14
9034018M09
Plug, straight screw
Loading…
↗
15
9043018130
Gasket (1j7)
Loading…
↗
16
6P21111900
Hanger, engine
Loading…
↗
17
6P21111E00
Hanger, engine 2
Loading…
↗
18
9010506M09
Bolt, flange
Loading…
↗
19
9034014M06
Plug, straight screw(62y)
Loading…
↗
20
9043014115
Gasket (663)
Loading…
↗
21
6CB8612000
Solenoid valve assembly
Loading…
↗
22
6CB1242F00
Gasket, filter
Loading…
↗
23
9010506035
Bolt, flange
Loading…
↗
24
6P28365200
Connector
Loading…
↗
25
9709506030
Bolt(jf7)
Loading…
↗
26
9299506600
Washer, plain (646)
Loading…
↗
27
6H42431100
Pipe 1
Loading…
↗
28
9046708M18
Clip
Loading…
↗
