Yamaha Outboard Parts - CYLINDER & CRANKCASE 3 - F250NSB2 (2023) | Flood Marine

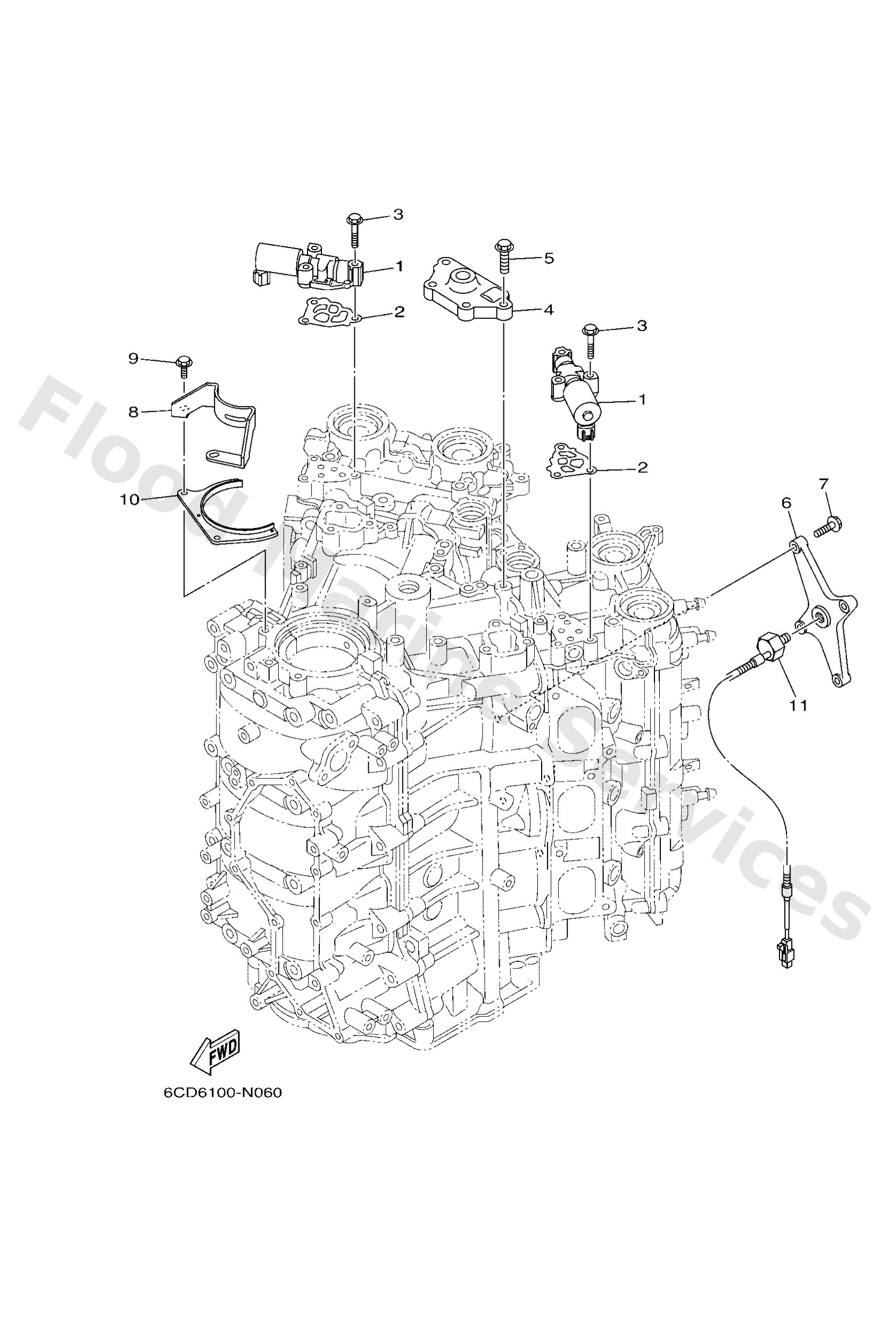

Diagram: CYLINDER & CRANKCASE 3

Diagram

Parts List

Reference
Description
Price


1
6CB8612000
Solenoid valve assembly
Loading…

↗
2
6CB1242F00
Gasket, filter
Loading…

↗
3
9010506035
Bolt, flange
Loading…

↗
4
6CB1554400
Stay 1
Loading…

↗
5
9010508178
Bolt, flange
Loading…

↗
6
6CB1135A00
Bracket
Loading…

↗
7
9010506037
Bolt, flange
Loading…

↗
8
6CB1514200
Guide 1
Loading…

↗
9
95D9506016
Bolt, flange deep recess
Loading…

↗
10
6CB1149A00
Plate 1
Loading…

↗
11
6P28578001
Sensor, knock
Loading…

↗
