FL150AET (2005)
CYLINDER & CRANKCASE 3

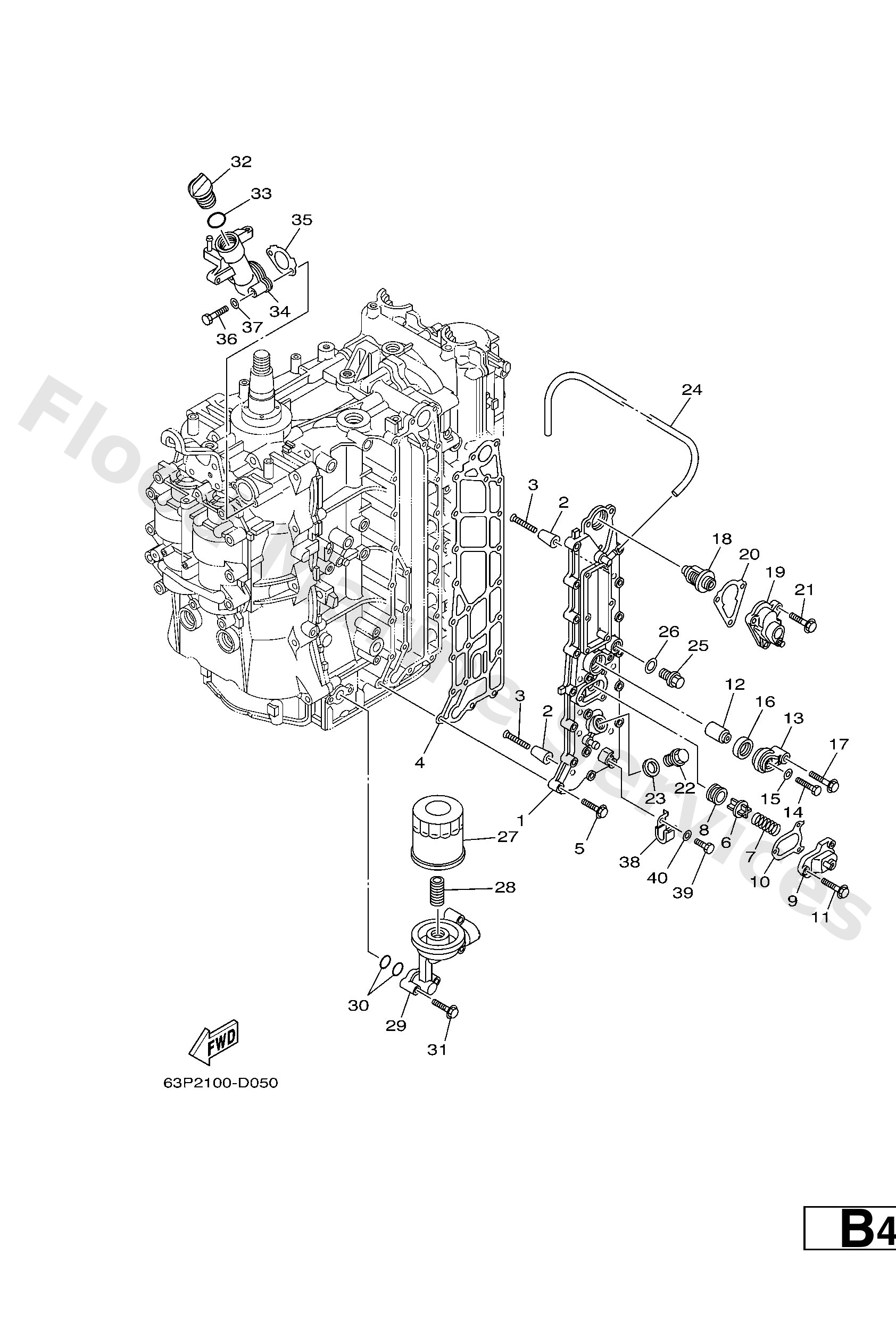

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
63P41113001S
Outer cover, exhaust
Loading…
↗
2
68T1132500
Anode
Loading…
↗
3
9015105M05
Screw, countersunk
Loading…
↗
4
63P41114A1
Gasket, exhaust outer cover
Loading…
↗
5
9011906MA4
Bolt, with washer
Loading…
↗
6
6G51241600
Valve, pressure control
Loading…
↗
7
9050116M11
Spring, compression (688)
Loading…
↗
8
9048020M05
Grommet (688)
Loading…
↗
9
67F1246A001S
Cover 1
Loading…
↗
10
67F12435A0
Gasket
Loading…
↗
11
9011906MA2
Bolt, with washer
Loading…
↗
12
68V1132501
Anode
Loading…
↗
13
69J113270094
Anode cover assembly
Loading…
↗
14
9707506020
Bolt(7u8)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
67F1132800
Grommet, anode
Loading…
↗
17
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
18
67F1241101
Thermostat
Loading…
↗
19
63P1240H001S
Cover assembly
Loading…
↗
20
63P1241400
Gasket, cover
Loading…
↗
22
9034018M09
Plug, straight screw
Loading…
↗
23
9043018130
Gasket (1j7)
Loading…
↗
24
9044510027
Hose (l670)
Loading…
↗
25
9034014M06
Plug, straight screw(62y)
Loading…
↗
26
9043014115
Gasket (663)
Loading…
↗
27
69J1344000
Element assembly, oil cleaner
Loading…
↗
28
69J1285800
Bolt, union
Loading…
↗
29
63P134460094
Connector
Loading…
↗
30
9321019MJ1
O-ring
Loading…
↗
31
9757506540
Bolt, hexagon w/w deep recess
Loading…
↗
32
6G81536300
Plug, oil
Loading…
↗
33
9321024M79
O-ring
Loading…
↗
34
63P15319001S
Joint
Loading…
↗
35
63P15364A0
Gasket, oil plug
Loading…
↗
36
9709506045
Bolt, hexagon
Loading…
↗
38
9046508M99
Clamp
Loading…
↗
39
9709506012
Bolt(gh1)
Loading…
↗
