Yamaha Outboard Parts - CYLINDER & CRANKCASE 3 - FL200AET (2004) | Flood Marine

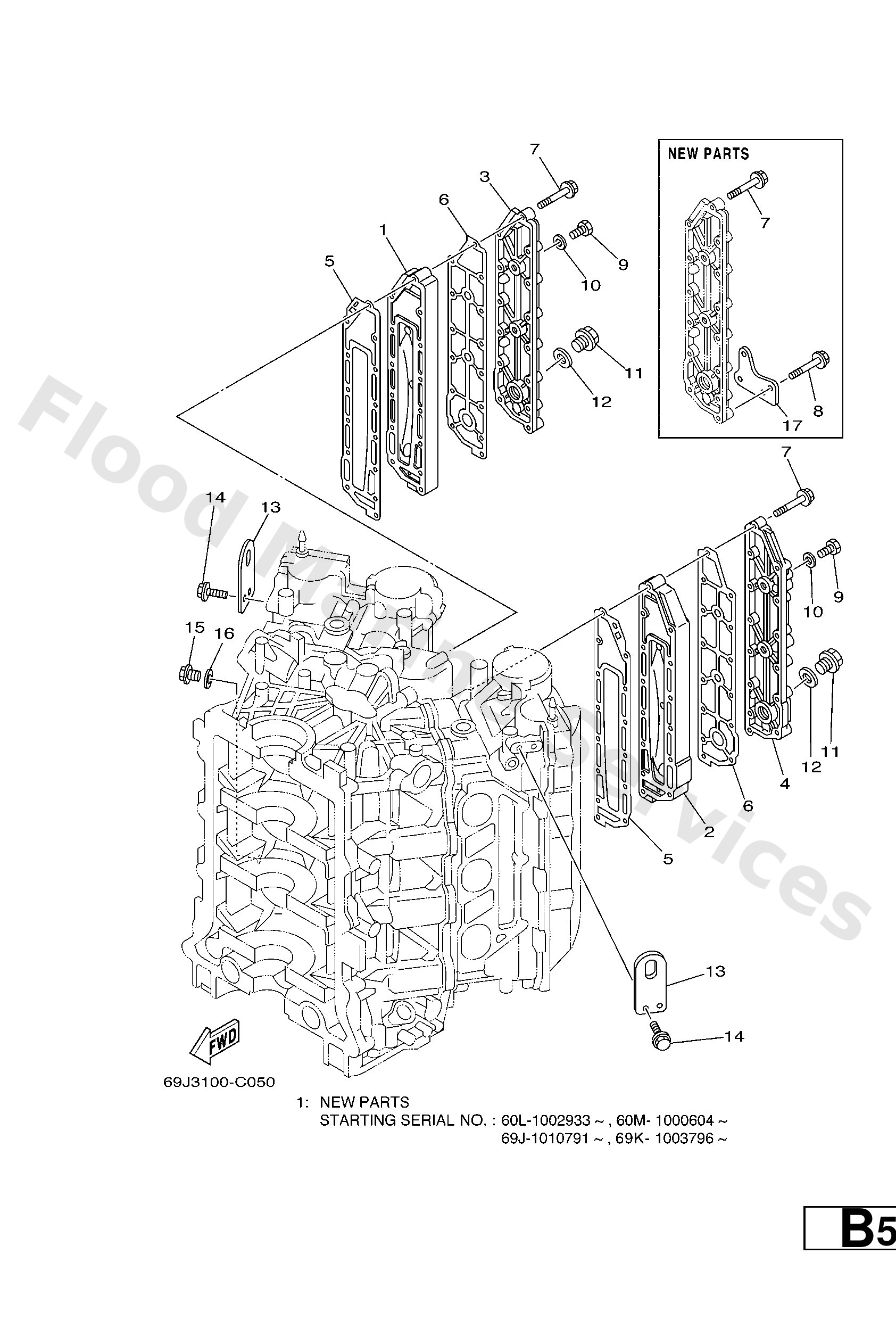

Diagram: CYLINDER & CRANKCASE 3

Diagram

Parts List

Reference
Description
Price


1
69J41111001S
Inner Cover, Exhaust
Loading…

↗
2
69J41121001S
Inner Cover,Exhaust
Loading…

↗
3
69J41113001S
Outer Cover, Exhaust
Loading…

↗
4
69J41123001S
Outer Cover, Exhaust
Loading…

↗
5
69J4111200
Gasket, exhaust inner cover
Loading…

↗
6
69J4111400
Gasket, exhaust outer cover
Loading…

↗
7
9011906027 NEW PARTS *1
Bolt, with washer
Loading…

↗
8
9011906055 NEW PARTS *1
Bolt, with washer
Loading…

↗
9
9709508014
Bolt, hexagon deep recess
Loading…

↗
10
9043008143
Gasket (256-11198-00)
Loading…

↗
11
9034018M09
Plug, straight screw
Loading…

↗
12
9043018130
Gasket (1j7)
Loading…

↗
13
69J1111E00
Hanger, engine 2
Loading…

↗
14
9011906MA2
Bolt, with washer
Loading…

↗
15
9034014M06
Plug, straight screw(62y)
Loading…

↗
16
9043014115
Gasket (663)
Loading…

↗
17
69J2134V00 NEW PARTS *1
Bracket
Loading…

↗
