FL300AET (2008)
CYLINDER & CRANKCASE 3

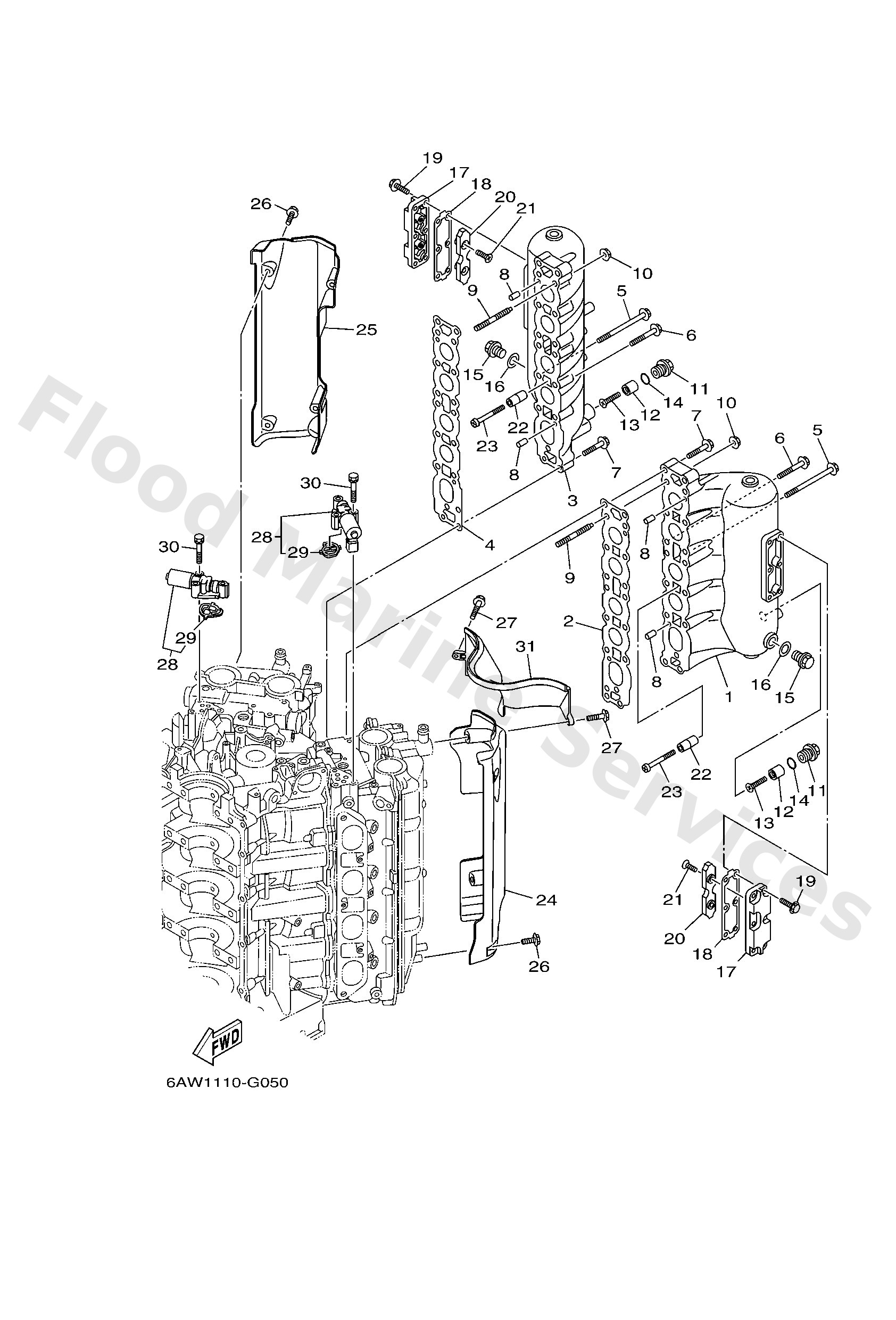

Diagram: CYLINDER & CRANKCASE 3
Parts List
Reference
Description
Price
1
6AW14615009S
Joint, exhaust 1
Loading…
↗
2
6AW1461300
Gasket, exhaust pipe
Loading…
↗
3
6AW14625009S
Joint, exhaust 2
Loading…
↗
4
6AW1462300
Gasket, exhaust pipe
Loading…
↗
5
9010508173
Bolt, flange
Loading…
↗
6
9010508175
Bolt, flange
Loading…
↗
7
9010506151
Bolt, flange
Loading…
↗
8
9360816M16
Pin, dowel(6t4)
Loading…
↗
9
9011608037
Bolt, stud
Loading…
↗
10
9017908M34
Nut
Loading…
↗
11
6AW1119700
Plug, blind
Loading…
↗
12
6AW1132L00
Anode 2
Loading…
↗
13
9878005025
Ybs53-525 screw,flat head
Loading…
↗
14
9321019758
O-ring(m01)
Loading…
↗
15
9034018M09
Plug, straight screw
Loading…
↗
16
9043018130
Gasket (1j7)
Loading…
↗
17
6AW1118A009S
Cover
Loading…
↗
18
6AW1119500
Gasket
Loading…
↗
19
9010506155
Bolt, flange
Loading…
↗
20
6AW1132M00
Anode 3
Loading…
↗
21
9878006020
Screw flat head
Loading…
↗
22
6AW1132N00
Anode set
Loading…
↗
23
9858506050
Screw, pan head
Loading…
↗
24
6AW1118600
Cover, cylinder head side 2
Loading…
↗
25
6AW1118700
Cover, cylinder head side 3
Loading…
↗
26
9011906M92
Bolt, with washer
Loading…
↗
27
9011906199
Bolt, With Washer
Loading…
↗
28
6P28612000
Solenoid valve assembly
Loading…
↗
29
6P21240300
Filter
Loading…
↗
30
9011906MA6
Bolt, with washer
Loading…
↗
31
6AW8553700
Cover
Loading…
↗
