F175A (2023)
CYLINDER & CRANKCASE 4

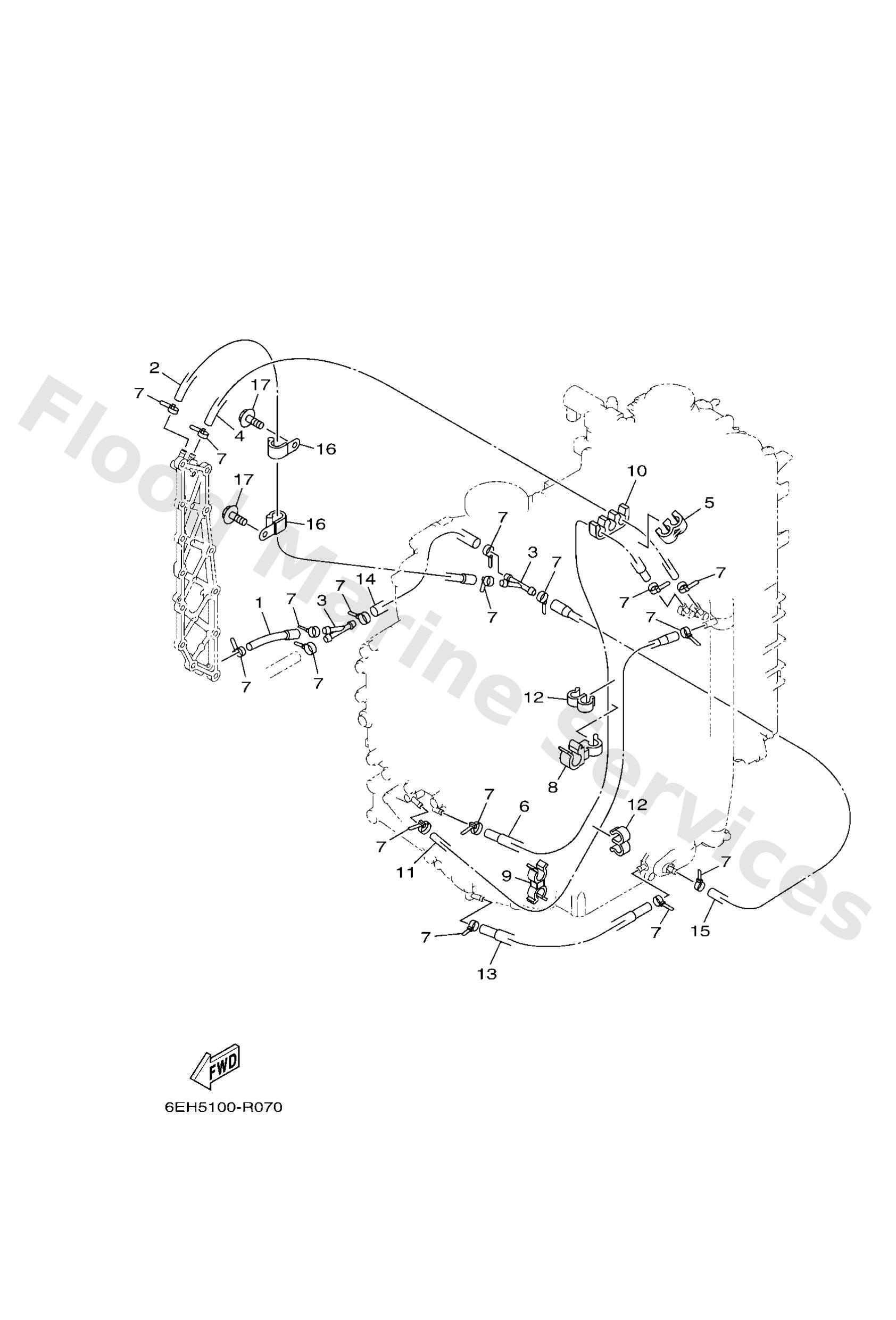

Diagram: CYLINDER & CRANKCASE 4
Parts List
Reference
Description
Price
1
6DA1257600
Hose 1
Loading…
↗
2
6DA1258900
Hose 6
Loading…
↗
3
6CE2437700
Pipe, joint 2
Loading…
↗
4
9044509008
Hose (l580)
Loading…
↗
5
9046409M21
Clamp(6j8)
Loading…
↗
6
6DA1257800
Hose 3
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
9046412010
Clamp
Loading…
↗
9
9046409142
Clamp(3xv)
Loading…
↗
10
9046409020
Clamp
Loading…
↗
11
6DA1257900
Hose 4
Loading…
↗
12
9046409M31
Clamp(6m7)
Loading…
↗
13
6DA1255200
Hose 8
Loading…
↗
14
9044510057
Hose (l170)
Loading…
↗
16
9046508M83
Clamp
Loading…
↗
17
95D9506012
Bolt, flange deep recess
Loading…
↗
