F350AET (2018)
CYLINDER & CRANKCASE 4

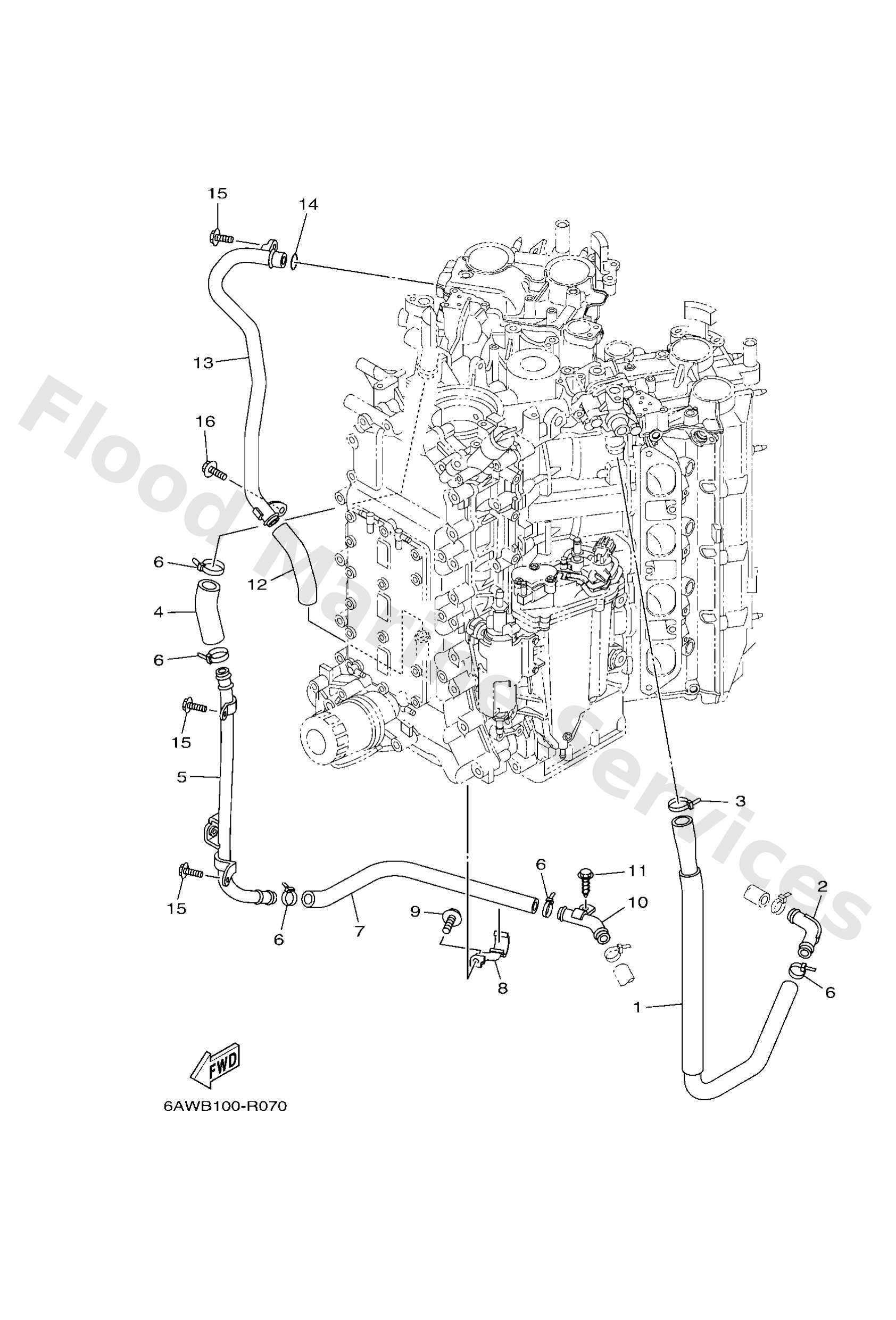

Diagram: CYLINDER & CRANKCASE 4
Parts List
Reference
Description
Price
1
6AW1243A00
Hose 1
Loading…
↗
2
6AW1247700
Pipe 7
Loading…
↗
3
9046511M59
Clamp(63m)
Loading…
↗
4
6AW1243E00
Hose 2
Loading…
↗
5
6AW1248400
Pipe 4
Loading…
↗
7
6AW1244G00
Hose, 4
Loading…
↗
8
6AW1249110
Clamp 1
Loading…
↗
9
9759506514
Bolt(gj3)
Loading…
↗
10
6AW1247600
Pipe 6
Loading…
↗
11
9010906M86
Bolt
Loading…
↗
12
6AW1244J00
Hose 6
Loading…
↗
13
6AW1137800
Hose 2
Loading…
↗
14
93210207A0
O-ring
Loading…
↗
15
9589506014
Bolt, flange deep recess
Loading…
↗
16
9589506010
Bolt, flange(7ht)
Loading…
↗
