F350NSA (2025)
CYLINDER & CRANKCASE 4

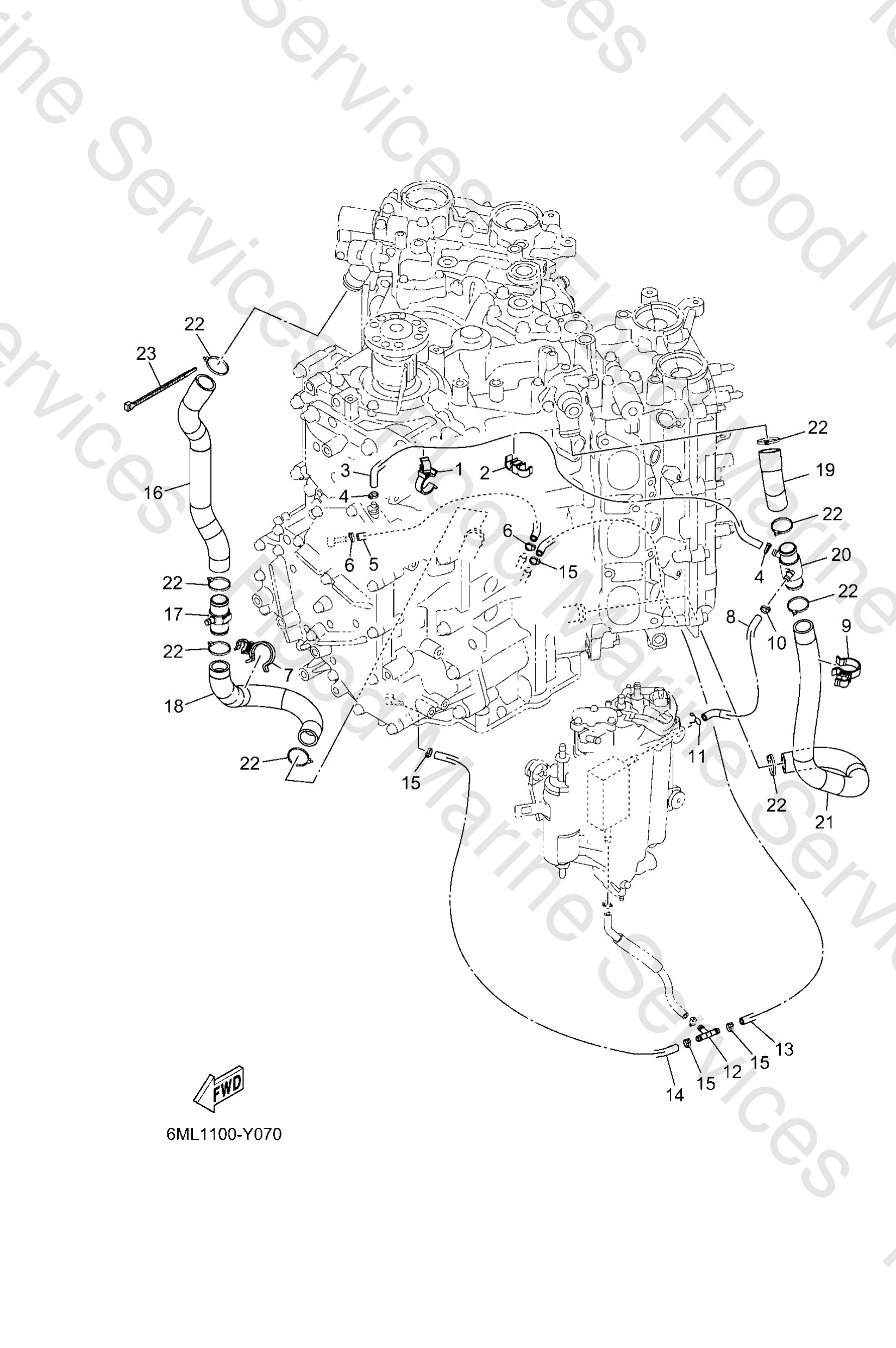

Diagram: CYLINDER & CRANKCASE 4
Parts List
Reference
Description
Price
1
9046423004
Clamp
Loading…
↗
2
9046412010
Clamp
Loading…
↗
3
6ML1257900
Hose 4
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
6CB1257700
Hose 2
Loading…
↗
7
9046426002
Clamp
Loading…
↗
8
6ML1248400
Pipe 4
Loading…
↗
11
9046709M09
Clip(6k8)
Loading…
↗
12
6882437800
Pipe, joint
Loading…
↗
13
9044509120
Hose (l1500)
Loading…
↗
14
90445096H2
Hose (l1500)
Loading…
↗
16
6ML1244G00
Hose, 4
Loading…
↗
17
6CE2437800
Pipe, joint 3
Loading…
↗
18
6CE1244H00
Hose 5
Loading…
↗
19
6ML1244J00
Hose 6
Loading…
↗
20
6ML2437800
Pipe, joint 3
Loading…
↗
21
6ML1243E00
Hose 2
Loading…
↗
22
9046511M59
Clamp(63m)
Loading…
↗
23
9046514M66
Clamp
Loading…
↗
