FL350AET (2011)
CYLINDER & CRANKCASE 4

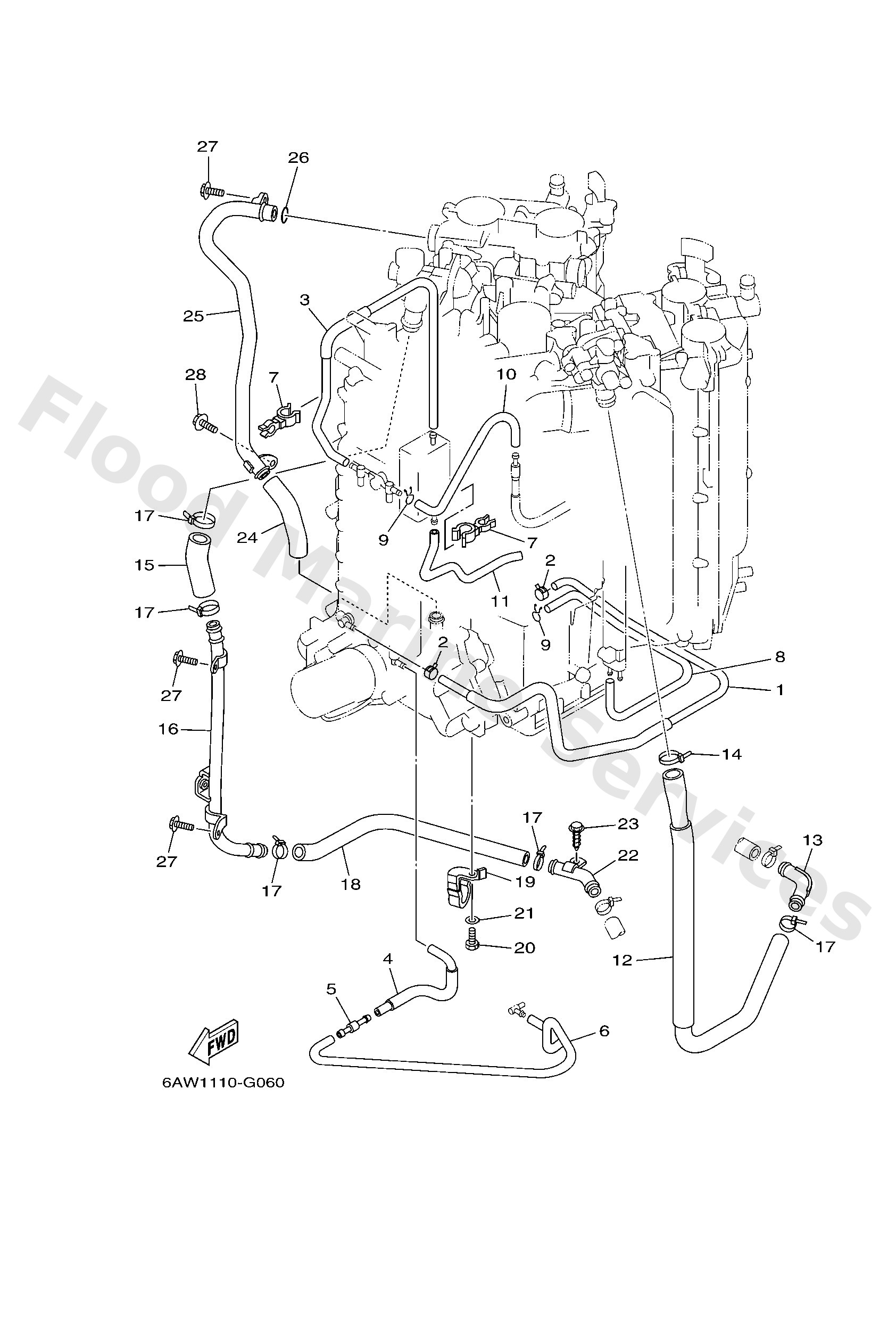

Diagram: CYLINDER & CRANKCASE 4
Parts List
Reference
Description
Price
1
6AW1257600
Hose 1
Loading…
↗
2
9046711136
Clip
Loading…
↗
3
6AW1257700
Hose 2
Loading…
↗
4
6AW1257800
Hose 3
Loading…
↗
5
6E52437900
Pipe, joint 4
Loading…
↗
6
6AW1257900
Hose 4
Loading…
↗
7
9046410010
Clamp
Loading…
↗
8
9044509111
Hose (l1500)
Loading…
↗
9
9046708M10
Clip, pipe 6162435600
Loading…
↗
10
6AW1248300
Pipe 3
Loading…
↗
11
6AW1248200
Pipe 2
Loading…
↗
12
6AW1243A00
Hose 1
Loading…
↗
13
6AW1247700
Pipe 7
Loading…
↗
14
9046511M59
Clamp(63m)
Loading…
↗
15
6AW1243E00
Hose 2
Loading…
↗
16
6AW1248400
Pipe 4
Loading…
↗
18
6AW1244G00
Hose, 4
Loading…
↗
19
6AW1249100
Clamp 1
Loading…
↗
20
9709506014
Bolt(gj3)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6AW1247600
Pipe 6
Loading…
↗
23
9010906M86
Bolt
Loading…
↗
24
6AW1244J00
Hose 6
Loading…
↗
25
6AW1137800
Hose 2
Loading…
↗
26
93210207A0
O-ring
Loading…
↗
27
9588506014
Bolt, flange deep recess
Loading…
↗
28
9588506010
Bolt, flange
Loading…
↗
