XF425NSA2 (2022)
CYLINDER & CRANKCASE 4

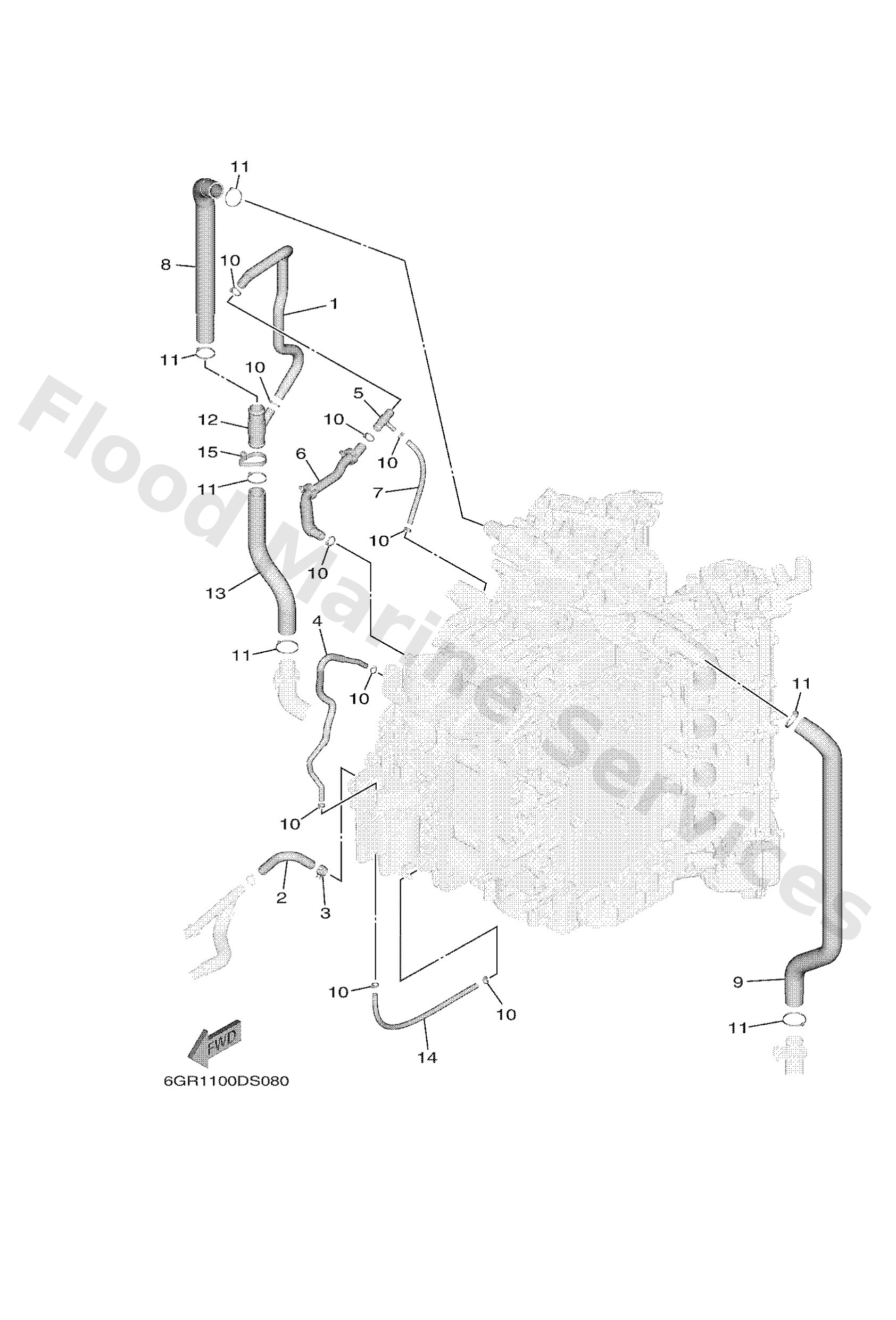

Diagram: CYLINDER & CRANKCASE 4
Parts List
Reference
Description
Price
1
6GR1244J00
Hose 6
Loading…
↗
2
6GR4254100
Pipe 1
Loading…
↗
3
90467150A5
Clip
Loading…
↗
4
9044509048
Hose
Loading…
↗
5
6GR2437600
Pipe, joint 1
Loading…
↗
6
6GR1255100
Hose 7
Loading…
↗
7
9044509M00
Hose (l180)
Loading…
↗
8
6GR1243A00
Hose 1
Loading…
↗
9
6GR1243E00
Hose 2
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
9046511M59
Clamp(63m)
Loading…
↗
12
6GR1259400
Joint, hose 4
Loading…
↗
13
6GR1244H00
Hose 5
Loading…
↗
14
9044509304
Hose (l1500)
Loading…
↗
15
9046513M24
Band, switch cord
Loading…
↗
