Yamaha Outboard Parts - CYLINDER BLOCK - ME730TIL (2006) | Flood Marine

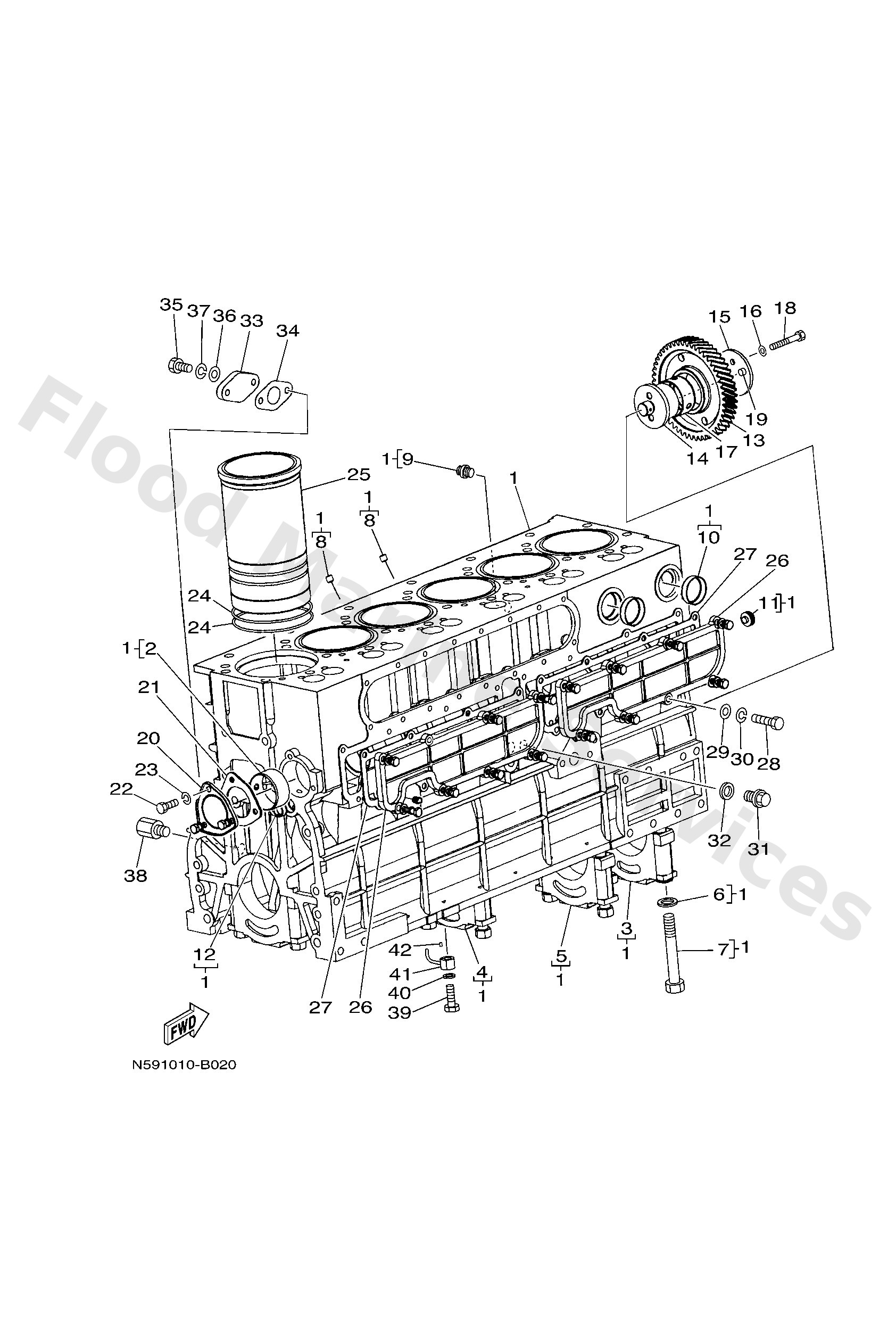

Diagram: CYLINDER BLOCK

Diagram

Parts List

Reference
Description
Price


1
N5911310Y0
2- 1
Loading…

↗
2
N5912179Y0
Bearing, Camshaft 1
Loading…

↗
3
N5911365Y0
2- 3
Loading…

↗
4
N5911366Y0
2- 4
Loading…

↗
5
N5911367Y0
2- 5
Loading…

↗
6
N5914357Y0
Washer
Loading…

↗
7
N595236LY0
Bolt, Main Brg. Cap
Loading…

↗
8
N5911197Y0
2- 8
Loading…

↗
9
N5961949Y0
Plug, Teper Screw 1/8Npt
Loading…

↗
10
N5911159Y0
2- 10
Loading…

↗
11
N5918213Y0
Seal, Plug
Loading…

↗
12
N592244CY0
Rear, Seal Plug
Loading…

↗
13
N5913341Y0
2- 13
Loading…

↗
14
N5913342Y0
2- 14
Loading…

↗
15
N5911916Y0
Plate, Thrust
Loading…

↗
16
N591569500
Washer 1
Loading…

↗
18
N5921739Y0
Bolt M8X55 T=10.9
Loading…

↗
19
N5914862Y0
Plug, Screw M8
Loading…

↗
20
N591131MY0
2- 20
Loading…

↗
21
N591119800
Gasket
Loading…

↗
22
N5924176Y0
Bolt M8X16
Loading…

↗
23
N5914558Y0
Washer, Spring
Loading…

↗
24
N592318800
O-ring
Loading…

↗
25
N591131201
Sleeve, cylinder (b)
Loading…

↗
26
N591111MY0
2- 26
Loading…

↗
27
N591135200
Gasket, cylinder 2
Loading…

↗
28
N5945386Y0
2- 28
Loading…

↗
29
N5912664Y0
Washer, Plain
Loading…

↗
31
N591499100
Screw
Loading…

↗
32
N5913167Y0
Gskt. D14
Loading…

↗
33
N591319K00
Plate
Loading…

↗
34
N591356300
Gasket
Loading…

↗
35
N5944331Y0
Bolt M8X20
Loading…

↗
38
N591252900
Connector 2
Loading…

↗
39
N5917056Y0
2- 39
Loading…

↗
40
N5914G57Y0
Washer, Plain
Loading…

↗
41
N5913454Y0
2- 41
Loading…

↗
42
N5915183Y0
Pin, Dowel B5X10
Loading…

↗
