25BMH (2003)
CYLINDER. CRANKCASE

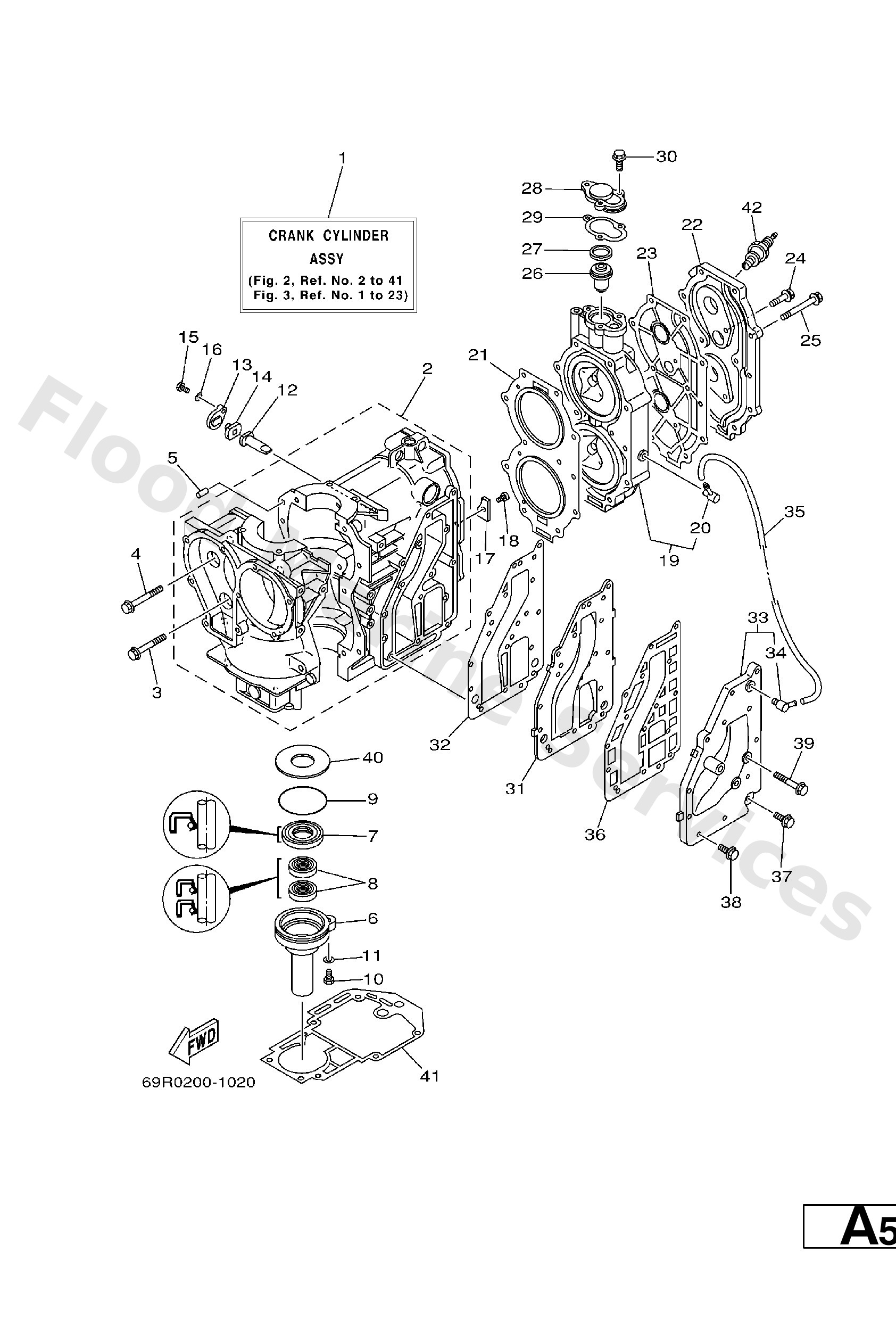

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
90119−08009
Bolt, with washer
Loading…
↗
4
90119−08M65
Bolt, with washer
Loading…
↗
5
93606−12019
Pin, dowel (614)
Loading…
↗
7
93102−25008
Oil seal
Loading…
↗
8
93101−16001
Oil seal
Loading…
↗
9
93210−58M21
O-ring (683)
Loading…
↗
10
97095−06022
Bolt(61k)
Loading…
↗
11
92995−06600
Washer, plain (646)
Loading…
↗
12
6J8−11325−00
Anode
Loading…
↗
14
6H3−11328−00
Grommet, anode
Loading…
↗
15
97013−06016
Bolt, hexagon deep recess
Loading…
↗
16
92903−06600
Washer, plain (646)
Loading…
↗
17
689−11325−00
Anode
Loading…
↗
18
90151−06M02
Screw, countersunk
Loading…
↗
20
676−11372−00
Nipple, hose
Loading…
↗
21
61N−11181−A1
Gasket, cylinder head 1
Loading…
↗
23
61T−11193−A1
Gasket, head cover 1
Loading…
↗
24
90119−06MA2
Bolt, with washer
Loading…
↗
25
90119−08015
Bolt, with washer
Loading…
↗
26
6E5−12411−01
Thermostat
Loading…
↗
27
90201−21567
Washer, plate (650)
Loading…
↗
28
655−12413−01−1S
Cover, thermostat
Loading…
↗
29
655−12414−A1
Gasket, cover
Loading…
↗
31
6K8−41121−00−1S
Inner cover,exhaust
Loading…
↗
32
6K8−41122−A1
Gasket, exhaust inner cover
Loading…
↗
33
61N−41123−00−1S
Outer cover, exhaust
Loading…
↗
35
90445−10M41
Hose (L105)
Loading…
↗
36
6K8−41124−A1
Gasket, exhaust outer cover
Loading…
↗
37
90119−06MA3
Bolt, with washer
Loading…
↗
38
90119−06MA4
Bolt, with washer
Loading…
↗
39
90119−06MA0
Bolt, hexagon w/w deep recess
Loading…
↗
40
90201−50306
Washer plate 648115870000
Loading…
↗
41
689−45113−A1
Gasket, upper casing
Loading…
↗
42
94702−00271
Plug, spark (br7hs-10)
Loading…
↗
