3AMH (2003)
CYLINDER. CRANKCASE

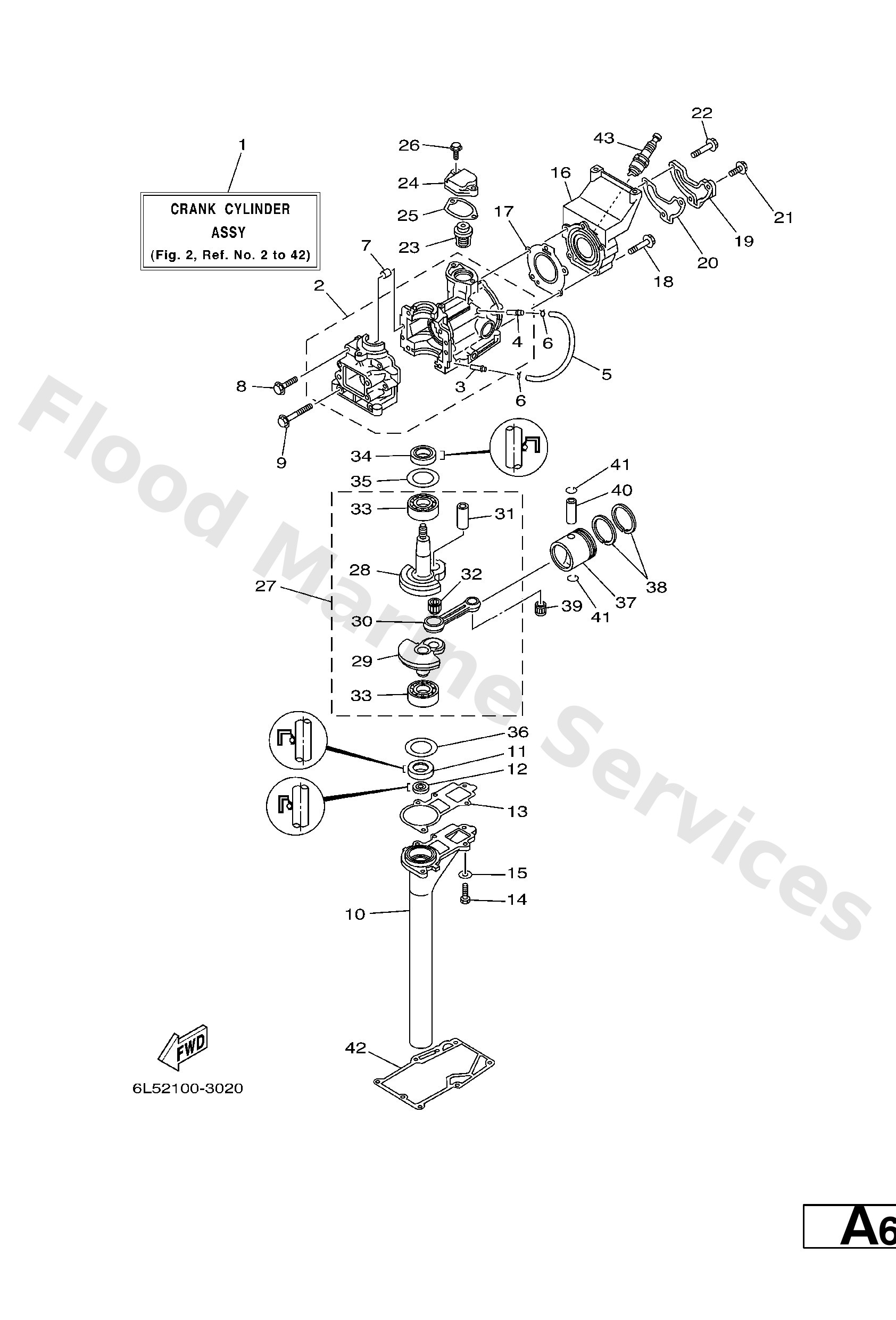

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
624−14485−00
Pipe, joint
Loading…
↗
4
6E5−11372−01
Nipple, hose
Loading…
↗
5
90445−07M29
Hose (l200)
Loading…
↗
6
90467−06016
Clip (655)
Loading…
↗
7
93606−12019
Pin, dowel (614)
Loading…
↗
8
90105−06M16
Bolt (6e0)
Loading…
↗
9
90105−06M40
Bolt, washer based(6l5)
Loading…
↗
11
93101−20M29
Oil seal(6j1)
Loading…
↗
12
93101−09M42
Oil seal(6l5)
Loading…
↗
13
6L5−15369−A0
Gasket, oil seal housing
Loading…
↗
14
97095−06020
Bolt(7u8)
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
17
6L5−11181−A2
Gasket, cylinder head 1
Loading…
↗
18
90119−06047
Bolt, with washer
Loading…
↗
20
6L5−11193−A1
Gasket, head cover
Loading…
↗
21
90119−06MA2
Bolt, with washer
Loading…
↗
22
90119−06027
Bolt, with washer
Loading…
↗
23
6E5−12411−01
Thermostat
Loading…
↗
25
6L5−12414−A1
Gasket, cover
Loading…
↗
27
6L5−11400−00
Crankshaft assembly
Loading…
↗
28
6L5−11412−00
Crank 1
Loading…
↗
29
6L5−11422−00
Crank 2
Loading…
↗
30
6L5−11651−00
Rod, connecting
Loading…
↗
31
6L5−11681−00
Pin, crank 1
Loading…
↗
32
93310−416N7
Brg,needle
Loading…
↗
33
93306−204U0
Bearing(6e0)
Loading…
↗
34
93102−20M06
Oil seal(6j1)
Loading…
↗
35
90201−32M00
Washer, plate(6l5)
Loading…
↗
36
90201−32M01
Washer, plate(6l5)
Loading…
↗
37
6L5−11635−00
AP
Piston (0.25mm o/s)
Loading…
↗
37
6L5−11636−00
AP
Piston (0.50mm o/s)
Loading…
↗
37
6L5−11631−00−96
Piston (std)
Loading…
↗
38
6L5−11610−00
Piston ring set (std)
Loading…
↗
38
6L5−11610−10
AP
Piston ring set (0.25mm o/s)
Loading…
↗
38
6L5−11610−20
AP
Piston ring set (0.50mm o/s)
Loading…
↗
39
93310−112U0
Bearing, cylindrical(6l5)
Loading…
↗
40
6L5−11633−00
Pin, piston
Loading…
↗
41
93450−13022
Circlip 132116340000
Loading…
↗
42
6L5−45113−A1
Gasket, upper casing
Loading…
↗
43
94702−00274
Plug, spark (br6hs-10)
Loading…
↗
