40GWH (2003)
CYLINDER. CRANKCASE

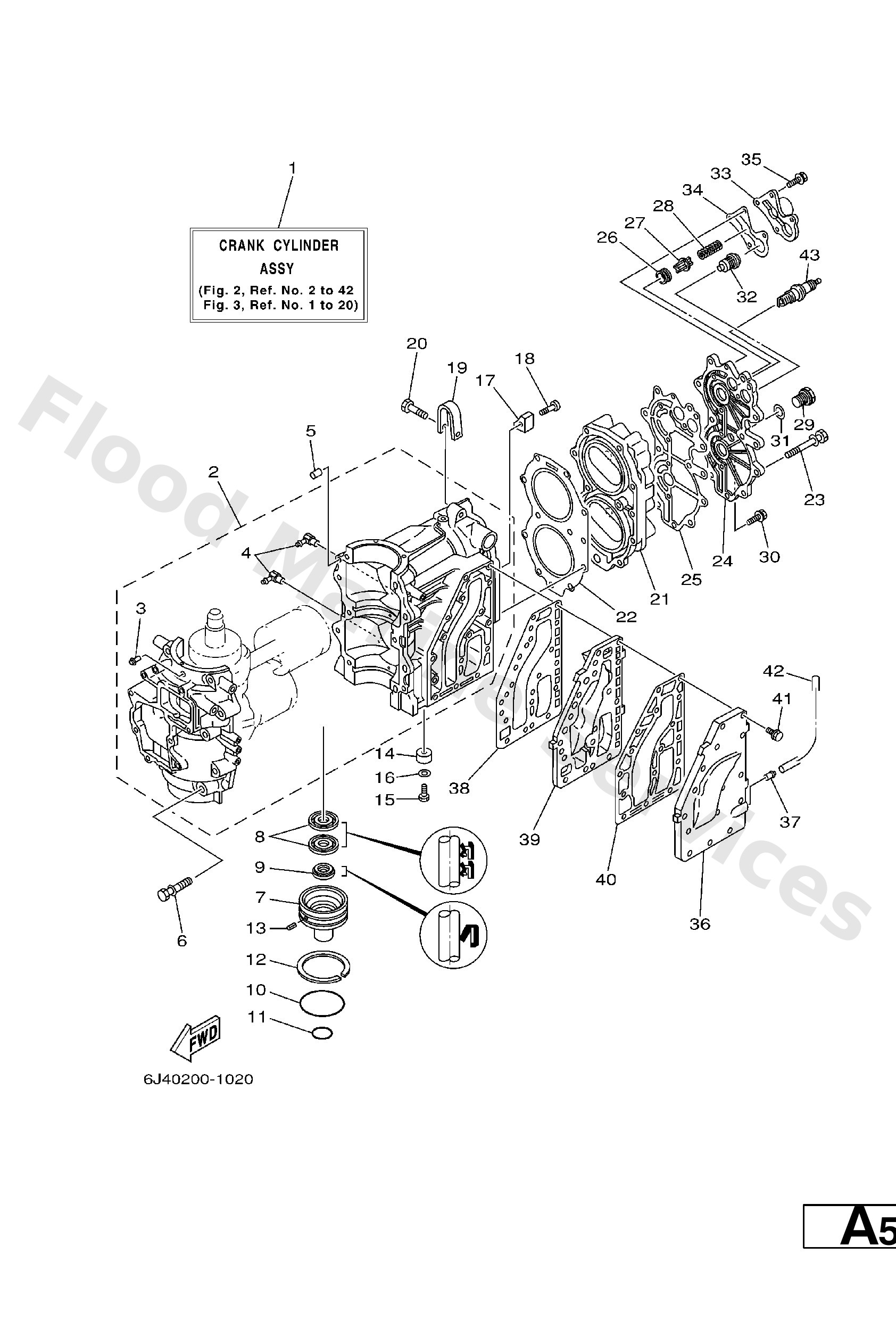

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
624−14485−00
Pipe, joint
Loading…
↗
4
650−11370−01
Check valve assembly
Loading…
↗
5
93608−12063
Pin, dowel (626)
Loading…
↗
6
90119−10005
Bolt, with washer
Loading…
↗
8
93101−30M33
Oil seal(6f5)
Loading…
↗
9
93104−16M01
Oil seal(6a8)
Loading…
↗
10
93210−65M50
O-ring
Loading…
↗
11
93210−22M02
O-ring (676)
Loading…
↗
12
93440−68M03
Circlip (6f5)
Loading…
↗
13
91690−30010
Pin, spring (663)
Loading…
↗
14
676−45251−00
Anode
Loading…
↗
15
97095−06016
Bolt, hexagon deep recess
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
676−11325−00
Anode
Loading…
↗
18
90141−06M00
Screw, countersunk
Loading…
↗
19
6F5−11119−00
Hanger, engine
Loading…
↗
20
90101−08001
Bolt
Loading…
↗
22
6F5−11181−A1
Gasket, cylinder head 1
Loading…
↗
23
90119−08MA5
Bolt, with washer
Loading…
↗
25
6F6−11193−A1
Gasket, head cover 1
Loading…
↗
26
90480−18065
Grommet(663)
Loading…
↗
27
663−12416−00
Valve, pressure control
Loading…
↗
28
90501−14M02
Spring, compression (676)
Loading…
↗
29
90340−14036
Plug, (663)
Loading…
↗
30
90119−06MA3
Bolt, with washer
Loading…
↗
31
90430−14115
Gasket (663)
Loading…
↗
32
6F5−12411−02
Thermostat
Loading…
↗
33
6E9−12413−00−1S
Cover, thermostat
Loading…
↗
34
6E9−12414−A1
Gasket, cover
Loading…
↗
35
90119−06MA4
Bolt, with washer
Loading…
↗
36
6F5−41113−01−1S
Outer cover, exhaust
Loading…
↗
37
650−24378−00
Pipe, joint 2
Loading…
↗
38
6F5−41112−A0
Gasket, exhaust inner cover
Loading…
↗
39
6F5−41111−01−1S
Inner cover, exhaust
Loading…
↗
40
6F5−41114−A0
Gasket, exhaust outer cover
Loading…
↗
42
90445−09M37
Hose (l1500)
Loading…
↗
43
94702−00040
Plug, spark (b7hs)
Loading…
↗
43
94702−00272
40J−FOR CHINA
Plug, spark (br7hs)
Loading…
↗
