40XMH (2003)
CYLINDER. CRANKCASE

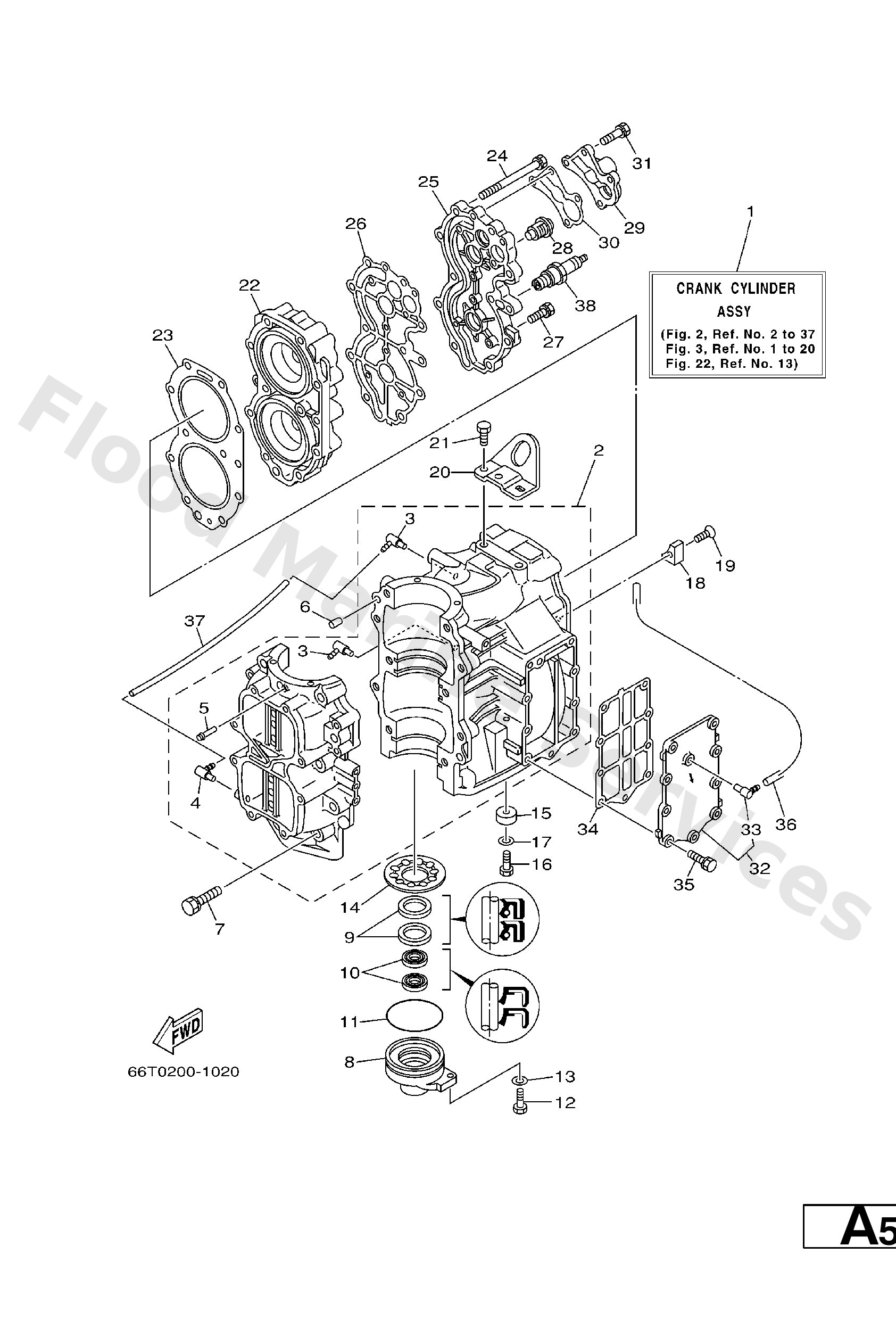

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
6E5−13552−01
Nozzle
Loading…
↗
5
624−14485−00
Pipe, joint
Loading…
↗
6
93608−12063
Pin, dowel (626)
Loading…
↗
7
90119−10005
Bolt, with washer
Loading…
↗
9
93102−30M56
Oil seal
Loading…
↗
10
93101−16001
Oil seal
Loading…
↗
11
93210−65M50
O-ring
Loading…
↗
12
97095−06020
Bolt(7u8)
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
14
66T−11565−00
Washer, bearing cover
Loading…
↗
15
676−45251−00
Anode
Loading…
↗
18
676−11325−00
Anode
Loading…
↗
19
90141−06M00
Screw, countersunk
Loading…
↗
20
66T−11119−00
Hanger, engine
Loading…
↗
21
90101−08002
Bolt
Loading…
↗
23
66T−11181−A2
Gasket, cylinder head 1
Loading…
↗
24
90119−08MA5
Bolt, with washer
Loading…
↗
26
66T−11193−A2
Gasket, head cover 1
Loading…
↗
27
90119−06MA3
Bolt, with washer
Loading…
↗
28
6E5−12411−01
Thermostat
Loading…
↗
29
676−12413−00−1S
Cover, thermostat
Loading…
↗
30
676−12414−A1
Gasket, cover
Loading…
↗
31
90119−06MA5
Bolt, with washer
Loading…
↗
32
66T−41113−00−1S
Outer cover, exhaust
Loading…
↗
33
676−11372−00
Nipple, hose
Loading…
↗
34
66T−41114−A0
Gasket, exhaust outer cover
Loading…
↗
36
90445−09M75
Hose (l1500)
Loading…
↗
37
90445−07M08
Hose (l390)
Loading…
↗
38
94702−00040
Plug, spark (b7hs)
Loading…
↗
38
94702−00272
FOR CARIB,CHINA
Plug, spark (br7hs)
Loading…
↗
