55BET (2002)
CYLINDER. CRANKCASE

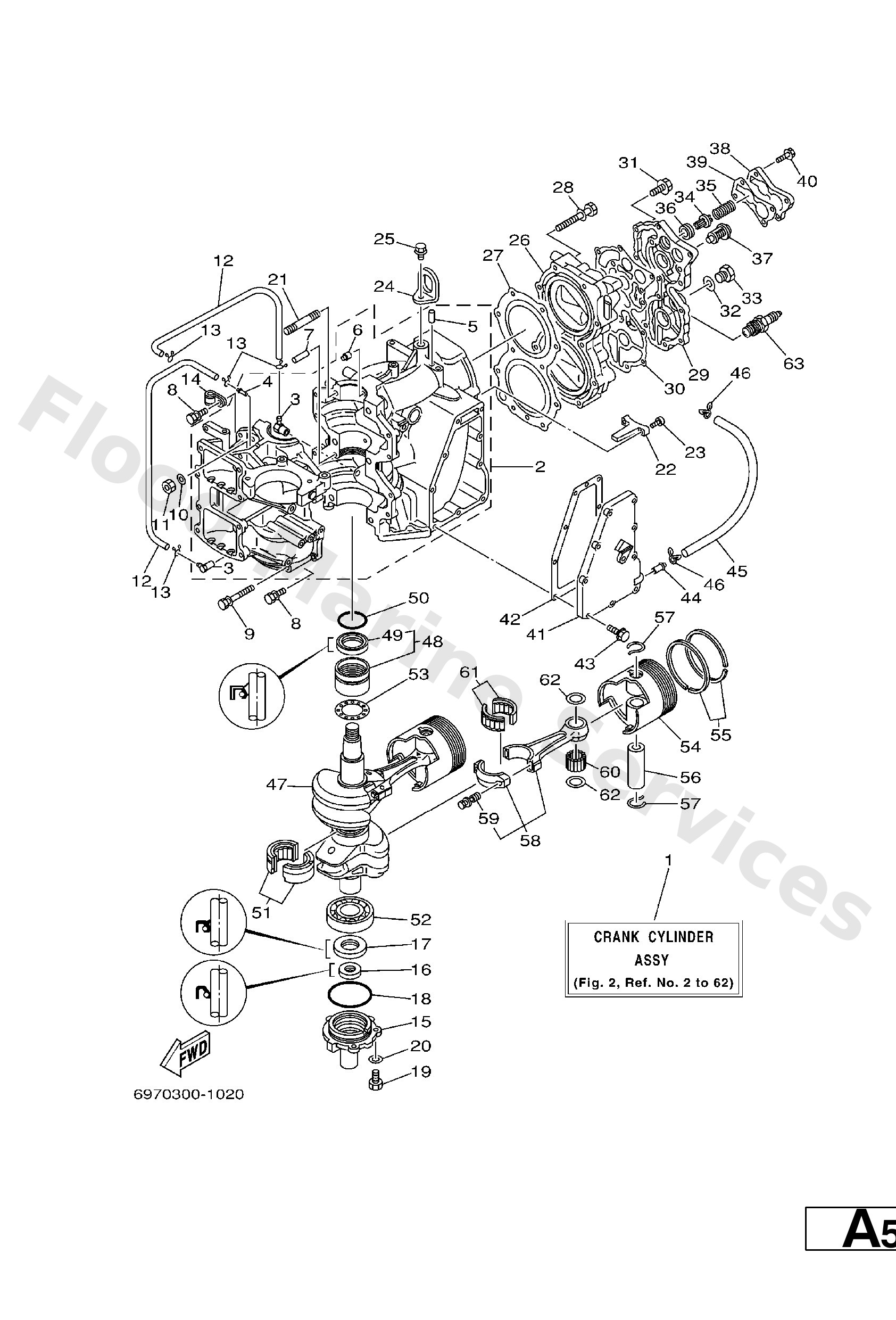

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
650--11370--00
Check valve assembly
Loading…
↗
4
624--14485--00
Pipe, joint
Loading…
↗
5
93604--08062
Pin,dowel (626)
Loading…
↗
6
663--11518--01
Lock, bearing
Loading…
↗
7
93608--12063
Pin, dowel (626)
Loading…
↗
8
90119--06M12
Bolt, with washer (697)
Loading…
↗
9
90119--10005
Bolt, with washer
Loading…
↗
10
90201--10008
Washer, plate
Loading…
↗
11
95313--10600
Nut(3bm)
Loading…
↗
12
90445--07240
Hose (l390)
Loading…
↗
13
90467--06016
Clip (655)
Loading…
↗
14
90461--04011
Clamp 6208236100
Loading…
↗
16
9310418049
Oil seal (18x30x5-663)
Loading…
↗
17
9310228135
Oil seal (28x47x7-663)
Loading…
↗
18
93210--62269
Ring, o(663)
Loading…
↗
19
97095--06016
Bolt, hexagon deep recess
Loading…
↗
20
92995--06600
Washer, plain (646)
Loading…
↗
21
9011610177
Bolt, stud(663)
Loading…
↗
22
6631132500
Anode
Loading…
↗
23
98780--04015
Screw, flat head(ga5)
Loading…
↗
24
6971111900
Hanger, engine
Loading…
↗
25
9011908018
Bolt, with washer
Loading…
↗
27
69711181A1
Gasket, cylinder head 1
Loading…
↗
28
90119--08MA8
Bolt, with washer
Loading…
↗
29
66311191001S
Cover, cylinder head 1
Loading…
↗
30
66311193A0
Gasket, head cover
Loading…
↗
31
90119--06MA2
Bolt, with washer
Loading…
↗
32
90430--14115
Gasket (663)
Loading…
↗
33
9034014036
Plug, (663)
Loading…
↗
34
6631241600
Valve, pressure control
Loading…
↗
35
9050114234
Spring, compression(663)
Loading…
↗
36
9048018065
Grommet(663)
Loading…
↗
37
6F51241102
Thermostat
Loading…
↗
38
66312413001S
Cover, thermostat
Loading…
↗
39
66312414A0
Gasket, thermostat
Loading…
↗
40
90119--06MA4
Bolt, with washer
Loading…
↗
41
66341113001S
Outer cover, exhaust
Loading…
↗
42
66341114A0
Gasket, exhaust outer cover
Loading…
↗
44
650--24378--00
Pipe, joint 2
Loading…
↗
45
663--24312--01
Pipe 1
Loading…
↗
46
90467--08004
AP
Clip, pipe 6162435600
Loading…
↗
47
6631141101
Shaft, crank
Loading…
↗
48
93311632U1
Brg,needle
Loading…
↗
49
93102--32M07
Oil seal (697)
Loading…
↗
50
93210--42159
O-ring (647)
Loading…
↗
51
93311832U4
Bearing, needle (6f0)
Loading…
↗
52
93306206U3
Brg,r-b 6206 66mm 236g (696)
Loading…
↗
53
6631156100
Shim, crank
Loading…
↗
54
688116310394
Piston (std)
Loading…
↗
54
6881163503
AP
Piston (0.25mm o/s)
Loading…
↗
54
6881163603
AP
Piston (0.50mm o/s)
Loading…
↗
55
688--11603--A0
Piston ring set (std)
Loading…
↗
55
688--11604--A0
AP
Piston ring set (0.25mm o/s)
Loading…
↗
55
688--11605--A0
AP
Piston ring set (0.50mm o/s)
Loading…
↗
56
663--11633--00
Pin, piston
Loading…
↗
57
688--11634--00
Clip, piston pin
Loading…
↗
58
688--11650--03
Connecting rod assembly
Loading…
↗
59
90109--08022
Bolt
Loading…
↗
60
93603--21111
Pin, dowel(663)
Loading…
↗
61
93310--730V8
Bearing (688)
Loading…
↗
62
90201--20417
Washer, plate(663)
Loading…
↗
63
94702--00247
Plug, spark (br8hs-10)
Loading…
↗
