5MHB (2003)
CYLINDER. CRANKCASE

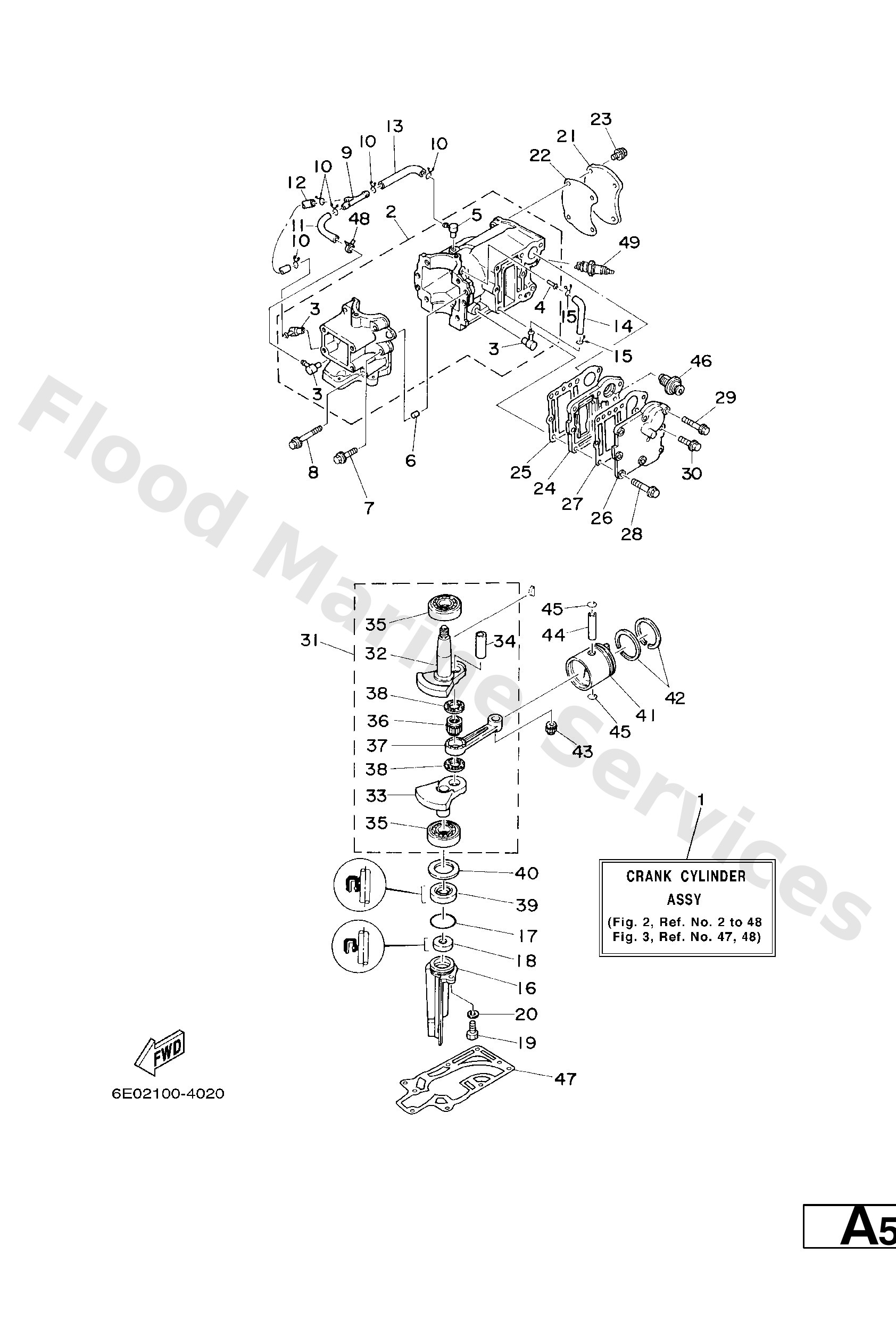

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
2
6E3−15100−02−1S
Crankcase assembly
Loading…
↗
2
6E0−15100−01−1S
Crankcase assembly
Loading…
↗
3
650−11370−01
Check valve assembly
Loading…
↗
4
624−14485−00
Pipe, joint
Loading…
↗
5
6E5−11372−01
Nipple, hose
Loading…
↗
6
93606−12019
Pin, dowel (614)
Loading…
↗
7
90105−06M16
Bolt (6e0)
Loading…
↗
8
90105−06M17
Bolt (6e0)
Loading…
↗
9
6E0−24378−00
Pipe, joint
Loading…
↗
10
90467−06016
Clip (655)
Loading…
↗
11
90445−07M00
Hose (l200)
Loading…
↗
12
90445−07M28
Hose (l200)
Loading…
↗
13
90445−07M32
Hose (l200)
Loading…
↗
16
6E0−15396−03−5B
Housing, oil seal
Loading…
↗
17
93210−31MJ5
O-ring
Loading…
↗
18
93101−10M25
Oil seal(6e0)
Loading…
↗
19
97095−06016
Bolt, hexagon deep recess
Loading…
↗
20
92995−06600
Washer, plain (646)
Loading…
↗
21
6E0−11191−01−1S
Cover, cylinder head 1
Loading…
↗
21
6E3−11191−01−1S
Cover, cylinder head 1
Loading…
↗
22
6E0−11193−A1
Gasket,head cover
Loading…
↗
22
6E3−11193−A1
Gasket,head cover
Loading…
↗
23
90105−06039
Bolt, flange
Loading…
↗
24
6E0−41111−01−1S
Inner cover, exhaust
Loading…
↗
24
6E3−41111−01−1S
Inner cover, exhaust
Loading…
↗
25
6E0−41112−A1
Gasket,inner cover exhaust
Loading…
↗
25
6E3−41112−A1
Gasket,inner cover exhaust
Loading…
↗
26
6E0−41113−01−1S
Outer cover, exhaust
Loading…
↗
26
6E3−41113−01−1S
Outer cover, exhaust
Loading…
↗
27
6E0−41114−A1
Gasket,outer cover exhaust
Loading…
↗
27
6E3−41114−A1
Gasket,outer cover exhaust
Loading…
↗
28
90105−06037
Bolt, flange
Loading…
↗
29
90105−06035
Bolt, flange
Loading…
↗
31
6E0−11400−00
Crank assembly
Loading…
↗
31
6E3−11400−00
Crank ass'y
Loading…
↗
32
6E0−11412−00
FOR OCEANIA
Crank 1
Loading…
↗
32
6E3−11412−00
FOR OCEANIA
Crank 1
Loading…
↗
33
6E0−11422−00
FOR OCEANIA
Crank 2
Loading…
↗
33
6E3−11422−00
FOR OCEANIA
Crank 2
Loading…
↗
34
6G1−11681−00
FOR OCEANIA
Pin, crank
Loading…
↗
35
93306−204U0
Bearing(6e0)
Loading…
↗
36
93310−418V1
FOR OCEANIA
Bearing (6e0)
Loading…
↗
37
6E0−11651−01
FOR OCEANIA
Rod, connecting
Loading…
↗
38
90209−18112
FOR OCEANIA
Washer 132116850000
Loading…
↗
39
93101−20M29
Oil seal(6j1)
Loading…
↗
40
90201−32M48
Shim (t:0.90mm)
Loading…
↗
41
6E0−11631−00−98
Piston
Loading…
↗
41
6E3−11631−00−98
Piston
Loading…
↗
42
6G1−11610−00
Piston ring set (std)
Loading…
↗
42
6J1−11610−00
Piston ring set (std)
Loading…
↗
43
93310−112V0
Bearing (6e0)
Loading…
↗
44
6G1−11633−00
Pin, piston
Loading…
↗
45
93450−13022
Circlip 132116340000
Loading…
↗
46
6E5−12411−01
Thermostat
Loading…
↗
47
6E0−45113−A1
Gasket,upper casing
Loading…
↗
48
90468−07M02
Clip (6e5)
Loading…
↗
49
94702−00040
FOR USA
Plug, spark (b7hs)
Loading…
↗
49
94702−00272
FOR OCEANIA
Plug, spark (br7hs)
Loading…
↗
