6DMH (2003)
CYLINDER. CRANKCASE

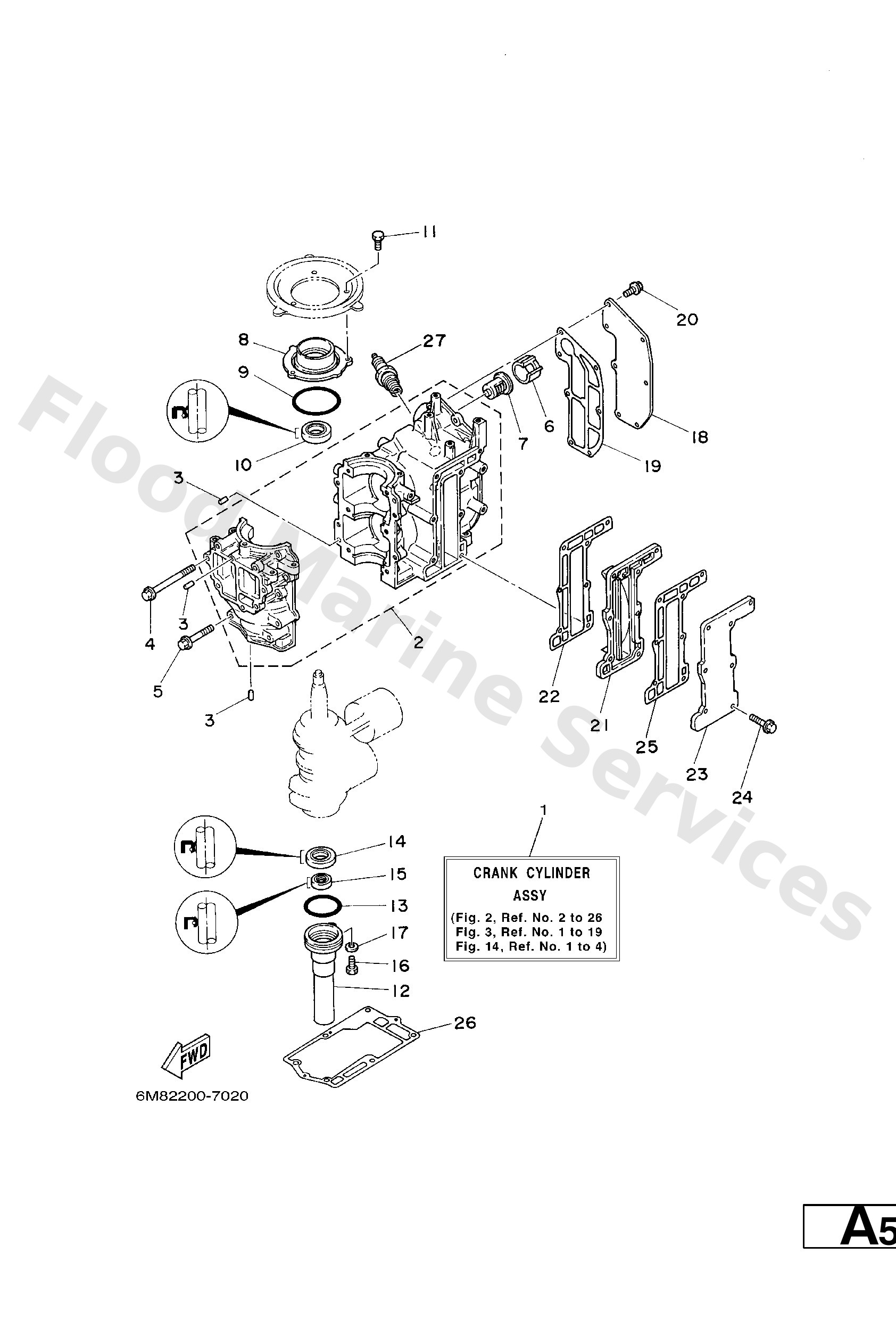

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
93604−08062
Pin,dowel (626)
Loading…
↗
4
90105−06M26
Bolt (6g1)
Loading…
↗
5
90105−06M25
Bolt (6g1)
Loading…
↗
6
90387−22M50
Collar (6g1)
Loading…
↗
7
6E5−12411−01
Thermostat
Loading…
↗
9
93210−54M54
O-ring (6g1)
Loading…
↗
10
93102−20M25
Oil seal (6e0)
Loading…
↗
11
97013−06016
Bolt, hexagon deep recess
Loading…
↗
13
93210−42159
O-ring (647)
Loading…
↗
14
93101−20M34
Oil seal(6j1)
Loading…
↗
15
93101−12M26
Oil seal(6g1)
Loading…
↗
16
97095−06016
Bolt, hexagon deep recess
Loading…
↗
17
92995−06600
Washer, plain (646)
Loading…
↗
19
6G1−11193−A1
Gasket, head cover 1
Loading…
↗
20
90105−06M14
Bolt (6e0)
Loading…
↗
22
6G1−41112−A1
Gasket, exhaust inner cover
Loading…
↗
24
90105−06M24
Bolt (6g1)
Loading…
↗
25
6G1−41114−A0
Gasket, exhaust outer cover
Loading…
↗
26
6G1−45113−A1
Gasket, upper casing
Loading…
↗
27
94702−00271
Plug, spark (br7hs-10)
Loading…
↗
27
94702−00274
Plug, spark (br6hs-10)
Loading…
↗
