90AETO (2003)
CYLINDER. CRANKCASE

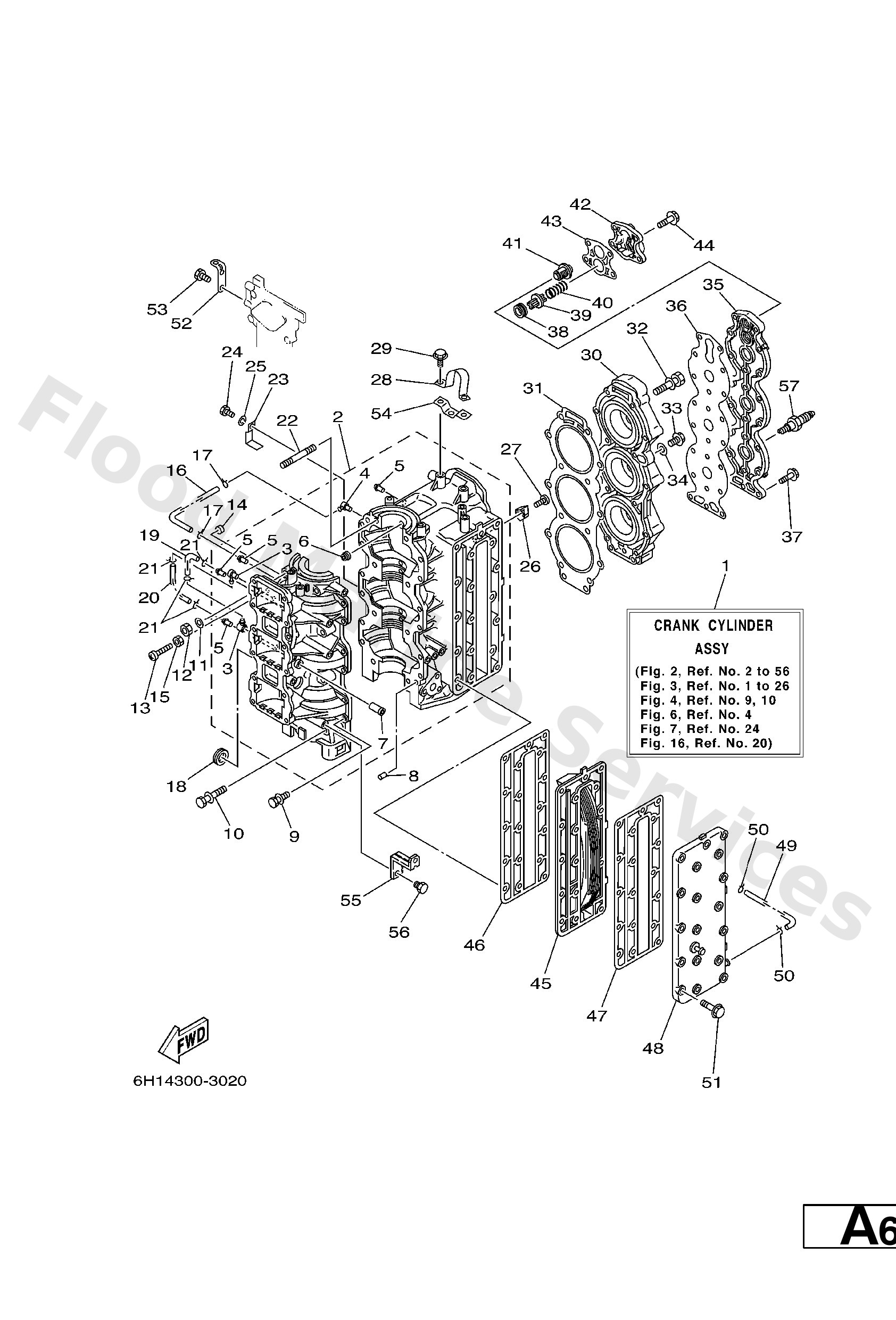

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
688--11370--01
Check valve assembly
Loading…
↗
4
650--11370--01
Check valve assembly
Loading…
↗
5
624--14485--00
Pipe, joint
Loading…
↗
6
663--11518--01
Lock, bearing
Loading…
↗
7
650--24378--00
Pipe, joint 2
Loading…
↗
8
93608--12063
Pin, dowel (626)
Loading…
↗
9
90119--06M12
Bolt, with washer (697)
Loading…
↗
10
90119--10005
Bolt, with washer
Loading…
↗
11
90201--10008
Washer, plate
Loading…
↗
12
95313--10600
Nut(3bm)
Loading…
↗
13
90157--06014
Screw, pan head(697)
Loading…
↗
14
688--44194--00
Cap
Loading…
↗
15
95303--06700
Nut
Loading…
↗
16
90445--07260
Hose (l390)
Loading…
↗
17
90467--06016
Clip (655)
Loading…
↗
18
90480--24M04
Grommet (688)
Loading…
↗
19
90445--07M00
Hose (l200)
Loading…
↗
20
90445--07M23
Hose (l570)
Loading…
↗
22
90116--10M06
Bolt, stud (688)
Loading…
↗
23
90465--12M03
Clamp, cord (688)
Loading…
↗
24
97095--06014
Bolt(gj3)
Loading…
↗
25
92995--06100
Washer(6a1)
Loading…
↗
26
688--11325--00
Anode
Loading…
↗
27
98780--04015
Screw, flat head(ga5)
Loading…
↗
28
688--11119--01
Hanger, engine
Loading…
↗
29
90119--08MA3
Bolt, with washer
Loading…
↗
30
6H1--11111--01--1S
Head, cylinder 1
Loading…
↗
31
68811181A1
Gasket, cylinder head 1
Loading…
↗
32
90119--08MA8
Bolt, with washer
Loading…
↗
33
90340--14M00
Plug, straight screw(62y)
Loading…
↗
34
90430--14115
Gasket (663)
Loading…
↗
35
688--11191--00--1S
Cover, cylinder head 1
Loading…
↗
36
688--11193--A1
Gasket, head cover 1
Loading…
↗
37
90119--06MA3
Bolt, with washer
Loading…
↗
38
90480--20M05
Grommet (688)
Loading…
↗
39
688--12416--00
Valve, pressure control
Loading…
↗
40
90501--16M11
Spring, compression (688)
Loading…
↗
41
688--12411--10
Thermostat
Loading…
↗
42
688--12413--00--1S
Cover, thermostat
Loading…
↗
43
688--12414--A1
Gasket, cover
Loading…
↗
44
90119--06MA5
Bolt, with washer
Loading…
↗
45
688--41111--00--1S
Inner cover, exhaust
Loading…
↗
46
688--41112--A0
Gasket, exhaust inner cover
Loading…
↗
47
688--41114--A0
Gasket, exhaust outer cover
Loading…
↗
48
6H1--41113--00--1S
FOR FLUSHING KIT
Outer cover, exhaust
Loading…
↗
49
663--24312--01
Pipe 1
Loading…
↗
50
90467--08004
Clip, pipe 6162435600
Loading…
↗
51
90119--08020
Bolt, with washer
Loading…
↗
52
6H1--15772--00
Stay 2
Loading…
↗
53
97095--06012
Bolt(gh1)
Loading…
↗
54
6H1--15773--01
Stay 3
Loading…
↗
55
6H1--21796--00
Hinge
Loading…
↗
56
97095--08012
Bolt, hexagon deep recess
Loading…
↗
57
94702--00247
Plug, spark (br8hs-10)
Loading…
↗
