E60HMHD (2003)
CYLINDER. CRANKCASE

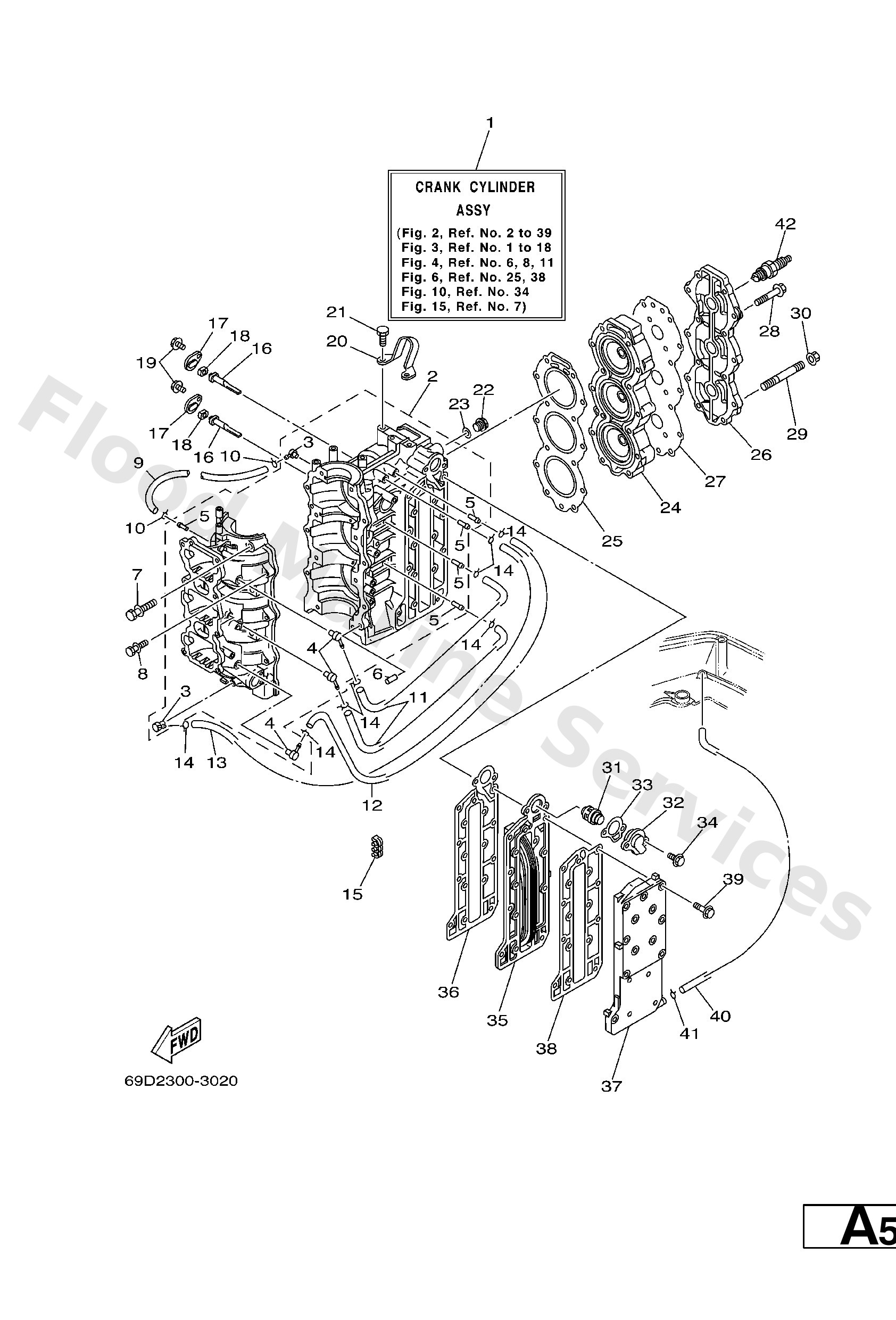

Diagram: CYLINDER. CRANKCASE
Parts List
Reference
Description
Price
3
688−11370−01
Check valve assembly
Loading…
↗
4
650−11370−01
Check valve assembly
Loading…
↗
5
624−14485−00
Pipe, joint
Loading…
↗
6
93608−12063
Pin, dowel (626)
Loading…
↗
7
90119−10005
Bolt, with washer
Loading…
↗
8
90119−08M64
Bolt, with washer
Loading…
↗
9
90445−07M44
Hose (l390)
Loading…
↗
10
90467−06016
Clip (655)
Loading…
↗
11
90445−07M02
Hose (l200)
Loading…
↗
12
90445−07M45
Hose (l390)
Loading…
↗
13
90445−07M82
Hose (l770)
Loading…
↗
15
90464−07M05
Clamp (6g5)
Loading…
↗
16
6H3−11325−01
Anode
Loading…
↗
18
6H3−11328−00
Grommet, anode
Loading…
↗
19
90119−06023
Bolt, with washer
Loading…
↗
20
6K5−11119−01
Hanger, engine
Loading…
↗
21
90101−08002
Bolt
Loading…
↗
22
90340−14M00
Plug, straight screw(62y)
Loading…
↗
23
90430−14115
Gasket (663)
Loading…
↗
25
6H3−11181−A1
Gasket, cylinder head 1
Loading…
↗
27
6H3−11193−A1
Gasket, head cover 1
Loading…
↗
28
90119−08MA5
Bolt, with washer
Loading…
↗
29
90116−08M69
Bolt, stud
Loading…
↗
30
90179−08M34
Nut
Loading…
↗
31
6H3−12411−10
Thermostat
Loading…
↗
32
6H3−12413−00−1S
Cover, thermostat
Loading…
↗
33
6H3−12414−A1
Gasket, cover
Loading…
↗
34
90119−06MA3
Bolt, with washer
Loading…
↗
35
6H3−41111−01−1S
Inner cover, exhaust
Loading…
↗
36
6H3−41112−A0
Gasket, exhaust inner cover
Loading…
↗
37
6H3−41113−02−1S
Outer cover, exhaust
Loading…
↗
38
6H3−41114−A0
Gasket, exhaust outer cover
Loading…
↗
39
90119−06MA5
Bolt, with washer
Loading…
↗
40
663−24312−01
Pipe 1
Loading…
↗
41
90467−08004
Clip, pipe 6162435600
Loading…
↗
42
94702−00247
Plug, spark (br8hs-10)
Loading…
↗
