200GETO (2002)
CYLINDER. CRANKCASE 1

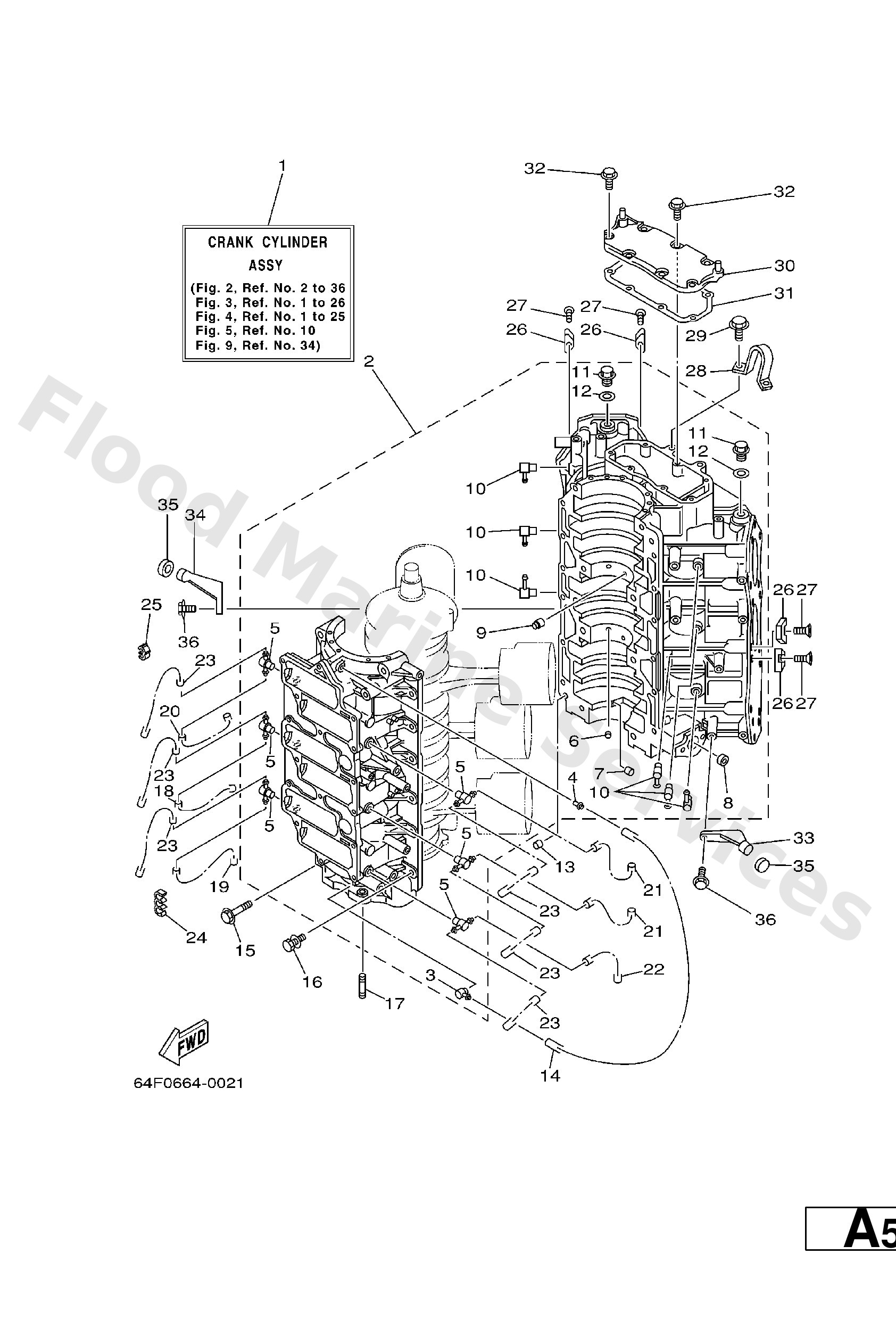

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E5--11372--00
Nipple, hose
Loading…
↗
4
624--14485--00
Pipe, joint
Loading…
↗
5
6F6--11372--00
Nipple, hose
Loading…
↗
6
624--11379--00
Valve, check
Loading…
↗
7
90384--06M07
Bush, bimetal formed(6r3)
Loading…
↗
8
90384--14M09
Bush, bimetal formed(6r3)
Loading…
↗
9
663--11518--01
Lock, bearing
Loading…
↗
10
646--11370--00
Check valve assembly
Loading…
↗
11
90340--14M00
Plug, straight screw(62y)
Loading…
↗
12
90430--14115
Gasket (663)
Loading…
↗
13
93608--12063
Pin, dowel (626)
Loading…
↗
14
90445--07M10
Hose (L510)
Loading…
↗
15
90105--10M20
Bolt (6e5)
Loading…
↗
16
90119--08M94
Bolt, with washer
Loading…
↗
17
90116--08M45
Bolt, stud (6e5)
Loading…
↗
18
90445--07M11
Hose (l770)
Loading…
↗
19
90445--07M09
Hose (l390)
Loading…
↗
20
90445--07M12
Hose (L300)
Loading…
↗
21
90445--07M08
Hose (l390)
Loading…
↗
22
90445--07M90
Hose (l390)
Loading…
↗
23
90445--07M34
Hose (L260)
Loading…
↗
24
90464--07M05
Clamp (6g5)
Loading…
↗
25
90464--07M20
Clamp(6h0)
Loading…
↗
26
6E5--11325--00
Anode
Loading…
↗
27
98780--04015
Screw, flat head(ga5)
Loading…
↗
28
67H--11119--01
Hanger, engine
Loading…
↗
29
90119--08MA3
Bolt, with washer
Loading…
↗
30
6K7--11371--01--1S
Cover
Loading…
↗
31
6E5--11381--A2
Gasket 1
Loading…
↗
32
90119--06MA2
Bolt, with washer
Loading…
↗
33
6E5--42761--00--1S
Stopper
Loading…
↗
34
6E5--42762--00--1S
Stopper
Loading…
↗
35
68F--44533--00
Damper, upper mount rubber
