200GETO (2003)
CYLINDER. CRANKCASE 1

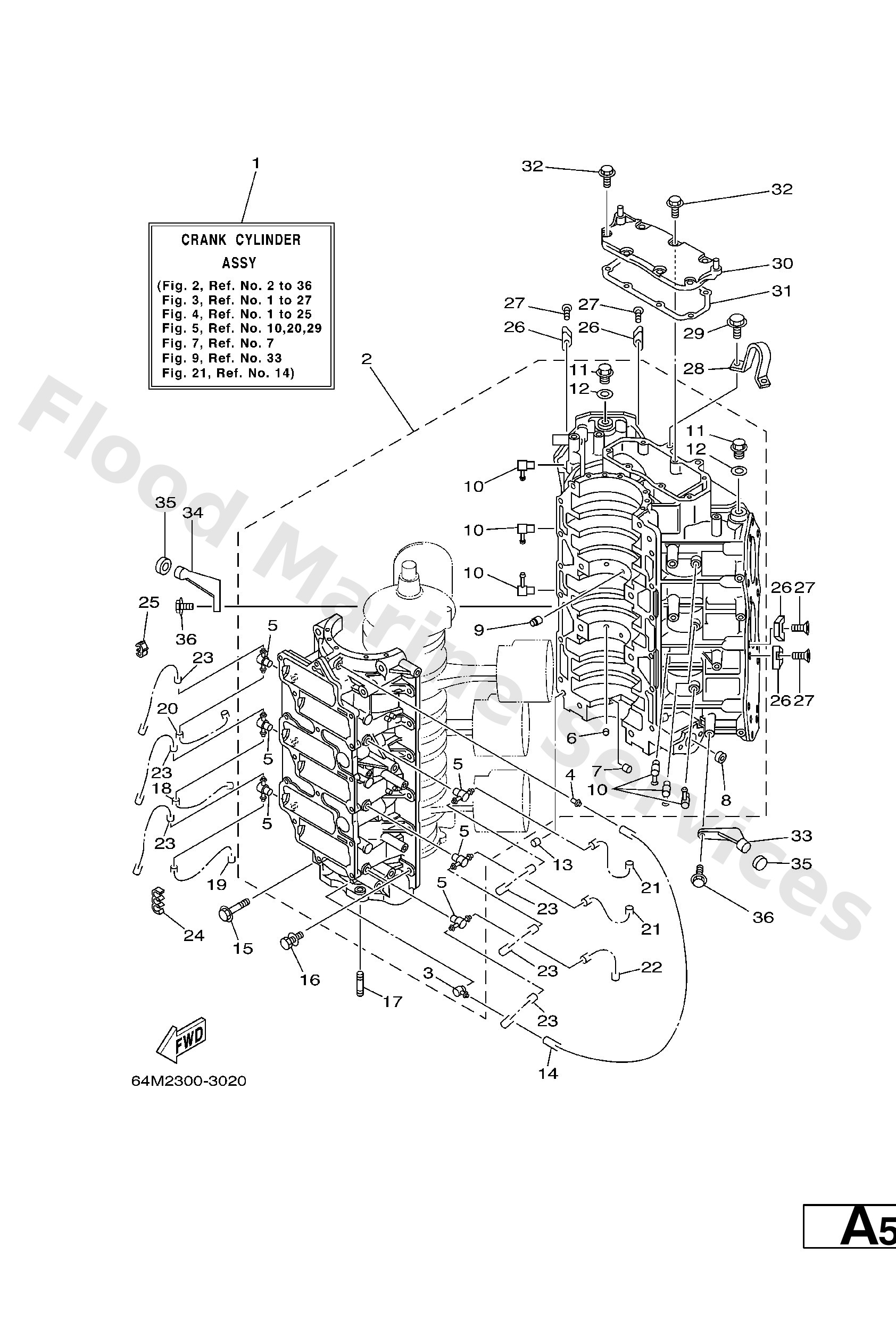

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E5−11372−01
Nipple, hose
Loading…
↗
4
624−14485−00
Pipe, joint
Loading…
↗
5
6F6−11372−00
Nipple, hose
Loading…
↗
6
624−11379−00
Valve, check
Loading…
↗
7
90384−06M07
Bush, bimetal formed(6r3)
Loading…
↗
8
90384−14M09
Bush, bimetal formed(6r3)
Loading…
↗
9
663−11518−01
Lock, bearing
Loading…
↗
10
646−11370−01
Check valve assembly
Loading…
↗
11
90340−14M00
Plug, straight screw(62y)
Loading…
↗
12
90430−14115
Gasket (663)
Loading…
↗
13
93608−12063
Pin, dowel (626)
Loading…
↗
14
90445−07M10
Hose (L510)
Loading…
↗
15
90105−10M20
Bolt (6e5)
Loading…
↗
16
90119−08M94
Bolt, with washer
Loading…
↗
17
90116−08M45
Bolt, stud (6e5)
Loading…
↗
18
90445−07M11
Hose (l770)
Loading…
↗
19
90445−07M09
Hose (l390)
Loading…
↗
20
90445−07M12
Hose (L300)
Loading…
↗
21
90445−07M08
Hose (l390)
Loading…
↗
22
90445−07M90
Hose (l390)
Loading…
↗
23
90445−07M34
Hose (L260)
Loading…
↗
24
90464−07M05
Clamp (6g5)
Loading…
↗
25
90464−07M20
Clamp(6h0)
Loading…
↗
26
6E5−11325−00
Anode
Loading…
↗
27
98780−04015
Screw, flat head(ga5)
Loading…
↗
28
67H−11119−01
Hanger, engine
Loading…
↗
29
90119−08MA3
Bolt, with washer
Loading…
↗
30
6K7−11371−01−1S
Cover
Loading…
↗
31
6E5−11381−A2
Gasket 1
Loading…
↗
32
90119−06MA2
Bolt, with washer
Loading…
↗
33
6E5−42761−00−1S
Stopper
Loading…
↗
34
6E5−42762−00−1S
Stopper
Loading…
↗
35
68F−44533−00
Damper, upper mount rubber
