250AETO (2002)
CYLINDER. CRANKCASE 1

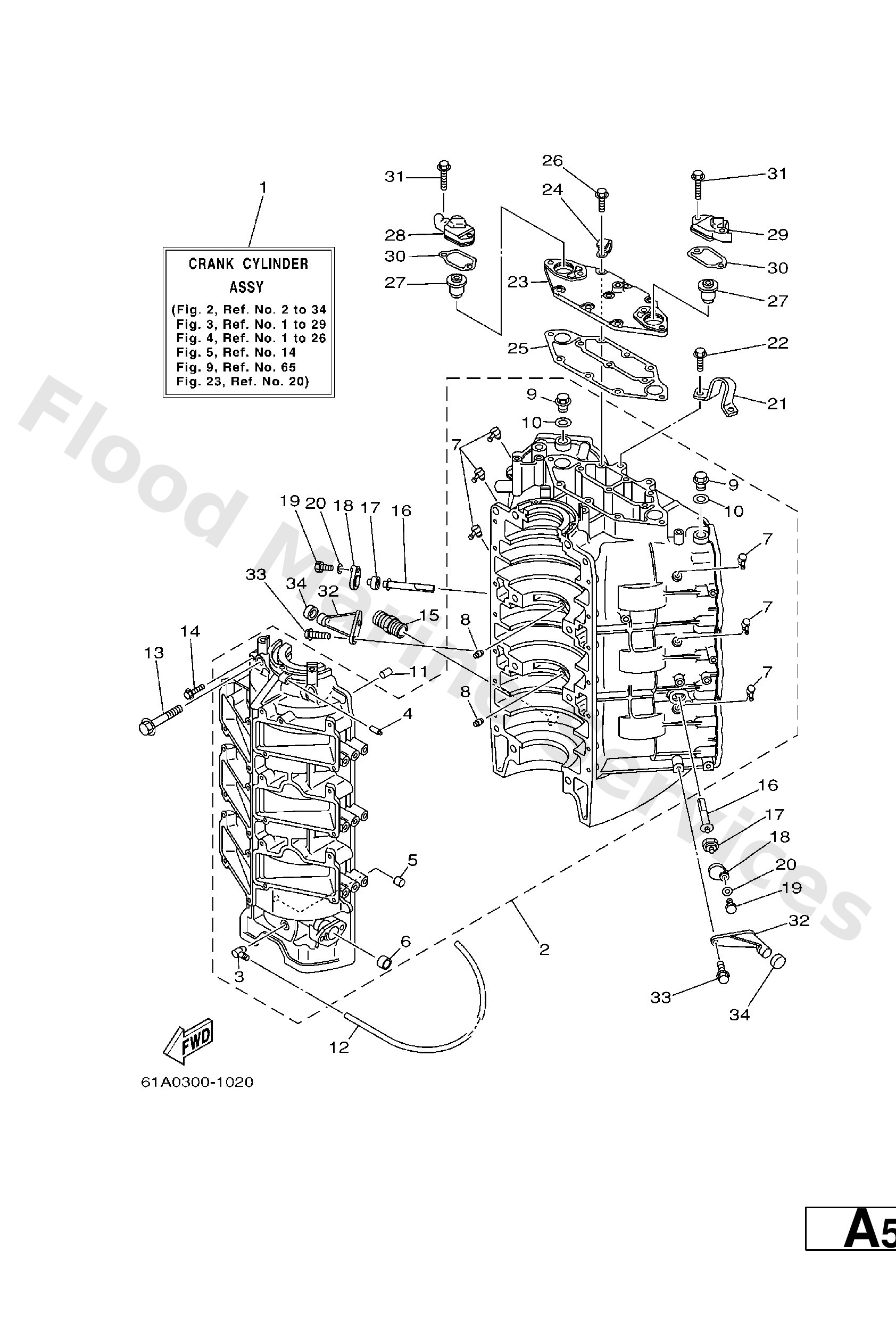

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E5−11372−00
Nipple, hose
Loading…
↗
4
624−14485−00
Pipe, joint
Loading…
↗
5
90384−06M07
Bush, bimetal formed(6r3)
Loading…
↗
6
90383−16M01
Bush, formed(61a)
Loading…
↗
8
663−11518−01
Lock, bearing
Loading…
↗
9
90340−14M00
Plug, straight screw(62y)
Loading…
↗
10
90430−14115
Gasket (663)
Loading…
↗
11
93608−12063
Pin, dowel (626)
Loading…
↗
12
90445−07M11
Hose (l770)
Loading…
↗
13
90105−10M62
Bolt, washer based(61a)
Loading…
↗
14
90119−06M13
Bolt, with washer (682)
Loading…
↗
15
6G5−12581−00
Joint, hose
Loading…
↗
16
61A−11325−00
Anode
Loading…
↗
17
6H3−11328−00
Grommet, anode
Loading…
↗
19
97013−06016
Bolt, hexagon deep recess
Loading…
↗
20
92903−06600
Washer, plain (646)
Loading…
↗
21
6E5−11119−01
Hanger, engine
Loading…
↗
22
90119−08MA3
Bolt, with washer
Loading…
↗
24
90465−06M86
Clamp
Loading…
↗
25
61A−11381−A0
Gasket 1
Loading…
↗
26
90119−06MA2
Bolt, with washer
Loading…
↗
27
6E5−12411−20
Thermostat
Loading…
↗
28
61A−12413−00−1S
Cover, thermostat
Loading…
↗
29
61A−12413−10−1S
Cover, thermostat
Loading…
↗
30
61A−12414−A0
Gasket, cover
Loading…
↗
31
90119−06MA5
Bolt, with washer
Loading…
↗
32
6E5−42761−00−1S
Stopper
Loading…
↗
34
68F−44533−00
Damper, upper mount rubber
Loading…
↗
