250BETO (2002)
CYLINDER. CRANKCASE 1

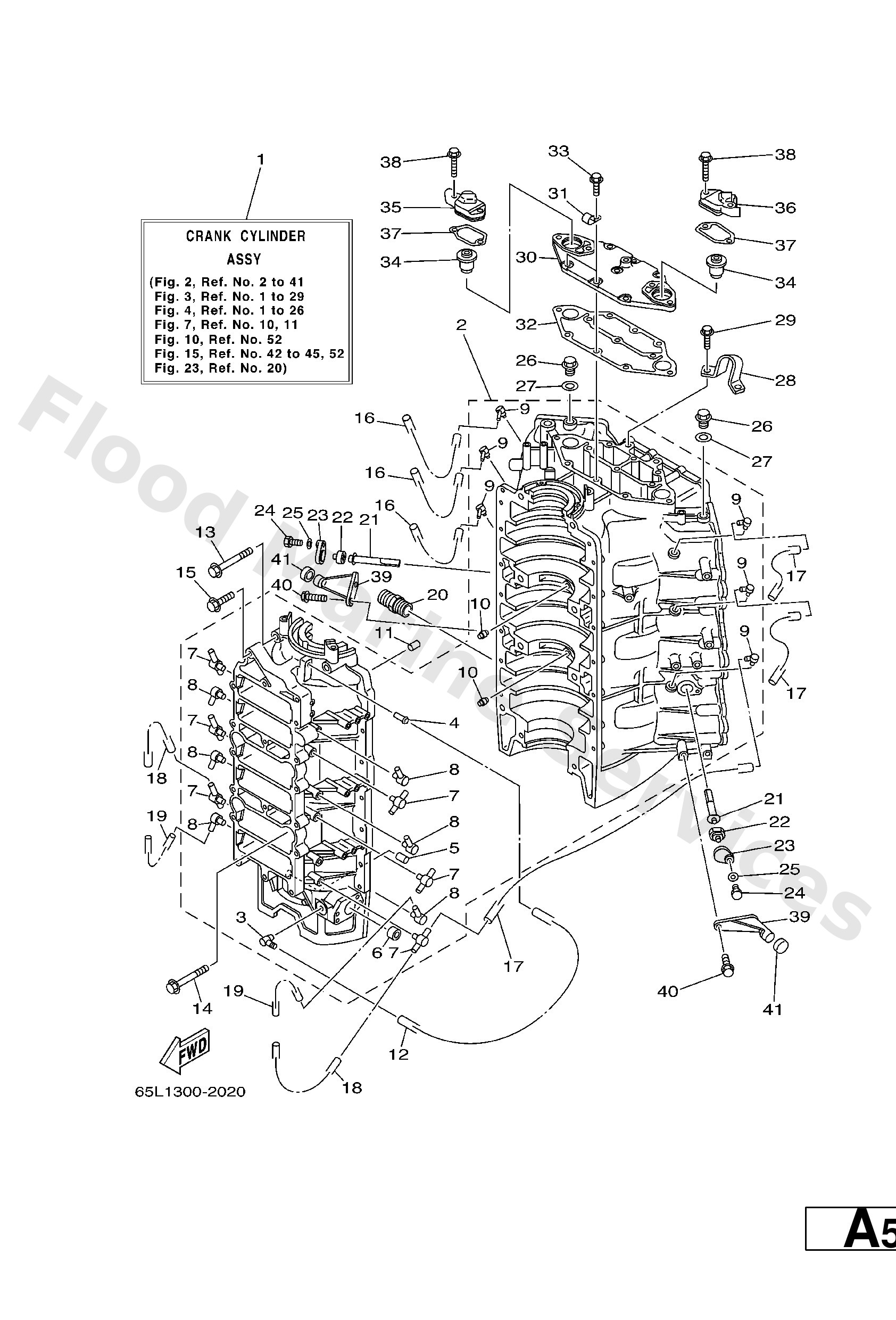

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E5--11372--00
Nipple, hose
Loading…
↗
4
624--14485--00
Pipe, joint
Loading…
↗
5
90384--06M07
Bush, bimetal formed(6r3)
Loading…
↗
6
9038316M01
Bush, formed(61a)
Loading…
↗
7
6F6--11372--00
Nipple, hose
Loading…
↗
8
650--11372--00
Nipple, hose
Loading…
↗
10
663--11518--01
Lock, bearing
Loading…
↗
11
93608--12063
Pin, dowel (626)
Loading…
↗
12
90445--07M11
Hose (l770)
Loading…
↗
13
90105--10M62
Bolt, washer based(61a)
Loading…
↗
14
90105--10M75
Bolt, washer based(65j)
Loading…
↗
15
90119--06M13
Bolt, with washer (682)
Loading…
↗
16
90445--07M44
Hose (l390)
Loading…
↗
17
90445--07M40
Hose (l390)
Loading…
↗
18
90445--07MA6
Hose (l200)
Loading…
↗
20
6G5--12581--00
Joint, hose
Loading…
↗
21
61A--11325--00
Anode
Loading…
↗
22
6H3--11328--00
Grommet, anode
Loading…
↗
24
97013--06016
Bolt, hexagon deep recess
Loading…
↗
25
92903--06600
Washer, plain (646)
Loading…
↗
26
90340--14M00
Plug, straight screw(62y)
Loading…
↗
27
90430--14115
Gasket (663)
Loading…
↗
28
6E5--11119--01
Hanger, engine
Loading…
↗
29
90119--08MA3
Bolt, with washer
Loading…
↗
30
61A11371001S
Cover
Loading…
↗
31
90465--06M86
Clamp
Loading…
↗
32
61A--11381--A0
Gasket 1
Loading…
↗
33
90119--06MA2
Bolt, with washer
Loading…
↗
34
6E5--12411--20
Thermostat
Loading…
↗
35
61A12413001S
Cover, thermostat
Loading…
↗
36
61A12413101S
Cover, thermostat
Loading…
↗
37
61A--12414--A0
Gasket, cover
Loading…
↗
38
90119--06MA5
Bolt, with washer
Loading…
↗
39
6E5--42761--00--1S
Stopper
Loading…
↗
41
68F--44533--00
Damper, upper mount rubber
Loading…
↗
