E115AE (2003)
CYLINDER. CRANKCASE 1

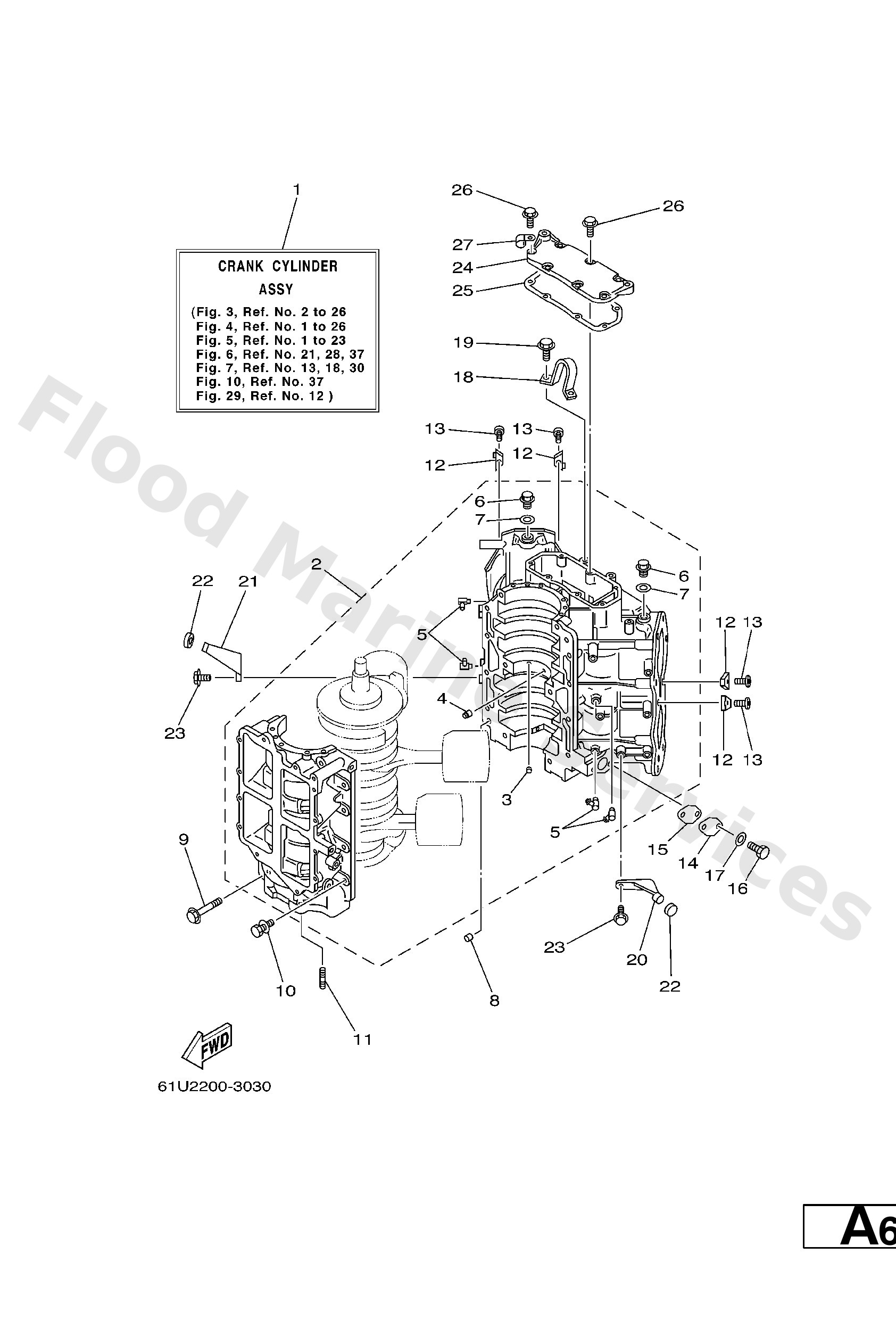

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
624−11379−00
Valve, check
Loading…
↗
4
663−11518−01
Lock, bearing
Loading…
↗
5
6E5−11372−01
Nipple, hose
Loading…
↗
6
90340−14M00
Plug, straight screw(62y)
Loading…
↗
7
90430−14115
Gasket (663)
Loading…
↗
8
93608−12063
Pin, dowel (626)
Loading…
↗
9
90105−10M20
Bolt (6e5)
Loading…
↗
10
90119−08M94
Bolt, with washer
Loading…
↗
11
90116−08M45
Bolt, stud (6e5)
Loading…
↗
12
6E5−11325−00
Anode
Loading…
↗
13
98780−04015
Screw, flat head(ga5)
Loading…
↗
14
6R3−1131M−01
Cover
Loading…
↗
15
6R3−11397−01
2−
Loading…
↗
16
97013−06016
Bolt, hexagon deep recess
Loading…
↗
17
92903−06600
Washer, plain (646)
Loading…
↗
18
6E5−11119−01
Hanger, engine
Loading…
↗
18
61U−11119−01
3−
Loading…
↗
19
90119−08MA3
Bolt, with washer
Loading…
↗
22
68F−44533−00
Damper, upper mount rubber
Loading…
↗
23
90119−06MA2
Bolt, with washer
Loading…
↗
25
6E5−11381−A2
Gasket 1
Loading…
↗
27
90465−06M86
Clamp
Loading…
↗
