F100BET (2003)
CYLINDER. CRANKCASE 1

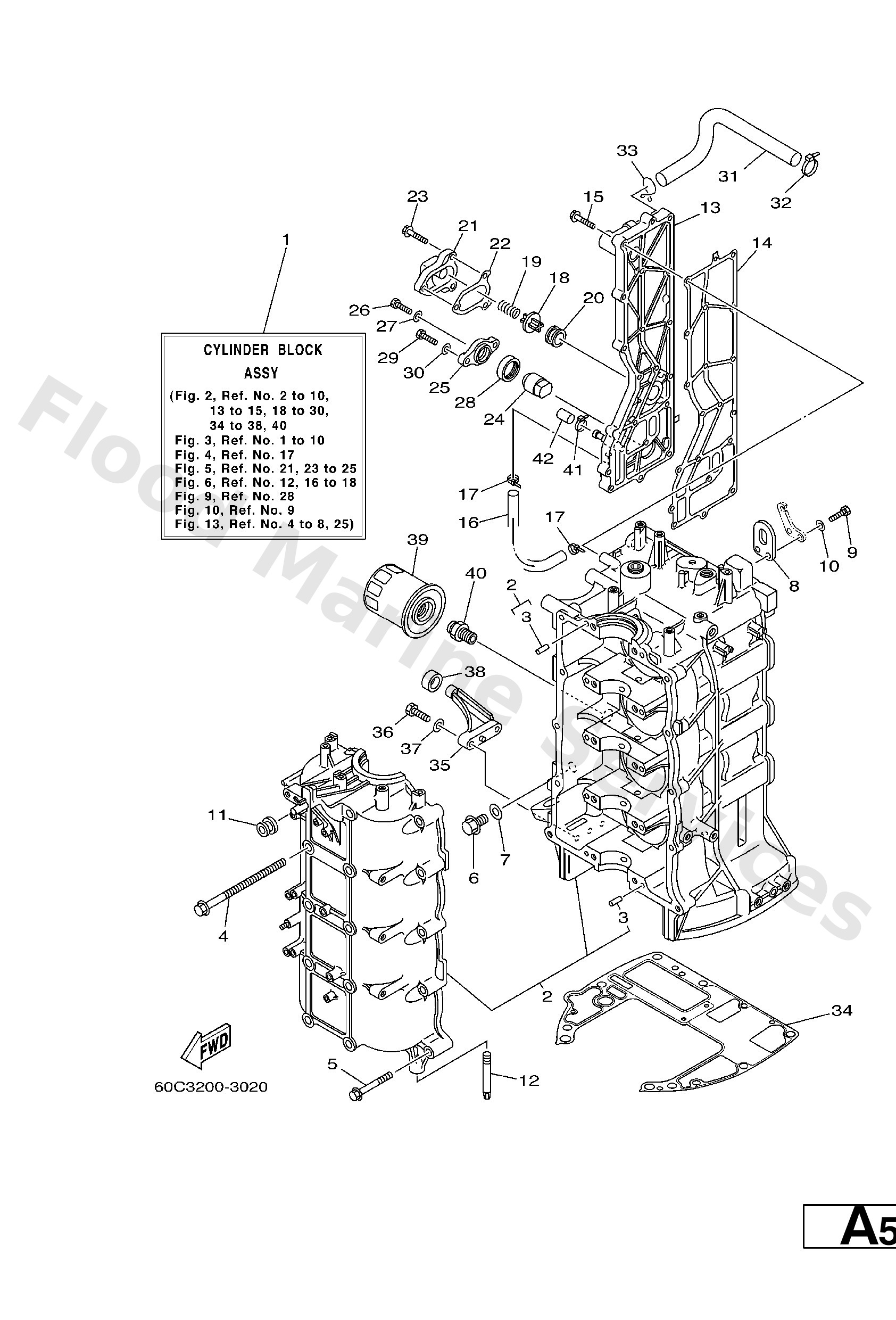

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
90119−10M88
Bolt, with washer
Loading…
↗
5
90119−08M66
Bolt, with washer
Loading…
↗
6
90340−14M06
Plug, straight screw(62y)
Loading…
↗
7
90430−14115
Gasket (663)
Loading…
↗
8
62Y−11119−00
Hanger, engine
Loading…
↗
9
97095−06020
Bolt(7u8)
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
90480−12072
Grommet(53y)
Loading…
↗
12
67F−15142−00
Guide 1
Loading…
↗
14
67F−41114−A0
Gasket, exhaust outer cover
Loading…
↗
15
90119−06MA4
Bolt, with washer
Loading…
↗
16
90445−10M40
Hose (l400)
Loading…
↗
17
90465−11M10
Clamp
Loading…
↗
18
6G5−12416−00
Valve, pressure control
Loading…
↗
19
90501−16M11
Spring, compression (688)
Loading…
↗
20
90480−20M05
Grommet (688)
Loading…
↗
22
67F−12435−A0
Gasket
Loading…
↗
23
90119−06MA2
Bolt, with washer
Loading…
↗
24
68V−11325−00
Anode
Loading…
↗
26
97075−06020
Bolt(7u8)
Loading…
↗
28
67F−11328−00
Grommet, anode
Loading…
↗
29
97075−08025
Bolt, hexagon deep recess
Loading…
↗
30
92995−08600
Washer, plain (663)
Loading…
↗
31
67F−1243A−00
Hose 1
Loading…
↗
33
90467−20M15
Clip
Loading…
↗
34
68V−11351−00
Gasket, cylinder
Loading…
↗
35
67F−42761−00−94
Stopper
Loading…
↗
36
97095−06025
Bolt
Loading…
↗
38
68F−44533−00
Damper, upper mount rubber
Loading…
↗
39
5GH−13440−00
Element assembly, oil cleaner
Loading…
↗
40
90401−20145
Bolt, union
Loading…
↗
42
67F−13448−00
Cap
Loading…
↗
