F13.5AMH (2003)
CYLINDER. CRANKCASE 1

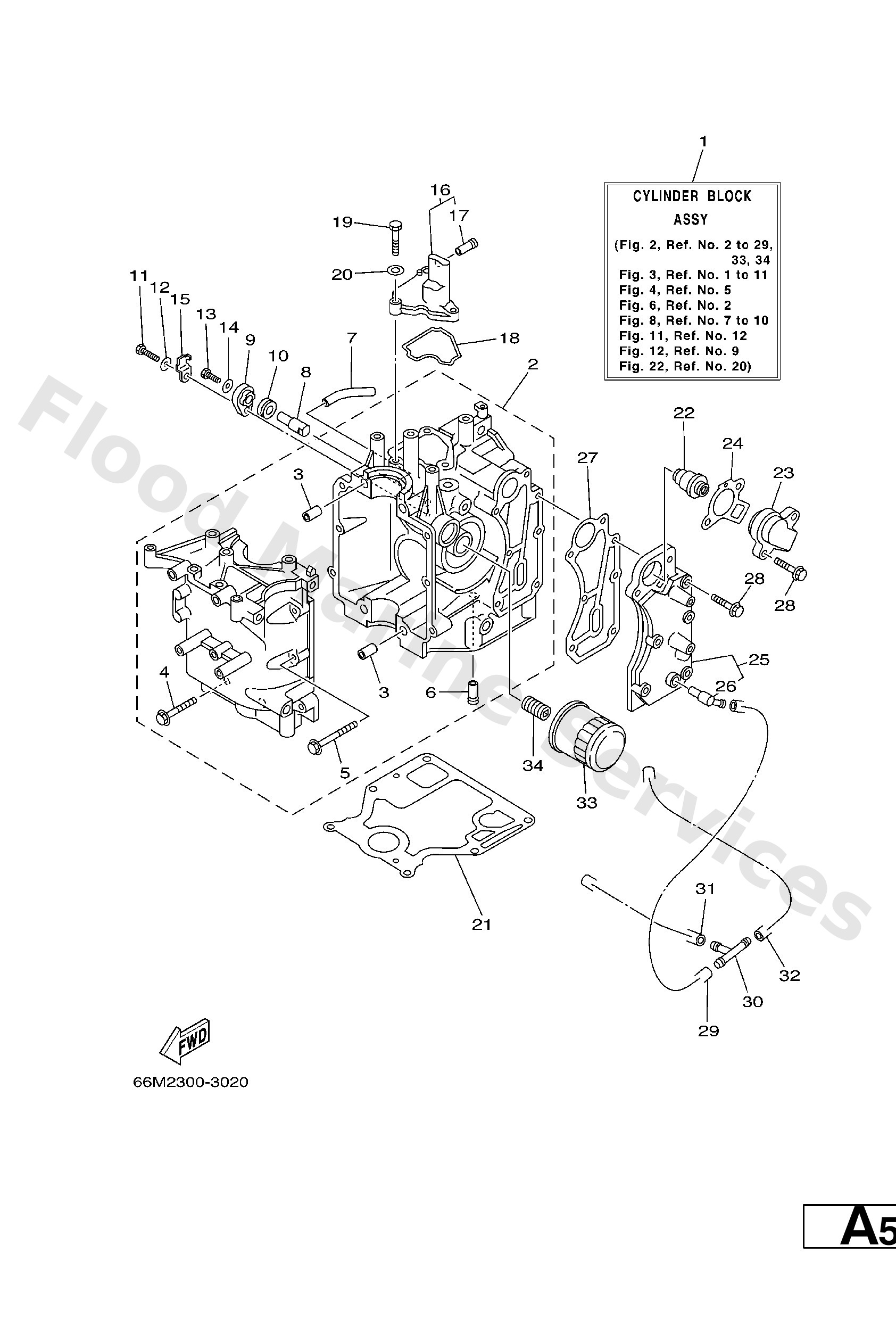

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
99510−10114
Pin, dowel(3vd)
Loading…
↗
4
90119−08M66
Bolt, with washer
Loading…
↗
5
90119−06M14
Bolt, with washer (677)
Loading…
↗
6
6E5−24377−00
Pipe, joint
Loading…
↗
7
90445−10M46
Hose (l200)
Loading…
↗
8
66M−11325−00
Anode
Loading…
↗
10
66M−11328−00
Grommet, anode
Loading…
↗
11
97095−06020
Bolt(7u8)
Loading…
↗
12
92995−06600
Washer, plain (646)
Loading…
↗
13
97095−05012
Bolt, hexagon
Loading…
↗
14
92995−05600
Washer, plain (646)
Loading…
↗
15
66M−12535−00
Plate
Loading…
↗
18
66M−11357−00
Seal, cylinder 3
Loading…
↗
21
66M−11351−00
Gasket, cylinder
Loading…
↗
22
66M−12411−00
Thermostat
Loading…
↗
24
62Y−12414−00
Gasket, cover
Loading…
↗
26
676−11372−00
Nipple, hose
Loading…
↗
27
66M−41114−00
Gasket, exhaust outer cover
Loading…
↗
28
90119−06MA4
Bolt, with washer
Loading…
↗
29
90445−09061
2−
Loading…
↗
30
688−24378−00
Pipe, joint
Loading…
↗
31
90445−09086
Hose (l1500)
Loading…
↗
32
90445−09105
Hose (l420)
Loading…
↗
33
5GH−13440−00
Element assembly, oil cleaner
Loading…
↗
34
90401−20M00
Bolt, union(62y)
Loading…
↗
