FL225AET (2002)
CYLINDER. CRANKCASE 1

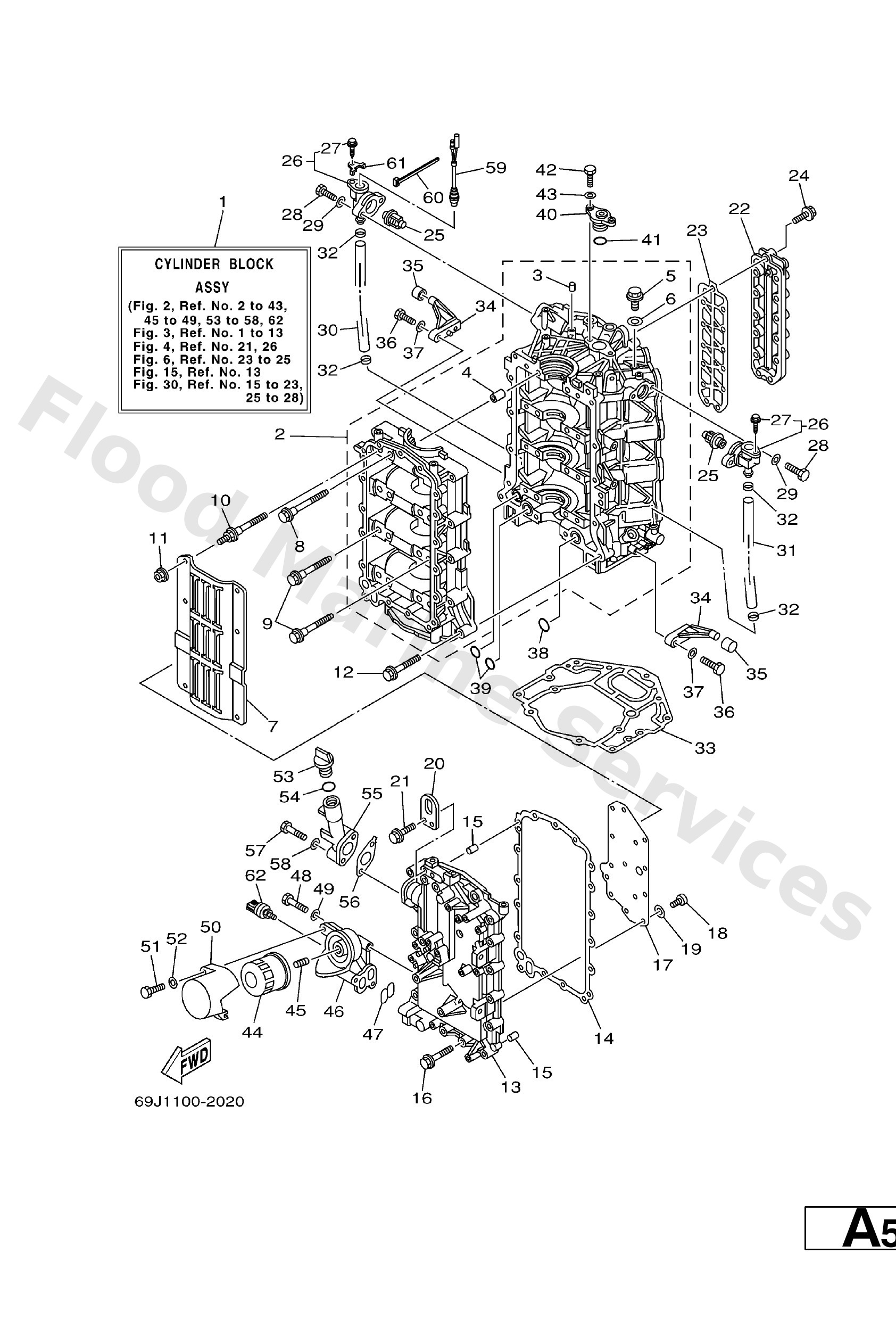

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9181418001
Pin, dowel
Loading…
↗
5
9034014M06
Plug, straight screw(62y)
Loading…
↗
6
9043014115
Gasket (663)
Loading…
↗
7
69J1512300
Plate, buffle 1
Loading…
↗
8
69J1518700
Bolt
Loading…
↗
9
69J1548100
Bolt 1
Loading…
↗
10
69J1548200
Bolt 2
Loading…
↗
11
9570706500
Nut, flange(4mv)
Loading…
↗
12
9011908M66
Bolt, with washer
Loading…
↗
14
69J1545100
Gasket, crankcase cover 1
Loading…
↗
16
9011908009
Bolt, with washer
Loading…
↗
17
69J1116800
-
Loading…
↗
18
9850704008
Screw, pan head(jg1)
Loading…
↗
19
9290704600
Washer(jf2)
Loading…
↗
20
69J1111900
Hanger, engine
Loading…
↗
21
9011906MA2
Bolt, with washer
Loading…
↗
23
69J1131B00
Gasket, cover
Loading…
↗
24
9011906MA4
Bolt, with washer
Loading…
↗
25
67F1241100
Thermostat
Loading…
↗
27
9010906M86
Bolt
Loading…
↗
28
9709506025
Bolt
Loading…
↗
29
9299506600
Washer, plain (646)
Loading…
↗
30
69J1243A00
Hose 1
Loading…
↗
31
69J1243E00
Hose 2
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
33
69J1135100
Gasket, cylinder
Loading…
↗
34
67F427610094
Stopper
Loading…
↗
35
68F4453300
Damper, upper mount rubber
Loading…
↗
38
9321025552
O-ring (22f)
Loading…
↗
39
9321019MJ1
O-ring
Loading…
↗
40
69J113130094
Plug, blind
Loading…
↗
41
9321025647
O-ring (7or)
Loading…
↗
42
9709506020
Bolt(7u8)
Loading…
↗
44
69J1344000
Element assembly, oil cleaner
Loading…
↗
45
69J1285800
Bolt, union
Loading…
↗
46
69J134460094
Connector
Loading…
↗
47
69J1347700
Gasket
Loading…
↗
48
9709506045
Bolt, hexagon
Loading…
↗
50
69J1344700
Cover, oil element
Loading…
↗
51
9709506040
Bolt (682)
Loading…
↗
53
6G81536300
Plug, oil
Loading…
↗
54
9321024M79
O-ring
Loading…
↗
55
69J15319001S
Joint
Loading…
↗
56
69J15364A0
Gasket, oil plug
Loading…
↗
59
69J8256000
Thermo switch assembly
Loading…
↗
61
6E98258800
Plate
Loading…
↗
62
69J8365100
Sender, oil pressure
Loading…
↗
