FT25BET (2002)
CYLINDER. CRANKCASE 1

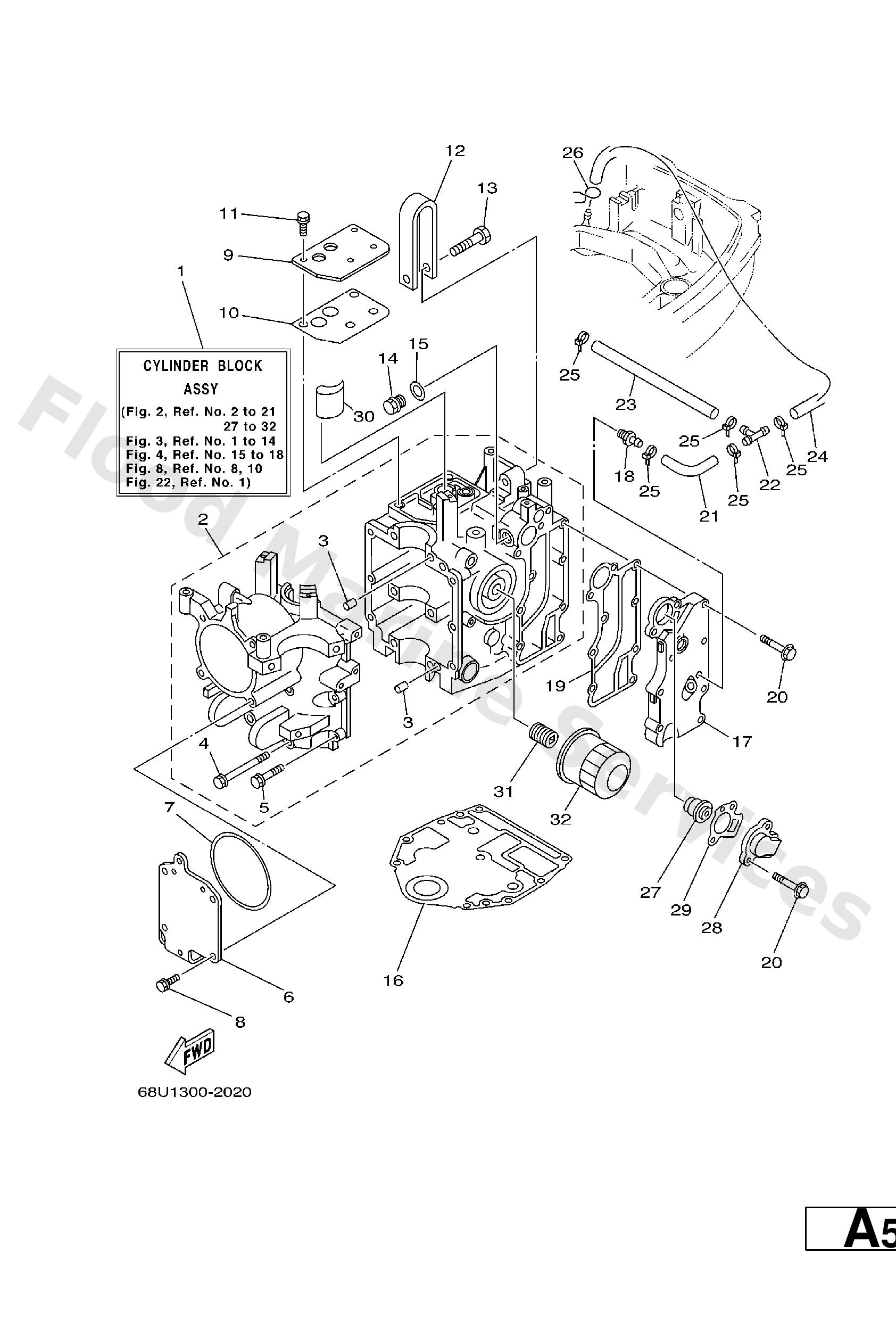

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
99530--08012
Pin, dowel(6g8)
Loading…
↗
4
90119--08M01
Bolt, with washer(62y)
Loading…
↗
5
90119--06MA5
Bolt, with washer
Loading…
↗
6
65W--15121--00
Crankcase 2
Loading…
↗
7
65W--15663--00
Seal
Loading…
↗
8
65W--12228--00
Bolt
Loading…
↗
9
65W1116801
-
Loading…
↗
10
65W1116901
Gasket, breather cover
Loading…
↗
12
65W--11119--00
2−
Loading…
↗
13
90105--08M87
Bolt, washer based
Loading…
↗
14
90340--14M06
Plug, straight screw(62y)
Loading…
↗
15
90430--14115
Gasket (663)
Loading…
↗
16
65W--11351--00
Gasket, cylinder
Loading…
↗
18
62Y1248100
Pipe 1
Loading…
↗
19
65W--41114--00
Gasket, exhaust outer cover
Loading…
↗
21
90445--09068
Hose (l420)
Loading…
↗
22
688--24378--00
Pipe, joint
Loading…
↗
23
9044509095
Hose (L215)
Loading…
↗
24
90445--09105
Hose (l420)
Loading…
↗
25
90465--11M10
Clamp
Loading…
↗
26
90467--08004
Clip, pipe 6162435600
Loading…
↗
27
6G81241102
Thermostat
Loading…
↗
28
6H3--12413--00--1S
Cover, thermostat
Loading…
↗
29
62Y--12414--00
Gasket, cover
Loading…
↗
30
65W--13286--00
Cleaner
Loading…
↗
31
90401--20M00
Bolt, union(62y)
Loading…
↗
32
5GH--13440--00
Element assembly, oil cleaner
Loading…
↗
