FT50CEHD (2003)
CYLINDER. CRANKCASE 1

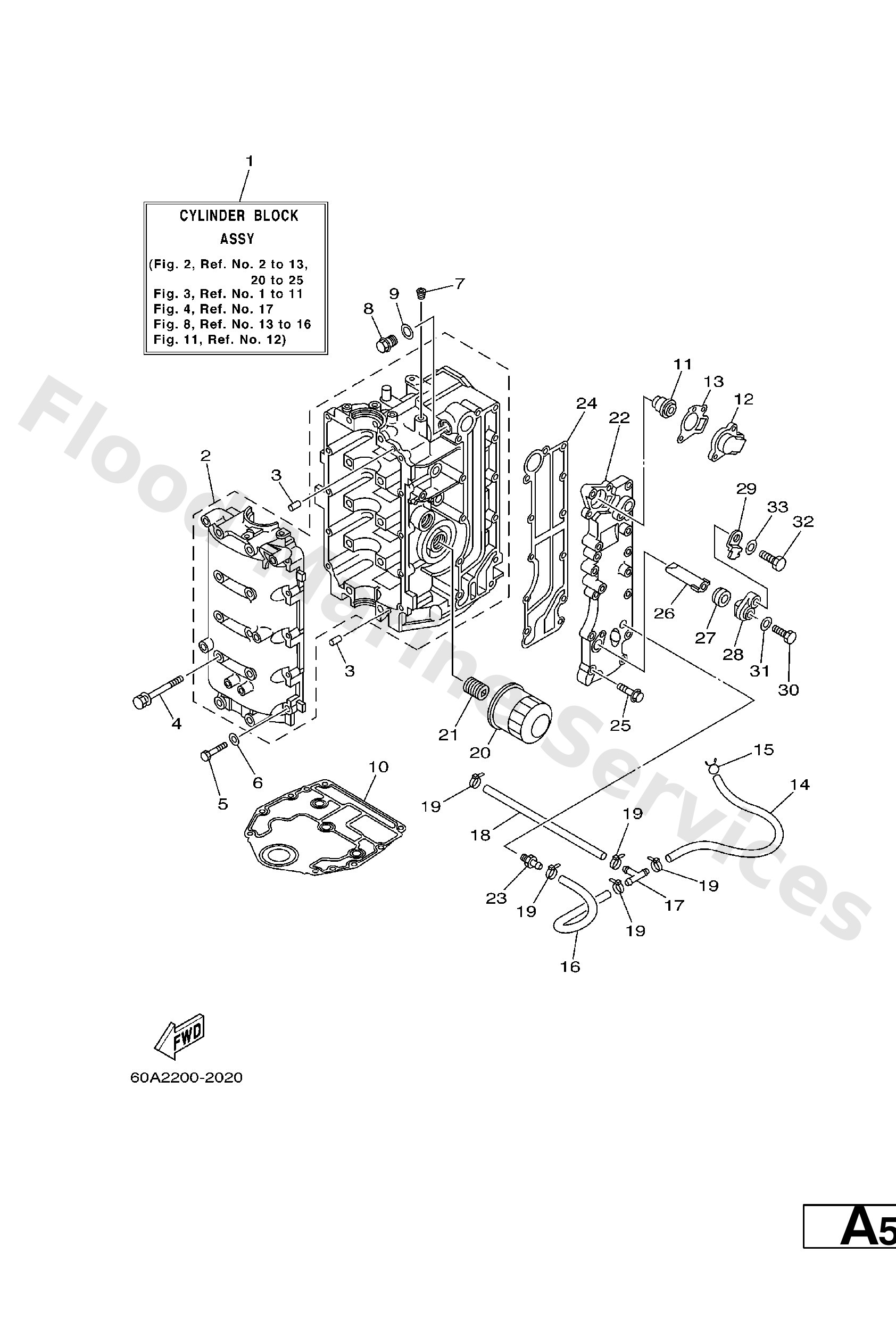

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
90119−08M01
Bolt, with washer(62y)
Loading…
↗
5
97013−06035
Bolt(3rv)
Loading…
↗
6
92903−06600
Washer, plain (646)
Loading…
↗
7
90344−51003
Plug, taper screw
Loading…
↗
8
90340−14M06
Plug, straight screw(62y)
Loading…
↗
9
90430−14115
Gasket (663)
Loading…
↗
10
67C−11351−00
Gasket, cylinder
Loading…
↗
11
6G8−12411−02
Thermostat
Loading…
↗
13
62Y−12414−00
Gasket, cover
Loading…
↗
14
90445−09105
Hose (l420)
Loading…
↗
15
90467−08M18
Clip
Loading…
↗
16
90445−09068
Hose (l420)
Loading…
↗
17
688−24378−00
Pipe, joint
Loading…
↗
18
90445−09095
Hose (L215)
Loading…
↗
19
90465−11M10
Clamp
Loading…
↗
20
5GH−13440−00
Element assembly, oil cleaner
Loading…
↗
21
90401−20M00
Bolt, union(62y)
Loading…
↗
23
62Y−12481−10
Pipe 1
Loading…
↗
24
62Y−41114−00
Gasket, exhaust outer cover
Loading…
↗
25
90119−06MA5
Bolt, with washer
Loading…
↗
26
62Y−11325−00
Anode
Loading…
↗
27
66M−11328−00
Grommet, anode
Loading…
↗
28
66M−11327−00−94
Cover, anode
Loading…
↗
29
66M−12535−00
Plate
Loading…
↗
30
97095−05012
Bolt, hexagon
Loading…
↗
31
92995−05600
Washer, plain (646)
Loading…
↗
32
97095−06020
Bolt(7u8)
Loading…
↗
33
92995−06600
Washer, plain (646)
Loading…
↗
