Yamaha Outboard Parts - CYLINDER. CRANKCASE 1 - FT60BET (2003) | Flood Marine

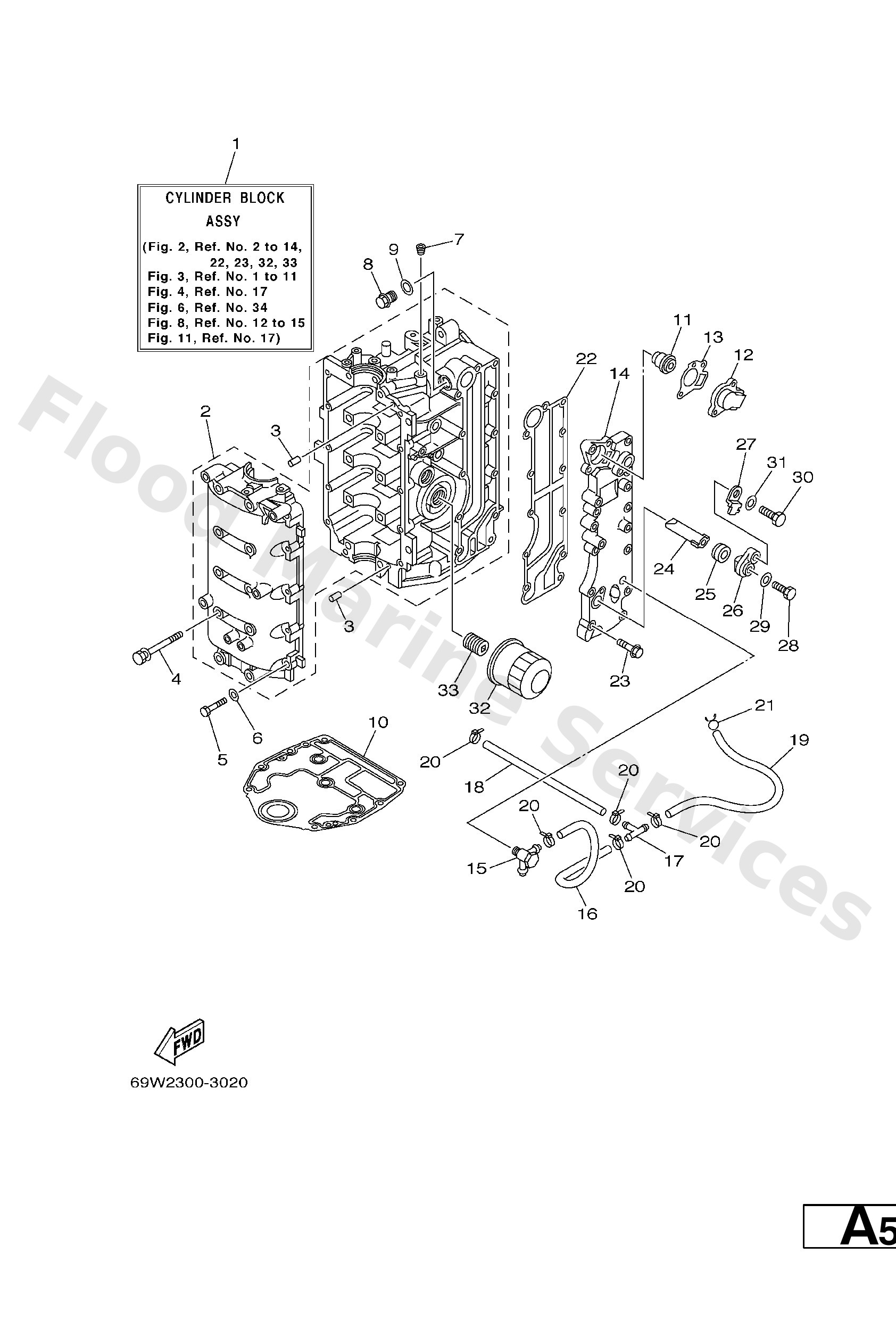

Diagram: CYLINDER. CRANKCASE 1

Diagram

Parts List

Reference
Description
Price


3
93606−12019
Pin, dowel (614)
Loading…

↗
4
90119−08M01
Bolt, with washer(62y)
Loading…

↗
5
97013−06035
Bolt(3rv)
Loading…

↗
6
92903−06600
Washer, plain (646)
Loading…

↗
7
90344−51003
Plug, taper screw
Loading…

↗
8
90340−14M06
Plug, straight screw(62y)
Loading…

↗
9
90430−14115
Gasket (663)
Loading…

↗
10
67C−11351−00
Gasket, cylinder
Loading…

↗
11
6G8−12411−02
Thermostat
Loading…

↗
13
62Y−12414−00
Gasket, cover
Loading…

↗
15
62Y−11372−01 FLUSHING KIT
Nipple, hose
Loading…

↗
16
90445−09068
Hose (l420)
Loading…

↗
17
688−24378−00
Pipe, joint
Loading…

↗
18
90445−09095
Hose (L215)
Loading…

↗
19
90445−09105
Hose (l420)
Loading…

↗
20
90465−11M10
Clamp
Loading…

↗
21
90467−08M18
Clip
Loading…

↗
22
62Y−41114−00
Gasket, exhaust outer cover
Loading…

↗
23
90119−06MA5
Bolt, with washer
Loading…

↗
24
62Y−11325−00
Anode
Loading…

↗
25
66M−11328−00
Grommet, anode
Loading…

↗
27
66M−12535−00
Plate
Loading…

↗
28
97095−05012
Bolt, hexagon
Loading…

↗
29
92995−05600
Washer, plain (646)
Loading…

↗
30
97095−06020
Bolt(7u8)
Loading…

↗
31
92995−06600
Washer, plain (646)
Loading…

↗
32
5GH−13440−00
Element assembly, oil cleaner
Loading…

↗
33
90401−20M00
Bolt, union(62y)
Loading…

↗
