FT8DMH (2003)
CYLINDER. CRANKCASE 1

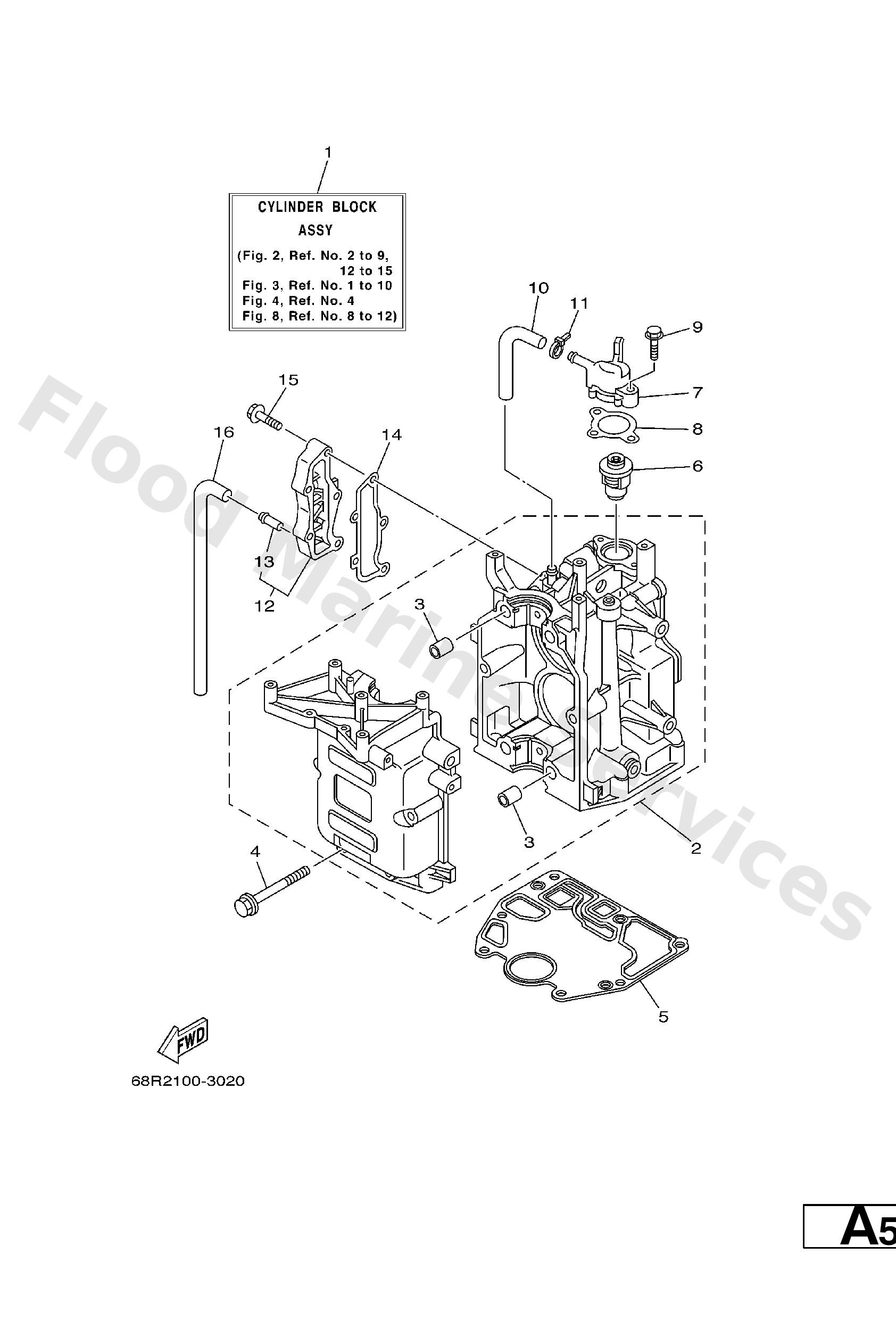

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
99530−12016
Pin, dowel
Loading…
↗
4
90119−08M29
Bolt, with washer
Loading…
↗
5
68T−11351−00
Gasket, cylinder
Loading…
↗
6
66M−12411−00
Thermostat
Loading…
↗
8
6G8−12414−A0
Gasket, cover
Loading…
↗
9
90119−06MA2
Bolt, with washer
Loading…
↗
10
68T−12481−00
Pipe 1
Loading…
↗
11
90465−11M10
Clamp
Loading…
↗
13
6E9−24378−00
Pipe, Joint 4
Loading…
↗
14
68T−41114−A0
Gasket, exhaust outer cover
Loading…
↗
15
90119−06MA3
Bolt, with washer
Loading…
↗
16
68T−12482−00
Pipe 2
Loading…
↗
