Z150QETO (2002)
CYLINDER. CRANKCASE 1

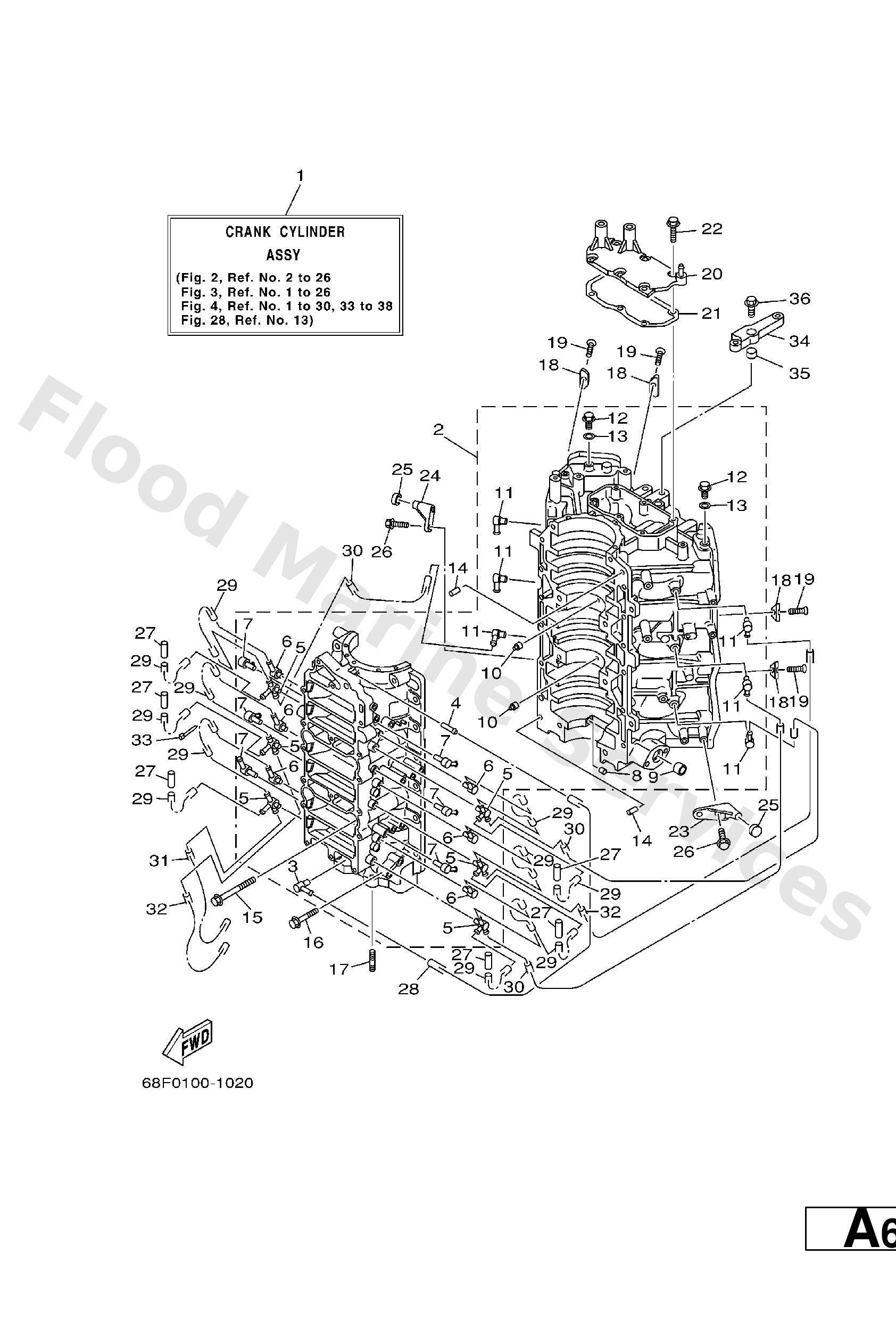

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E5--11372--00
Nipple, hose
Loading…
↗
4
624--14485--00
Pipe, joint
Loading…
↗
5
68F1137200
2−
Loading…
↗
6
650--11370--00
Check valve assembly
Loading…
↗
7
68F1355200
Nozzle
Loading…
↗
8
90384--06M07
Bush, bimetal formed(6r3)
Loading…
↗
9
90384--14M09
Bush, bimetal formed(6r3)
Loading…
↗
10
663--11518--01
Lock, bearing
Loading…
↗
11
646--11370--00
Check valve assembly
Loading…
↗
12
90340--14M00
Plug, straight screw(62y)
Loading…
↗
13
90430--14115
Gasket (663)
Loading…
↗
14
93608--12063
Pin, dowel (626)
Loading…
↗
15
90105--10M20
Bolt (6e5)
Loading…
↗
16
90119--08M94
Bolt, with washer
Loading…
↗
17
90116--08M45
Bolt, stud (6e5)
Loading…
↗
18
6E5--11325--00
Anode
Loading…
↗
19
98780--04015
Screw, flat head(ga5)
Loading…
↗
21
68F1138100
Gasket 1
Loading…
↗
22
90119--06MA2
Bolt, with washer
Loading…
↗
25
68F--44533--00
Damper, upper mount rubber
Loading…
↗
27
90445--07M03
Hose (l200)
Loading…
↗
28
90445--07M10
Hose (L510)
Loading…
↗
29
90445--07MA6
Hose (l200)
Loading…
↗
30
90445--07MA4
Hose (l390)
Loading…
↗
31
90445--07M45
Hose (l390)
Loading…
↗
32
90445--07M27
Hose (l390)
Loading…
↗
33
90464--07M20
Clamp(6h0)
Loading…
↗
34
68F1378200
Stay
Loading…
↗
35
90387--08M31
Collar
Loading…
↗
36
9011008M04
Bolt, hexagon socket head
Loading…
↗
