225DETO (2003)
CYLINDER. CRANKCASE 2

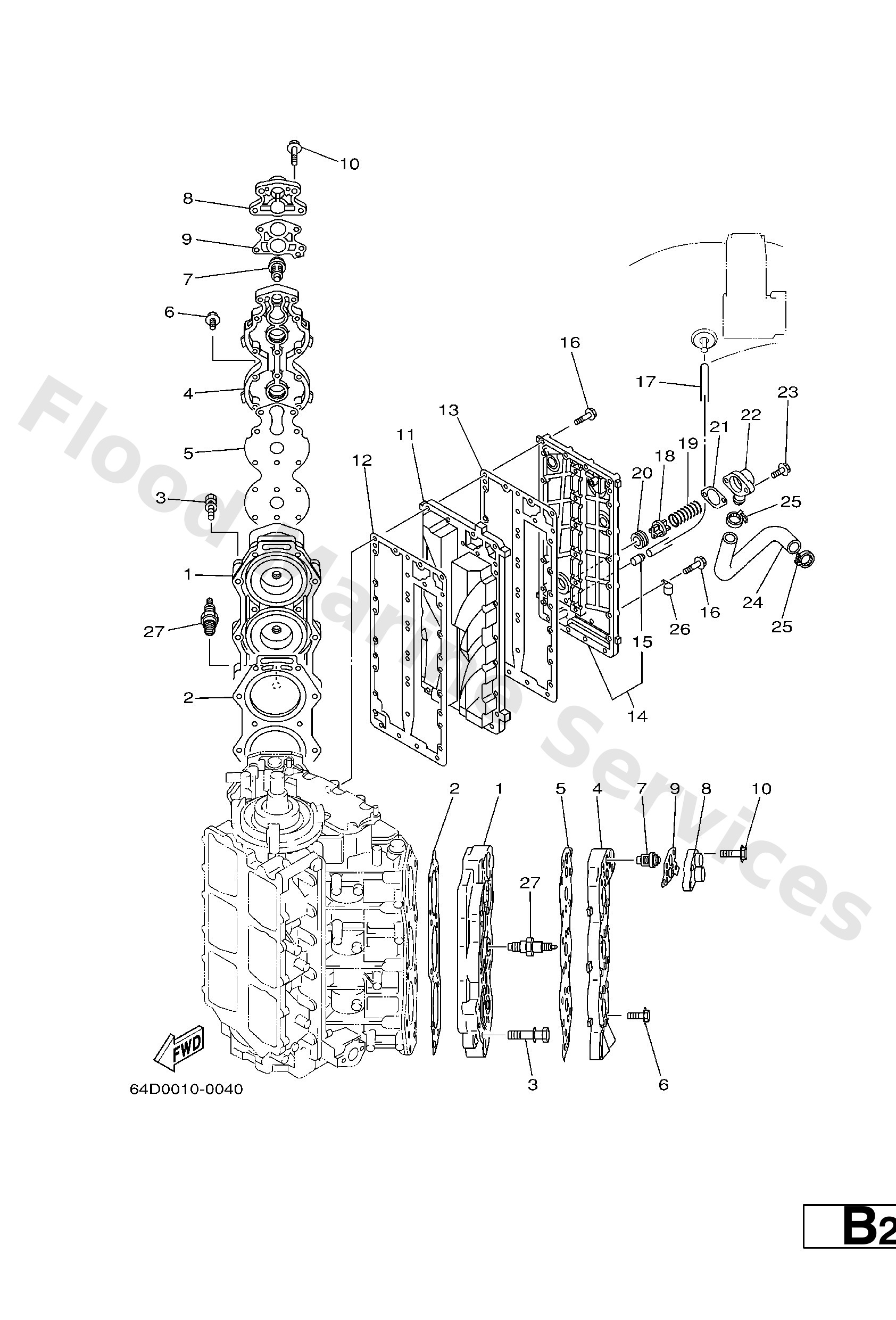

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
64E−11111−00−1S
Head, cylinder 1
Loading…
↗
2
6G5−11181−A2
Gasket, cylinder head 1
Loading…
↗
3
90119−08MA8
Bolt, with washer
Loading…
↗
4
6G5−11191−00−1S
Cover, cylinder head 1
Loading…
↗
5
6G5−11193−A0
Gasket, head cover 1
Loading…
↗
6
90119−06MA4
Bolt, with washer
Loading…
↗
7
6E5−12411−30
Thermostat
Loading…
↗
8
688−12413−00−1S
Cover, thermostat
Loading…
↗
9
688−12414−A1
Gasket, cover
Loading…
↗
10
90119−06MA6
Bolt, with washer
Loading…
↗
11
64D−41111−00−1S
Inner cover, exhaust
Loading…
↗
12
6G5−41112−A1
Gasket, exhaust inner cover
Loading…
↗
13
6G5−41114−A0
Gasket, exhaust inner cover
Loading…
↗
14
6R3−41113−00−1S
Outer cover, exhaust
Loading…
↗
15
650−24378−00
Pipe, joint 2
Loading…
↗
16
90119−06MA5
Bolt, with washer
Loading…
↗
17
90445−09097
Hose (l1500)
Loading…
↗
18
6G5−12416−00
Valve, pressure control
Loading…
↗
19
90501−16M11
Spring, compression (688)
Loading…
↗
20
90480−20M05
Grommet (688)
Loading…
↗
21
6G5−11382−A1
Gasket 2
Loading…
↗
22
6G5−11372−00−1S
Cover, bypass 2
Loading…
↗
23
90119−06MA2
Bolt, with washer
Loading…
↗
24
6G5−12576−00
Hose 1
Loading…
↗
25
90465−13M18
Clamp
Loading…
↗
26
90465−06M86
Clamp
Loading…
↗
27
94702−00247
Plug, spark (br8hs-10)
Loading…
↗
