250AETO (2002)
CYLINDER. CRANKCASE 2

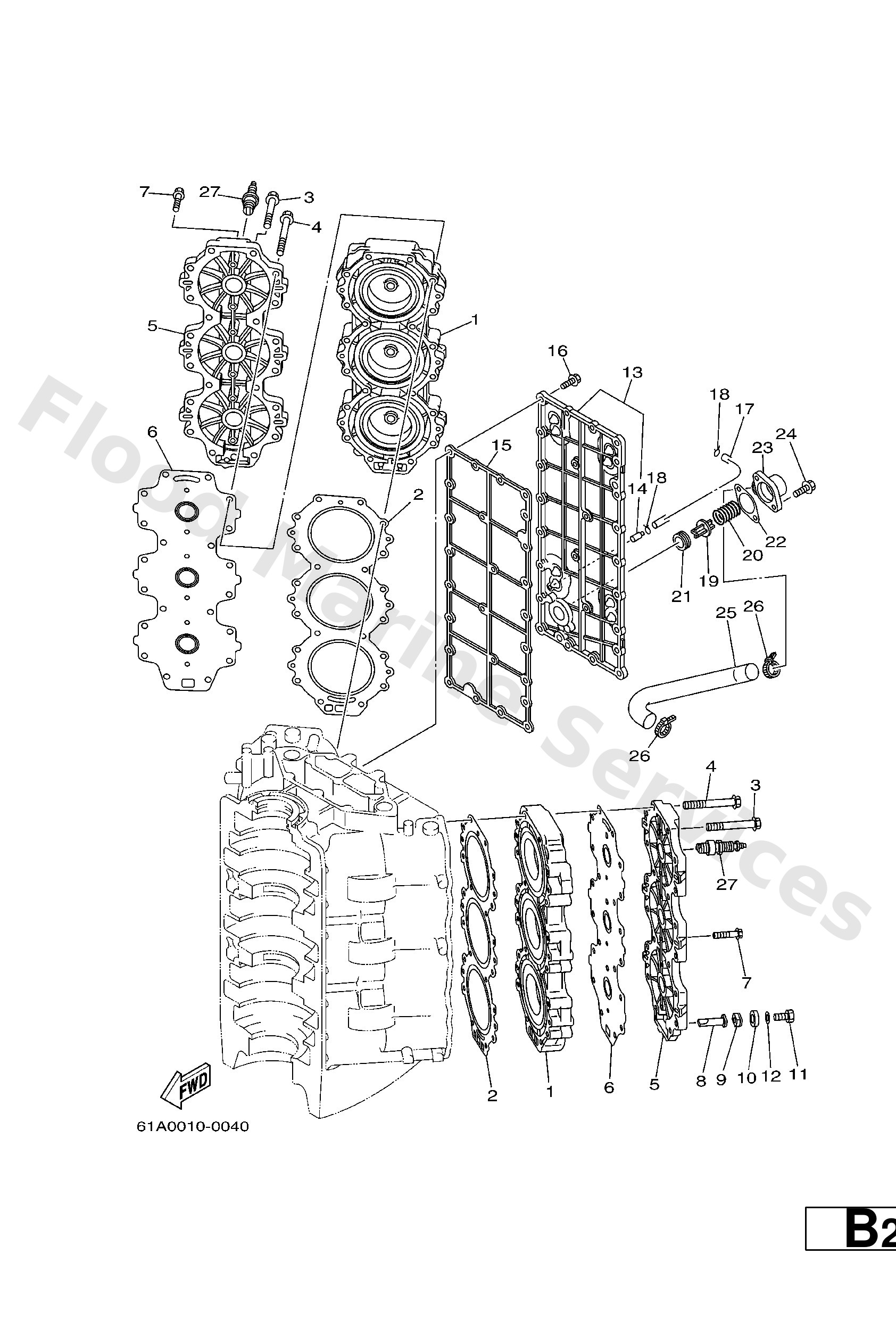

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
62J−11111−01−1S
Head, cylinder 1
Loading…
↗
2
69L−11181−00
Gasket, cylinder head 1
Loading…
↗
3
90119−08MA5
Bolt, with washer
Loading…
↗
4
90119−08M99
Bolt, with washer
Loading…
↗
5
61A−11191−00−1S
Cover, cylinder head 1
Loading…
↗
6
61A−11193−A1
Gasket, head cover 1
Loading…
↗
7
90119−06MA5
Bolt, with washer
Loading…
↗
8
6J8−11325−00
Anode
Loading…
↗
9
6H3−11328−00
Grommet, anode
Loading…
↗
10
6H3−11327−00−1S
Cover, anode
Loading…
↗
11
97013−06016
Bolt, hexagon deep recess
Loading…
↗
12
92903−06600
Washer, plain (646)
Loading…
↗
13
61A−41113−00−1S
Outer cover, exhaust
Loading…
↗
14
650−24378−00
Pipe, joint 2
Loading…
↗
15
61A−41112−A0
Gasket, exhaust inner cover
Loading…
↗
16
90119−06MA3
Bolt, with washer
Loading…
↗
17
61A−24312−00
Pipe 2
Loading…
↗
18
90467−08004
Clip, pipe 6162435600
Loading…
↗
19
6G5−12416−00
Valve, pressure control
Loading…
↗
20
90501−16M11
Spring, compression (688)
Loading…
↗
21
90480−20M05
Grommet (688)
Loading…
↗
22
6G5−11382−A1
Gasket 2
Loading…
↗
23
6G5−11372−00−1S
Cover, bypass 2
Loading…
↗
24
90119−06MA2
Bolt, with washer
Loading…
↗
25
61A−12576−00
Hose 1
Loading…
↗
26
90465−13M18
Clamp
Loading…
↗
27
94702−00247
Plug, spark (br8hs-10)
Loading…
↗
