250BETO (2002)
CYLINDER. CRANKCASE 2

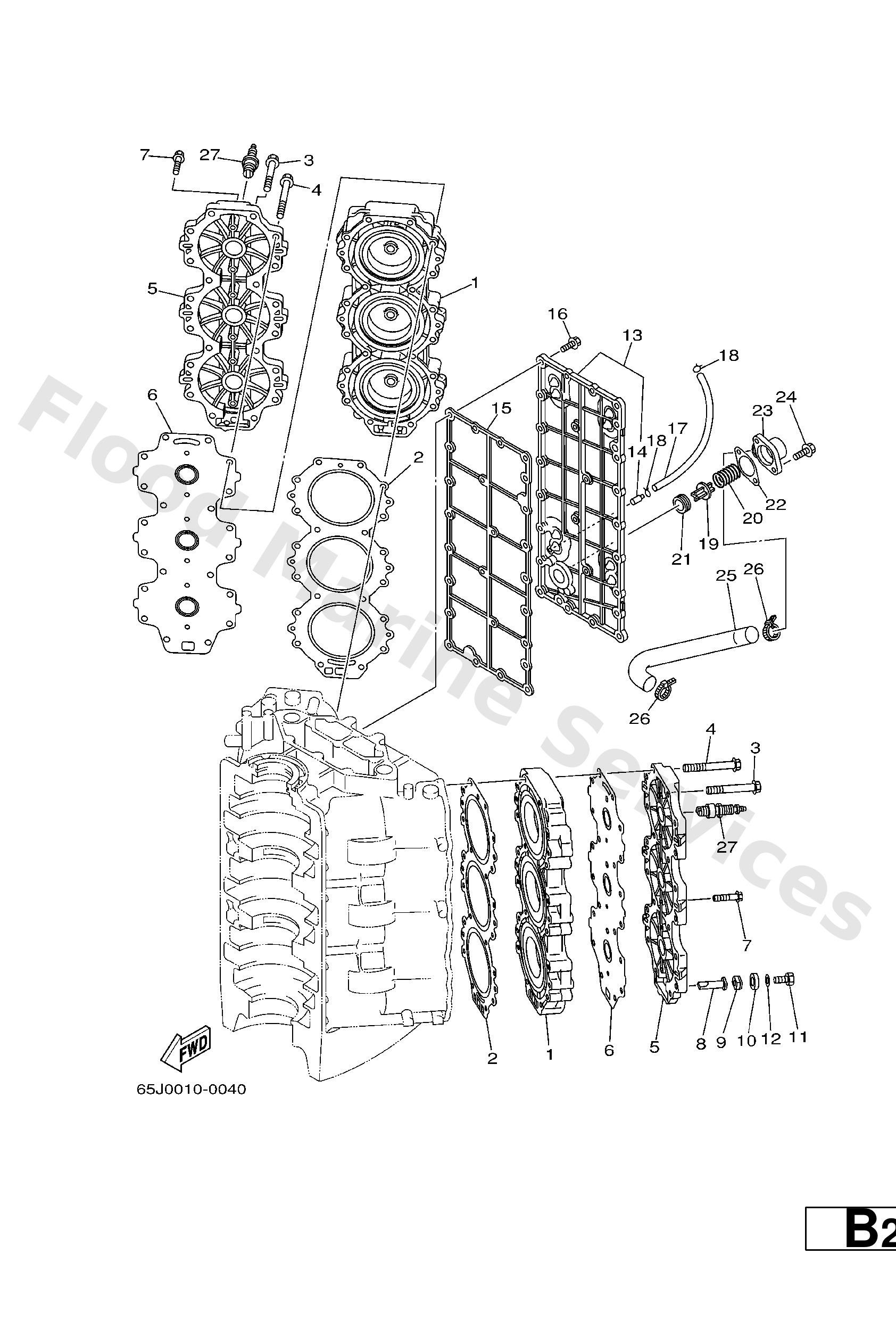

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
62J11111011S
Head, cylinder 1
Loading…
↗
2
69L1118100
Gasket, cylinder head 1
Loading…
↗
3
90119--08MA5
Bolt, with washer
Loading…
↗
4
9011908M99
Bolt, with washer
Loading…
↗
5
61A11191001S
Cover, cylinder head 1
Loading…
↗
6
61A--11193--A1
Gasket, head cover 1
Loading…
↗
7
90119--06MA5
Bolt, with washer
Loading…
↗
8
6J8--11325--00
Anode
Loading…
↗
9
6H3--11328--00
Grommet, anode
Loading…
↗
10
6H311327001S
Cover, anode
Loading…
↗
11
97013--06016
Bolt, hexagon deep recess
Loading…
↗
12
92903--06600
Washer, plain (646)
Loading…
↗
13
61A41113001S
Outer cover, exhaust
Loading…
↗
14
650--24378--00
Pipe, joint 2
Loading…
↗
15
61A--41112--A0
Gasket, exhaust inner cover
Loading…
↗
16
90119--06MA3
Bolt, with washer
Loading…
↗
17
90445--09M25
Hose (l1500)
Loading…
↗
18
90467--08004
Clip, pipe 6162435600
Loading…
↗
19
6G5--12416--00
Valve, pressure control
Loading…
↗
20
90501--16M11
Spring, compression (688)
Loading…
↗
21
90480--20M05
Grommet (688)
Loading…
↗
22
6G5--11382--A1
Gasket 2
Loading…
↗
23
6G5--11372--00--1S
Cover, bypass 2
Loading…
↗
24
90119--06MA2
Bolt, with washer
Loading…
↗
25
61A1257600
Hose 1
Loading…
↗
26
90465--13M18
Clamp
Loading…
↗
27
94702--00309
Plug, spark (br9hs-10)
Loading…
↗
