D150HETO (2002)
CYLINDER. CRANKCASE 2

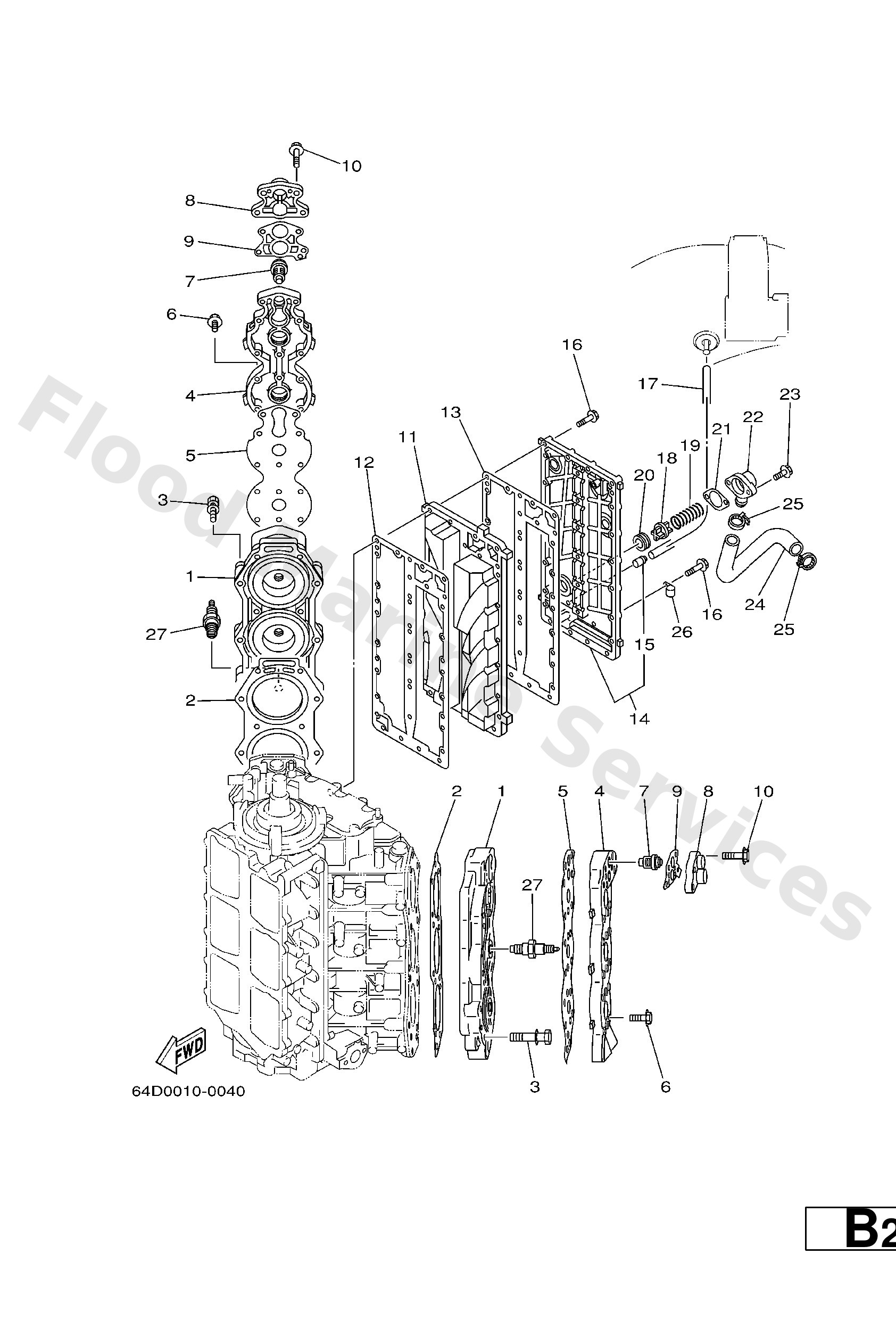

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
6G411111021S
Head, cylinder 1
Loading…
↗
2
6G511181A1
Gasket, cylinder head 1
Loading…
↗
3
9011908MA8
Bolt, with washer
Loading…
↗
4
6G511191001S
Cover, cylinder head 1
Loading…
↗
5
6G511193A0
Gasket, head cover 1
Loading…
↗
6
9011906MA4
Bolt, with washer
Loading…
↗
7
6E51241120
Thermostat
Loading…
↗
8
68812413001S
Cover, thermostat
Loading…
↗
9
68812414A1
Gasket, cover
Loading…
↗
10
9011906MA6
Bolt, with washer
Loading…
↗
11
64D41111001S
Inner cover, exhaust
Loading…
↗
12
6G541112A1
Gasket, exhaust inner cover
Loading…
↗
13
6G541114A0
Gasket, exhaust inner cover
Loading…
↗
14
6R341113001S
Outer cover, exhaust
Loading…
↗
15
6502437800
Pipe, joint 2
Loading…
↗
16
9011906MA5
Bolt, with washer
Loading…
↗
17
9044509097
Hose (l1500)
Loading…
↗
18
6G51241600
Valve, pressure control
Loading…
↗
19
9050116M11
Spring, compression (688)
Loading…
↗
20
9048020M05
Grommet (688)
Loading…
↗
21
6G511382A1
Gasket 2
Loading…
↗
22
6G511372001S
Cover, bypass 2
Loading…
↗
23
9011906MA2
Bolt, with washer
Loading…
↗
24
6G51257600
Hose 1
Loading…
↗
25
9046513M18
Clamp
Loading…
↗
26
9046506M86
Clamp
Loading…
↗
27
9470200247
Plug, spark (br8hs-10)
Loading…
↗
