F4MHB (2003)
CYLINDER. CRANKCASE 2

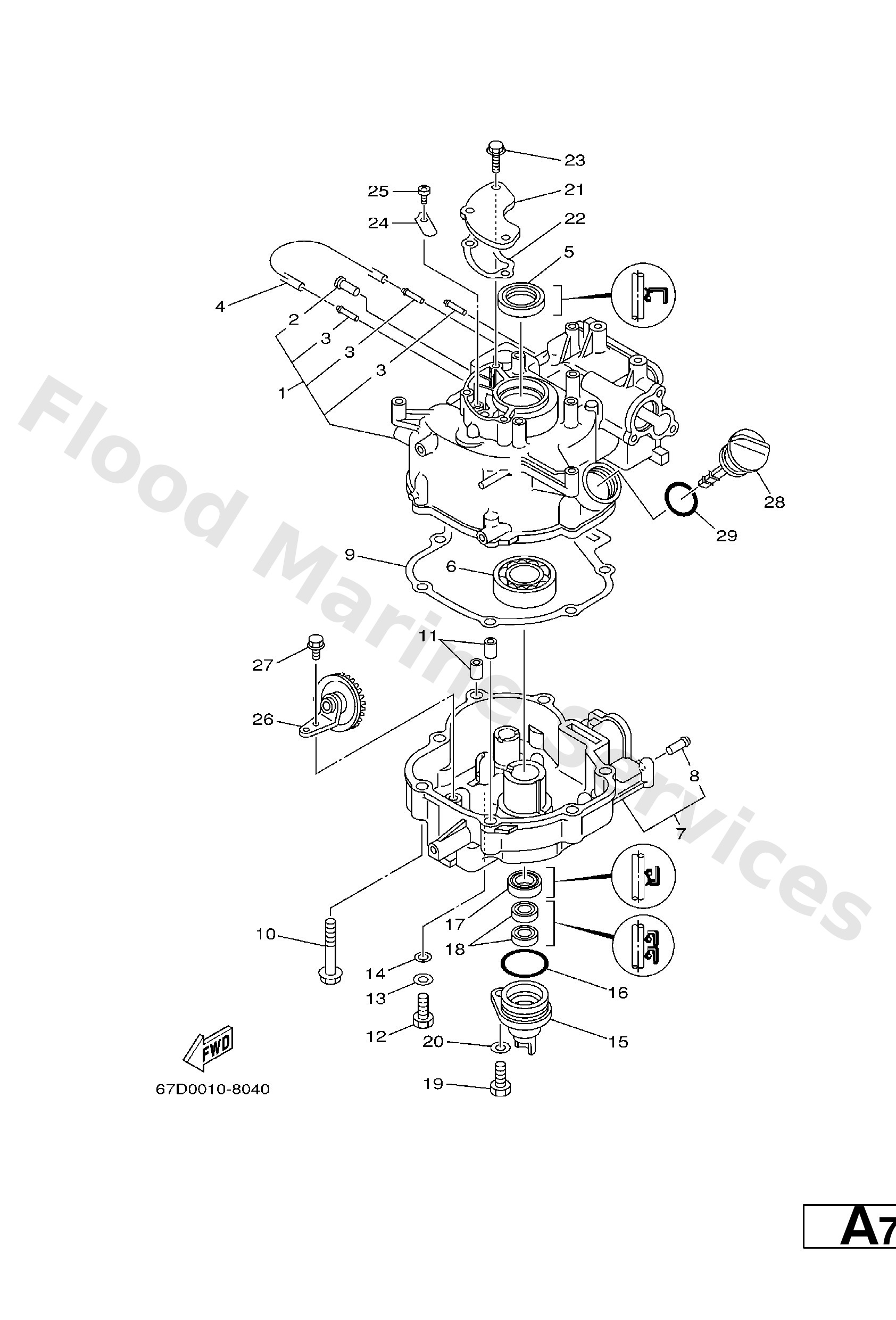

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
68D−E1311−01−94
Cylinder 1
Loading…
↗
2
650−24378−00
Pipe, joint 2
Loading…
↗
3
6H1−14485−00
Pipe, joint
Loading…
↗
4
90445−07806
Hose (l200)
Loading…
↗
5
93102−25090
Oil seal (25x40x5-256)
Loading…
↗
6
93306−205YD
Bearing (6k8)
Loading…
↗
7
68D−E5111−00−94
Crankcase 1
Loading…
↗
9
68D−11351−A0
Gasket, cylinder
Loading…
↗
10
97575−08550
Bolt, with washer
Loading…
↗
11
99510−10114
Pin, dowel(3vd)
Loading…
↗
12
97095−08020
Bolt, hexagon
Loading…
↗
13
92995−08600
Washer, plain (663)
Loading…
↗
14
90201−08818
Washer
Loading…
↗
15
68D−E5396−00−5B
Housing, oil seal
Loading…
↗
16
93210−35537
O-ring
Loading…
↗
17
93102−20108
Oil seal
Loading…
↗
18
93102−10004
Oil seal
Loading…
↗
21
68D−E1168−00
4−
Loading…
↗
22
68D−E1169−A0
4−
Loading…
↗
23
90119−06M80
Bolt(gj3)
Loading…
↗
24
68D−E5346−00
4−
Loading…
↗
25
98503−04006
Screw, pan head (7h3)
Loading…
↗
26
68D−E3102−00
Gear unit assembly
Loading…
↗
27
95817−06012
Bolt, flange
Loading…
↗
28
68D−E5362−00
Plug, oil level
Loading…
↗
29
93210−24M79
O-ring
Loading…
↗
