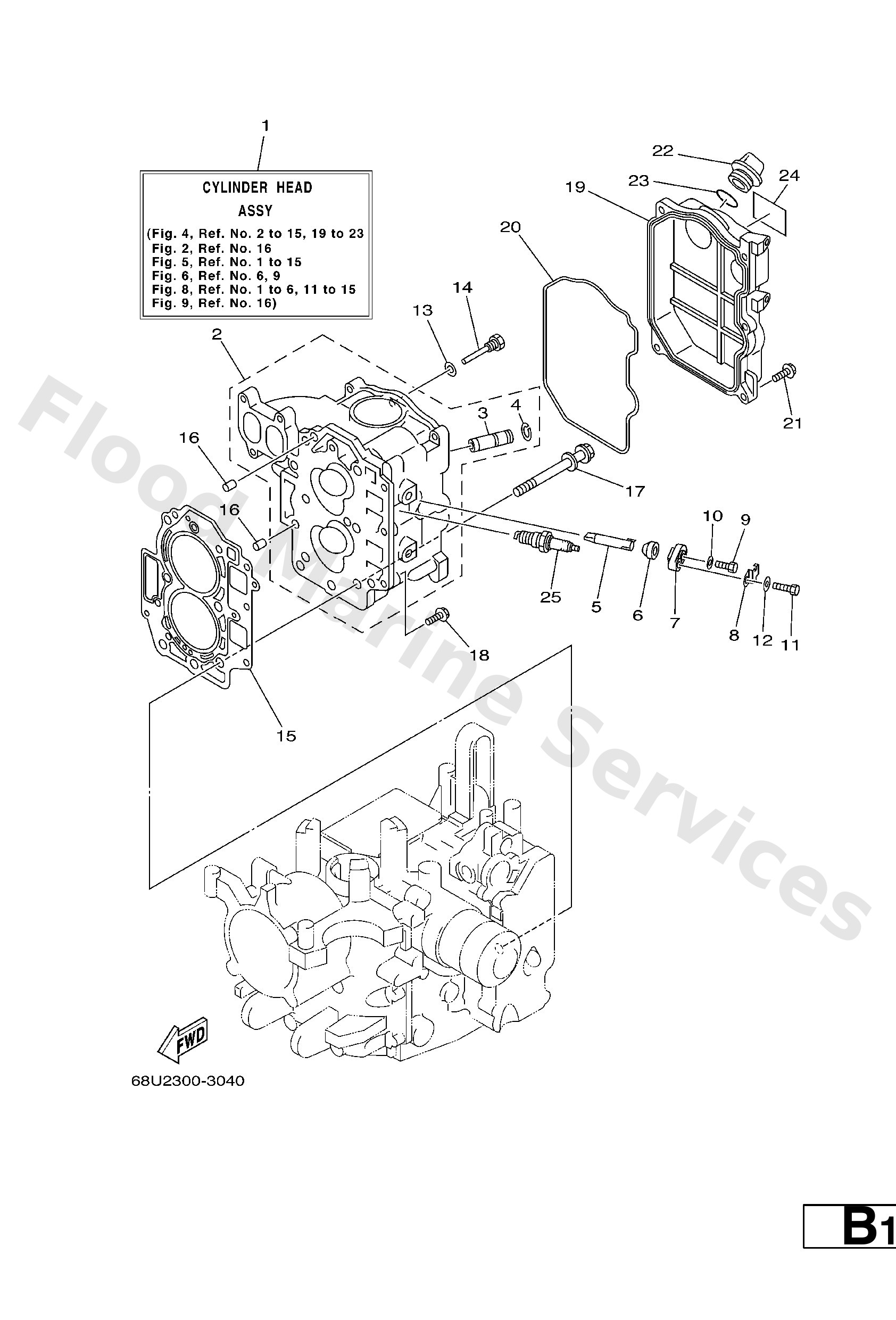

Diagram: CYLINDER. CRANKCASE 2

Diagram

Parts List

Reference
Description
Price


3
62Y−11133−10
Guide, valve 1
Loading…

↗
4
93450−09M01
Circlip (6g8)
Loading…

↗
5
62Y−11325−00
Anode
Loading…

↗
6
66M−11328−00
Grommet, anode
Loading…

↗
8
66M−12535−00
Plate
Loading…

↗
9
97095−05012
Bolt, hexagon
Loading…

↗
10
92995−05600
Washer, plain (646)
Loading…

↗
11
97095−06020
Bolt(7u8)
Loading…

↗
12
92995−06600
Washer, plain (646)
Loading…

↗
13
90430−06014
Gasket 256113960000
Loading…

↗
14
90109−06M65
Bolt(62y)
Loading…

↗
15
65W−11181−20
Gasket, cylinder head 1
Loading…

↗
16
99530−08012
Pin, dowel(6g8)
Loading…

↗
17
90119−09M00
Bolt, with washer(62y)
Loading…

↗
18
90119−06MA3
Bolt, with washer
Loading…

↗
20
65W−11356−00
Seal, cylinder 2
Loading…

↗
21
97595−06520
Bolt(7u8)
Loading…

↗
22
6G8−15363−00
Plug, oil
Loading…

↗
23
93210−24M79
O-ring
Loading…

↗
24
62Y−12138−60
Mark, Caution
Loading…

↗
25
94701−00375
Plug, spark (dpr6ea-9)(62y)
Loading…

↗
