Z250FETO (2003)
CYLINDER. CRANKCASE 2

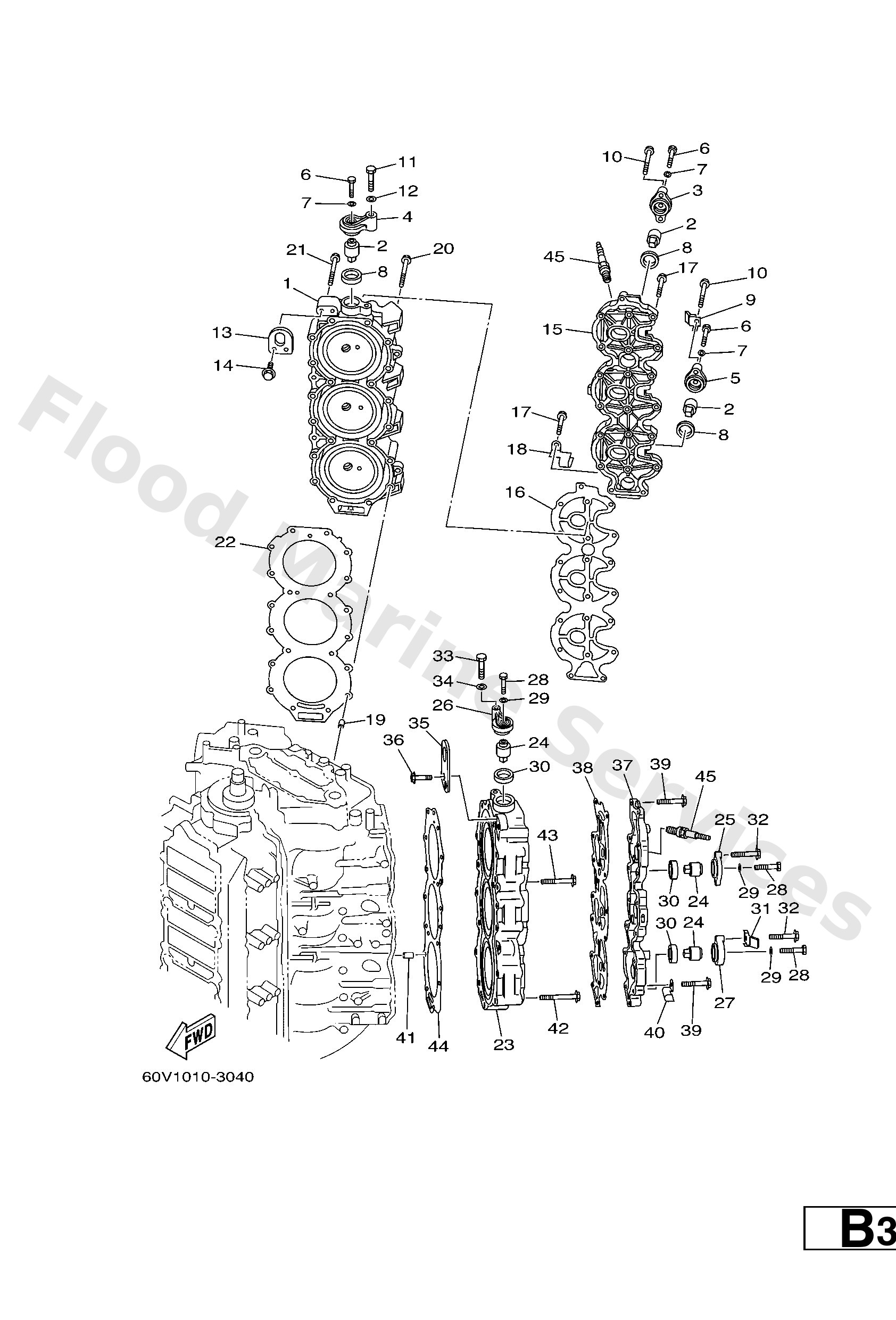

Diagram: CYLINDER. CRANKCASE 2
Parts List
Reference
Description
Price
1
60V11111001S
-
Loading…
↗
2
67F1132500
Anode
Loading…
↗
3
67F113270094
Anode cover assembly
Loading…
↗
4
69J113270094
Anode cover assembly
Loading…
↗
5
60V113270094
Anode cover assembly
Loading…
↗
6
9707506020
Bolt(7u8)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
67F1132800
Grommet, anode
Loading…
↗
9
60V1253500
Plate
Loading…
↗
10
9757508550
Bolt, with washer
Loading…
↗
11
9707508035
Bolt(70w)
Loading…
↗
12
9299508600
Washer, plain (663)
Loading…
↗
13
68F1111900
Hanger, engine
Loading…
↗
14
9011906MA2
Bolt, with washer
Loading…
↗
15
60V11191001S
-
Loading…
↗
16
60V1119300
Gasket, head cover 1
Loading…
↗
17
9011906MA4
Bolt, with washer
Loading…
↗
18
68F8391900
Clamp, harness
Loading…
↗
19
9959010114
Pin, dowel
Loading…
↗
20
9011908MA5
Bolt, with washer
Loading…
↗
21
9011908MA8
Bolt, with washer
Loading…
↗
22
60V1118100
Gasket, cylinder head 1
Loading…
↗
23
60V11121001S
Head, cylinder 2
Loading…
↗
35
69J1111E00
Hanger, engine 2
Loading…
↗
37
60V11192001S
Cover, cylinder head 2
Loading…
↗
45
9470200405
Plug, spark (bkr6eku)
Loading…
↗
