LZ250DETO (2003)
CYLINDER. CRANKCASE 3

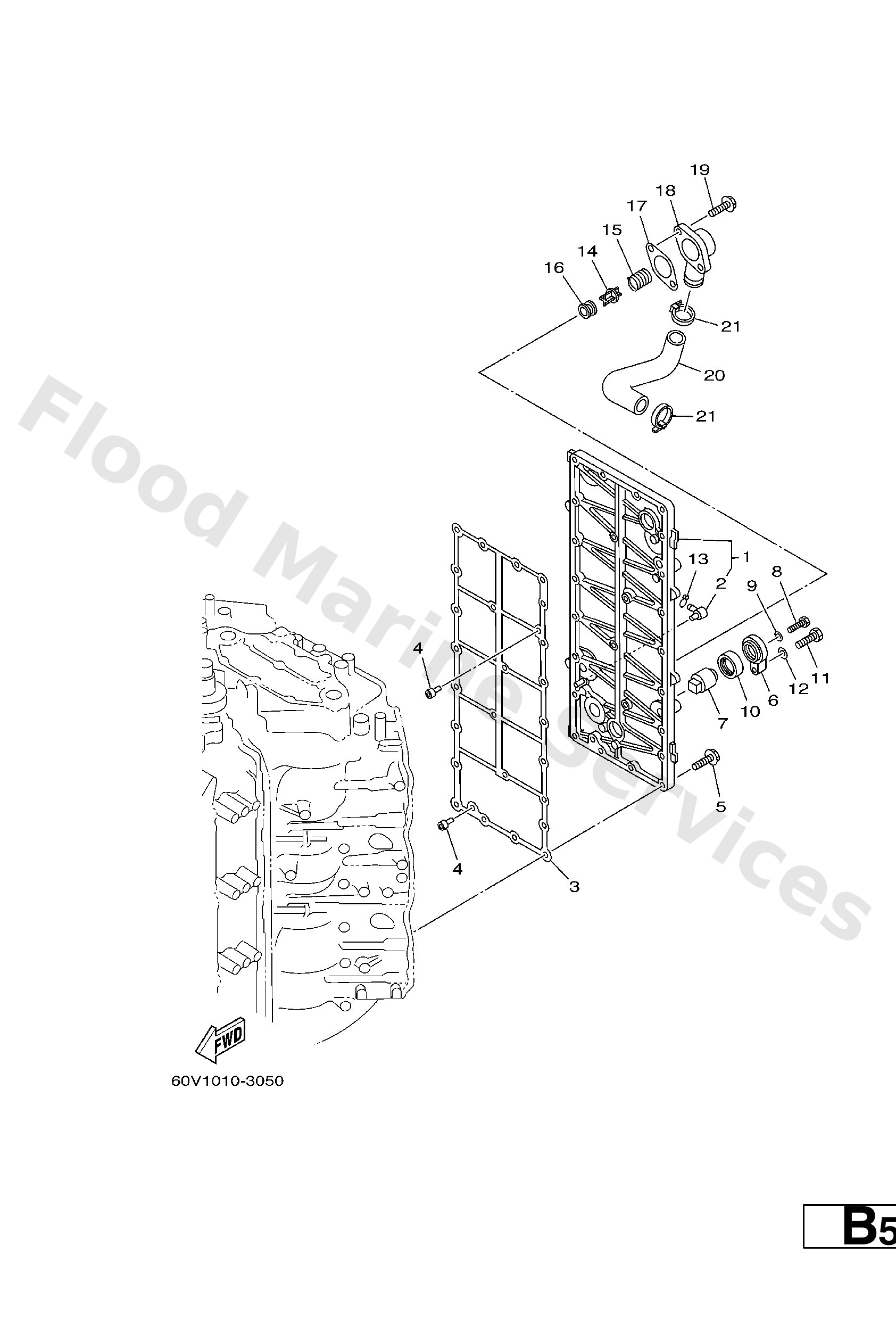

Diagram: CYLINDER. CRANKCASE 3
Parts List
Reference
Description
Price
1
60V−41113−00−94
Outer cover, exhaust
Loading…
↗
2
676−11372−00
Nipple, hose
Loading…
↗
3
60V−41112−00
Gasket, exhaust inner cover
Loading…
↗
4
60V−41267−00
Bushing, joint
Loading…
↗
5
90119−06MA3
Bolt, with washer
Loading…
↗
6
60V−11327−00−94
Anode cover assembly
Loading…
↗
7
67F−11325−00
Anode
Loading…
↗
8
97075−06020
Bolt(7u8)
Loading…
↗
9
92995−06600
Washer, plain (646)
Loading…
↗
10
67F−11328−00
Grommet, anode
Loading…
↗
11
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
12
92995−08600
Washer, plain (663)
Loading…
↗
13
90467−08004
Clip, pipe 6162435600
Loading…
↗
14
6G5−12416−00
Valve, pressure control
Loading…
↗
15
90501−16M11
Spring, compression (688)
Loading…
↗
16
90480−20M05
Grommet (688)
Loading…
↗
17
60V−11382−A0
Gasket 2
Loading…
↗
18
6G5−11372−00−1S
Cover, bypass 2
Loading…
↗
19
90119−06MA2
Bolt, with washer
Loading…
↗
20
61A−12576−00
Hose 1
Loading…
↗
21
90465−13M18
Clamp
Loading…
↗
