Yamaha Outboard Parts - Capot, Section Dalimentation - 3AMH (1996) | Flood Marine

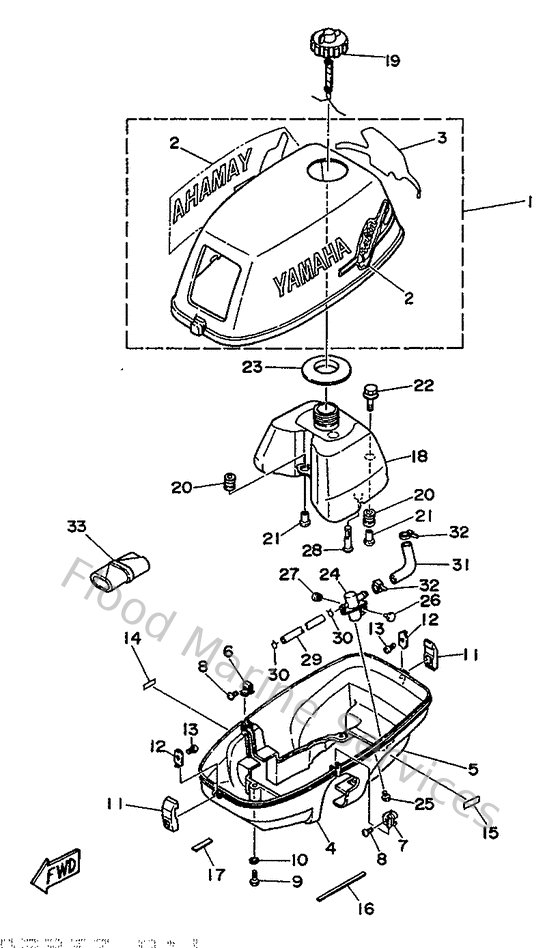

Diagram: Capot, Section Dalimentation

Diagram

Parts List

Reference
Description
Price


4
6L5427111100
Cowling, bottom
Loading…

↗
5
6L5427121200
Cowling, bottom
Loading…

↗
6
6L5427740000
Stay, apron 1
Loading…

↗
7
6L5427750000
Stay, apron 2
Loading…

↗
11
6L5426470000
Holder, clamp band
Loading…

↗
12
6EGG28230000
Plate, stop
Loading…

↗
15
6L5245910000
Emblem, Fuel Cock
Loading…

↗
16
6L5426620000
Damper
Loading…

↗
17
6L5426630000
Damper
Loading…

↗
18
6L5241110200
Tank, fuel
Loading…

↗
19
6L5246102100
Cap assembly
Loading…

↗
20
6A0823170000
Damper, ignition coil
Loading…

↗
21
624425420000
Collar
Loading…

↗
23
6L5246410000
Gasket, cap 1
Loading…

↗
24
6L5245006000
Fuel cock assembly 1
Loading…

↗
26
6L5441962000
Indicator 3
Loading…

↗
27
6L5441972000
Indicator 4
Loading…

↗
28
6L5242510000
Strainer 1
Loading…

↗
29
6L5243110000
Pipe, fuel 2
Loading…

↗
31
6L5243120000
Pipe 2
Loading…

↗
33
656W28100200
Tool kit
Loading…

↗
