Yamaha Outboard Parts - Capot Infprieur - 20DMHO (1996) | Flood Marine

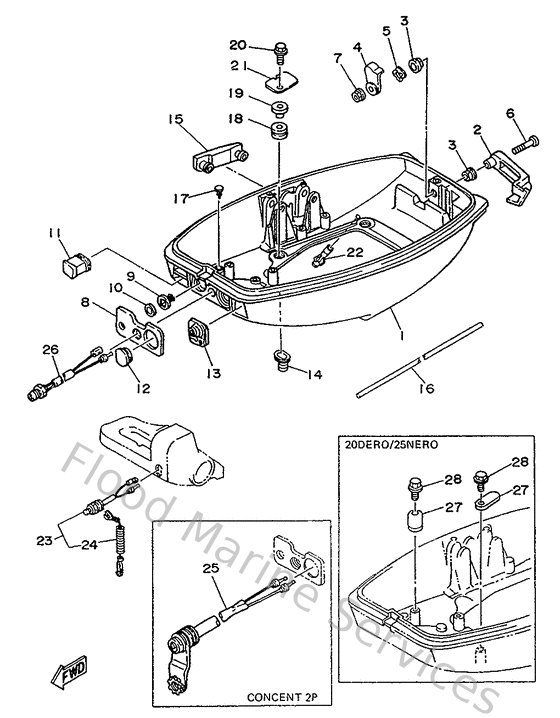

Diagram: Capot Infprieur

Diagram

Parts List

Reference
Description
Price


1
6L242711024D
Cowling, bottom 1
Loading…

↗
2
6L242815004D
Lever, clamp
Loading…

↗
4
6L2428160000
Lever, clamp
Loading…

↗
8
6L242719A000
Panel, front lower
Loading…

↗
9
689412730000
Grommet
Loading…

↗
10
6J8412740000
Grommet 2
Loading…

↗
11
6L2427250000
Grommet
Loading…

↗
12
6G1427240000
Grommet
Loading…

↗
13
6L2427260100
Grommet
Loading…

↗
14
6G1427270000
Grommet
Loading…

↗
15
6L2427480100
Grommet
Loading…

↗
16
6L2427160000
Rubber seal 1
Loading…

↗
21
6L2427380100
Plate, fitting
Loading…

↗
22
6H3443910100
Nipple, hose
Loading…

↗
23
6E9825750200
Engine stop switch assembly
Loading…

↗
24
682825560000
Lanyard, stop switch
Loading…

↗
25
682843810000
2p concent 1
Loading…

↗
26
6J8854100000
Emergency signal light assembly
Loading…

↗
27
6E5825880000
Plate
Loading…

↗
