25JETO (1996)
Capot Infprieur

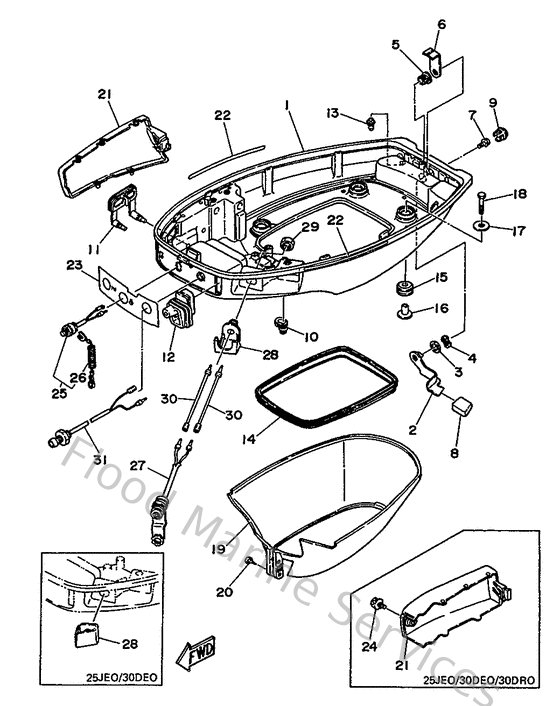

Diagram: Capot Infprieur
Parts List
Reference
Description
Price
2
6J842815004D
Lever, clamp
Loading…
↗
3
9020212M2500
Washer, plate(6j8)
Loading…
↗
4
902061205200
Washer, wave (666)
Loading…
↗
5
9038612M6100
Bush(6j8)
Loading…
↗
6
6J8428160000
Lever, clamp
Loading…
↗
7
958950601200
Bolt, flange deep recess
Loading…
↗
8
6J8428310000
Bushing
Loading…
↗
9
6J8427280100
Cap
Loading…
↗
10
6G1427270000
Grommet
Loading…
↗
11
6J8427240000
Grommet
Loading…
↗
12
6J8427260000
Grommet
Loading…
↗
13
6H3443910100
Nipple, hose
Loading…
↗
14
6J8427160000
Rubber seal 1
Loading…
↗
15
9048009M2100
Grommet (6e9)
Loading…
↗
16
9038706M4100
Coller (6e9)
Loading…
↗
17
902010641600
Washer, plate(663)
Loading…
↗
18
970800603000
Bolt(jf7)
Loading…
↗
19
6J8427410100
Apron
Loading…
↗
20
9016406M0100
Screw (6f5)
Loading…
↗
21
6J8427230100
Cover, bottom
Loading…
↗
22
6J8427350000
Protector
Loading…
↗
23
6J8427192000
Panel, front lower
Loading…
↗
24
6J8428460000
Screw
Loading…
↗
25
6E9825750200
Engine stop switch assembly
Loading…
↗
26
682825560000
Lanyard, stop switch
Loading…
↗
27
682843810000
2p concent 1
Loading…
↗
28
6J8427250100
Grommet
Loading…
↗
29
663825570000
Nut
Loading…
↗
30
6J8825530000
Extension, wire lead
Loading…
↗
31
6J8854100000
Emergency signal light assembly
Loading…
↗
