F20AM (1999)
Capot Infprieur

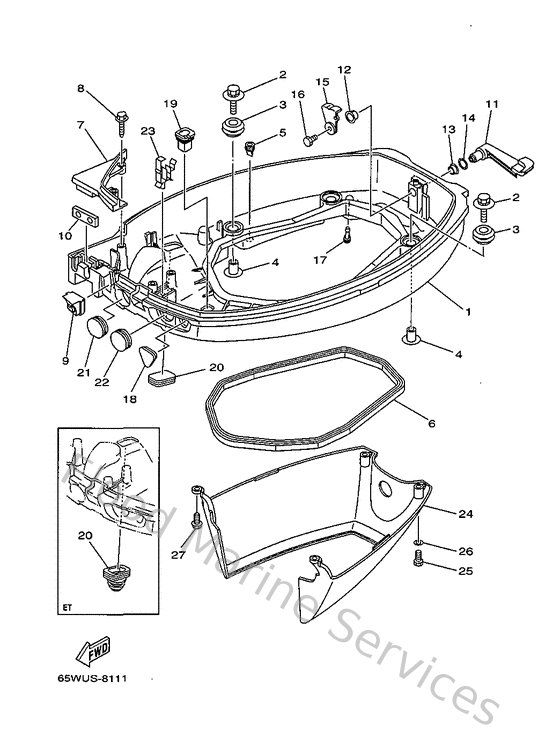

Diagram: Capot Infprieur
Parts List
Reference
Description
Price
1
65W42710014D
Bottom Cowling assembly
Loading…
↗
2
9011906M0800
Bolt, with washer
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M6900
Collar (688)
Loading…
↗
5
65W427170000
Rubber, seal 2
Loading…
↗
6
62Y427160000
Rubber seal 1
Loading…
↗
7
65W42738014D
Plate, fitting
Loading…
↗
8
9010906M8200
Bolt
Loading…
↗
9
65W427251000
Grommet
Loading…
↗
10
65W427270000
Grommet
Loading…
↗
11
65W42815014D
Lever, clamp 1
Loading…
↗
12
9038612M3700
Bushing (6f5)
Loading…
↗
13
9038612MA200
Bush
Loading…
↗
14
902061205200
Washer, wave (666)
Loading…
↗
15
6L2428160000
Lever, clamp
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
17
6H3443910100
Nipple, hose
Loading…
↗
18
65W263260000
Grommet
Loading…
↗
19
682427270000
Grommet
Loading…
↗
20
6H4427260000
Grommet
Loading…
↗
21
6G1427250000
Grommet
Loading…
↗
22
65W427260000
Grommet
Loading…
↗
23
9046525M5700
Clamp(63v)
Loading…
↗
24
65W427410100
Apron
Loading…
↗
25
970800601400
Bolt(gj3)
Loading…
↗
26
929900660000
Washer, plain (646)
Loading…
↗
27
9010906M8100
Bolt
Loading…
↗
