F45A (1998)
Capot Infprieur

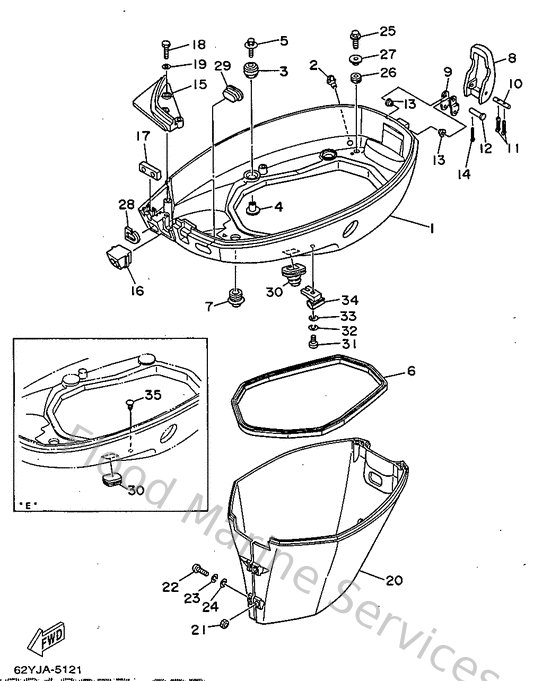

Diagram: Capot Infprieur
Parts List
Reference
Description
Price
1
62Y42711024D
Cowling, bottom
Loading…
↗
2
6H3443910100
Nipple, hose
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M6900
Collar (688)
Loading…
↗
5
9011906M0800
Bolt, with washer
Loading…
↗
6
62Y427160000
Rubber seal 1
Loading…
↗
7
6E5427240000
Grommet
Loading…
↗
8
62Y42828008D
Plate, clamp
Loading…
↗
9
62Y428150000
Lever, clamp
Loading…
↗
10
9024905M3000
Pin(62y)
Loading…
↗
11
914901601000
Pin, cotter
Loading…
↗
12
9024005M1900
Pin, clevis(62y)
Loading…
↗
13
903860500200
Bush 626412910000
Loading…
↗
15
62Y42738015B
Plate, fitting
Loading…
↗
16
62Y427250000
Grommet
Loading…
↗
17
62Y427270000
Grommet
Loading…
↗
18
970800602000
Bolt(7u8)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
62Y42741004D
Apron
Loading…
↗
21
953800660000
Nut(661)
Loading…
↗
22
978850602500
Screw, pan head(6b0)
Loading…
↗
23
929950610000
Washer(6a1)
Loading…
↗
25
958950601600
Bolt, flange deep recess
Loading…
↗
26
9048013M2400
Grommet (6e9)
Loading…
↗
27
9038706M4000
Collar
Loading…
↗
28
61N243290000
Seal
Loading…
↗
29
6H3427270000
Grommet
Loading…
↗
30
688427261000
Grommet
Loading…
↗
34
9046409M4300
Clamp(62y)
Loading…
↗
35
9033805M0300
Plug (6h1)
Loading…
↗
